Serial Camera Doorbell ML Application

Description

The Serial Camera Doorbell sample application uses the K351 serial camera sensor to capture a 500x500 RAW Bayer image along with a sequence of JPEG preroll images.

It detects a person in the field of view and, on detection, automatically sends 9 JPEG preroll images to provide context before the event. The JPEG preroll images are saved in the overlayed_frames subfolder inside video_stream_output (for example, C:\Users\<username>\video_stream_output or /home/<user>/video_stream_output).

Supported Boards

This application supports:

  • SR110_RDK

Select the defconfig that matches your target board, and the build system will pick the corresponding board-specific hardware setup from hw/<BOARD>/.

Prerequisites

Test Case Selection

Before building, choose the testcase defconfig that matches both your target board and the transfer mode you want to validate.

You can:

  • Select the required defconfig directly from the application’s configs/ directory.

  • Run make list_defconfigs from the application directory to list all supported defconfigs.

Available defconfigs:

  • sr110_rdk_cm55_serial_camera_door_bell_gpio_wakeup_defconfig

  • sr110_rdk_cm55_serial_camera_door_bell_timer_wakeup_defconfig

For this app, the default defconfig is:

  • sr110_rdk_cm55_serial_camera_door_bell_timer_wakeup_defconfig

Building and Flashing the Example using VS Code and CLI

Use the VS Code flow described in the SR110 guide and the VS Code Extension guide:

Build (VS Code):

  1. Open Build and Deploy → Build Configurations.

  2. Select serial_camera_door_bell in the Application dropdown.

  3. If needed, configure wakeup in uc_jpeg_preroll.c:

    • CONFIG_WAKEUP_TRIGGER = 1: timer-based wakeup (default)

    • CONFIG_WAKEUP_TRIGGER = 2: GPIO-based wakeup

  4. Build with Build (SDK + App) for the first build, or Build App for rebuilds.

Build (CLI):

  1. Build from the application directory itself:

    cd <sdk-root>/examples/vision_examples/uc_jpeg_preroll
export SRSDK_DIR=<sdk-root>
make <app_defconfig> BUILD=SRSDK

  2. For faster rebuilds when only app code changes, reuse the app-local installed SDK package:

    cd <sdk-root>/examples/vision_examples/uc_jpeg_preroll
export SRSDK_DIR=<sdk-root>
make build

  3. If this app has been exported to its own repository, use the same commands from that exported app directory after setting SRSDK_DIR to the SDK root.

CLI build outputs

The build process will produce the necessary .elf or .axf files for deployment with the installed package.

Flash and Image Generation (VS Code):

  1. Open the Astra MCU SDK VS Code Extension and connect to the Debug IC USB port on the Astra Machina Micro Kit.

  2. Generate firmware binaries using Build and Deploy → Image Conversion.

    • Select the required .axf or .elf file. If the use case is built using the VS Code extension, the file path will be auto-populated.

  3. Flash the application using Build and Deploy → Image Flashing.

    • Select SWD/JTAG as the interface.

    • Choose the respective image bins and click Run.

  4. Flash model binary door_bell_flash(384x512).bin at offset 0x629000.

    • Model location: examples/vision_examples/uc_jpeg_preroll/models/

Flash (CLI):

  1. Activate the SDK venv (required for image generation tools):

    # Linux/macOS
source <sdk-root>/.venv/bin/activate
# Windows PowerShell
.\.venv\Scripts\Activate.ps1

  2. Generate flash image:

    cd <sdk-root>/tools/srsdk_image_generator
python srsdk_image_generator.py \
  -B0 \
  -flash_image \
  -sdk_secured \
  -spk "<sdk-root>/tools/srsdk_image_generator/Inputs/spk_rc4_1_0_secure_otpk.bin" \
  -apbl "<sdk-root>/tools/srsdk_image_generator/Inputs/sr100_b0_bootloader_ver_0x012F_ASIC.axf" \
  -m55_image "<sdk-root>/examples/vision_examples/uc_jpeg_preroll/out/sr110_cm55_fw/release/sr110_cm55_fw.elf" \
  -flash_type "GD25LE128" \
  -flash_freq "67"

  3. Flash the firmware image:

    cd <sdk-root>
python tools/openocd/scripts/flash_xspi_tcl.py \
  --cfg_path tools/openocd/configs/sr110_m55.cfg \
  --image tools/srsdk_image_generator/Output/B0_Flash/B0_flash_full_image_GD25LE128_67Mhz_secured.bin \
  --erase-all

  4. Flash model binary:

    cd <sdk-root>
python tools/openocd/scripts/flash_xspi_tcl.py \
  --cfg_path tools/openocd/configs/sr110_m55.cfg \
  --image <path-to-door_bell_flash(384x512).bin> \
  --flash-offset 0x629000

Running the Application using VS Code Extension

Windows note: Ensure the USB drivers are installed for streaming. See the Zadig steps in
SR110 Build and Flash with VS Code.

  1. In VS Code, open Video Streamer from the Synaptics sidebar.

    Video Streamer

  2. For logging output, click SERIAL MONITOR and connect to the DAP logger port on J14.

    • To make it easier to identify, ensure only J14 is plugged in (not J13).

    • The logger port is not guaranteed to be consistent across OSes. As a starting point:

      • Windows: try the lower-numbered J14 COM port first.

      • Linux/macOS: try the higher-numbered J14 port first.

    • If you do not see logs after a reset, switch to the other J14 port.

  3. Serial camera doorbell application automatically connects to Video Streamer upon reset.

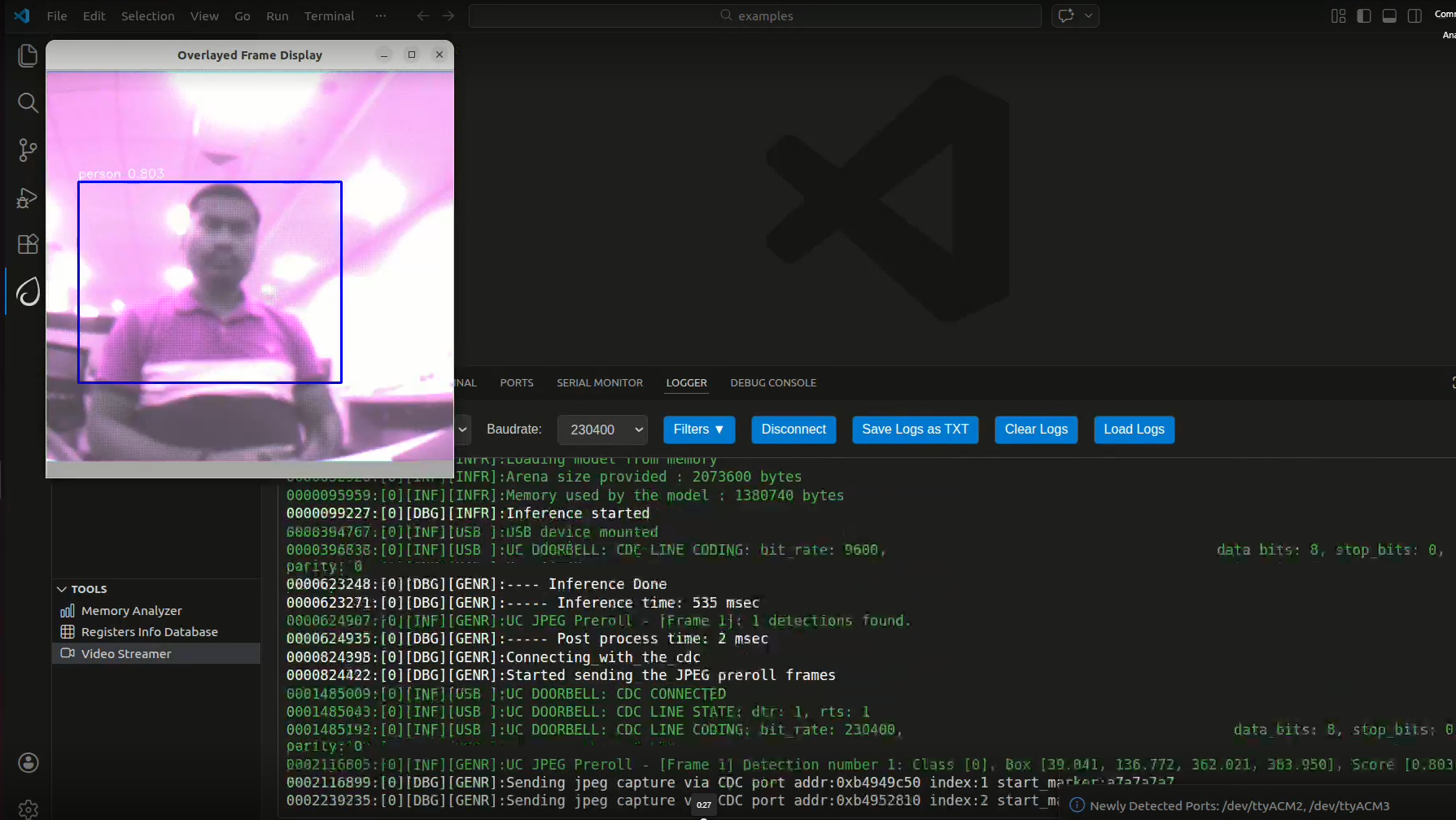

  4. On person detection, video streamer opens with the captured frame and preroll context images saved to video_stream_output/overlayed_frames.

    Video Streamer window

Wakeup Triggers

  • CONFIG_WAKEUP_TRIGGER = 1 (Timer): device wakes up every 10 seconds.

  • CONFIG_WAKEUP_TRIGGER = 2 (GPIO): use GPIO-based wakeup as configured in uc_jpeg_preroll.c.
