Doorbell ML Application

Overview

The Doorbell sample application integrates the UC_JPEG_PREROLL and IMAGE_STITCHING use cases to detect a person within the camera’s field of view and capture high-resolution Full HD (FHD) images upon detection.

Image Delivery Options

Captured images can be delivered in two ways:

Delivery Mode

Description

Tools for Visualization

USB CDC (to Host PC)

Sends images via USB CDC to a host PC.

SynaToolkit, VS Code Extension

SPI to Controller

Sends images over SPI to another Astra Machina Eval Kit acting as a controller; receives frames for logging.

Logger

Build Instructions

Prerequisites

Build Options

Method

Steps

Notes

VS Code Extension

Import SDK → Build or Clean SDK in “Imported Repos” → select configs (Application, Board, Compiler) → Build

GUI workflow; logs appear in VS Code terminal.

Native CLI

Run make cm55_doorbell_defconfig → make menuconfig (optional) → make

Suitable for native builds

Native Configuration and Build Steps

  1. Select Default Configuration

    make cm55_doorbell_defconfig

    This configuration uses CONFIG_WAKEUP_TRIGGER set to 1 (Timer-based wakeup).

  2. Configure WAKEUP_TRIGGER Navigate to: uc_jpeg_preroll.c change to CONFIG_WAKEUP_TRIGGER set to 2 for (GPIO-based wakeup)

  3. Build the Application The build process will generate the required .elf or .axf files for deployment.

    make build or make

Deployment and Execution

Setup and Flashing

  1. Open the Astra SRSDK VSCode Extension and connect to the Debug IC USB port on the Astra Machina Micro Kit. For detailed steps refer to the Quick Start Kit.

  2. Generate Binary Files

    • FW Binary generation

      • Navigate to AXF/ELF TO BIN → Bin Conversion in Astra SRSDK VSCode Extension

      • Load the generated sr110_cm55_fw.elf or sr110_cm55_fw.axf file

      • Click Run Image Generator to create the binary files

      • Refer to Astra SRSDK VSCode Extension User Guide.

    • Model Binary generation (to place the Model in Flash)

  3. Flash the Application

    To flash the application:

    • Navigate to IMAGE LOADING in the Astra SRSDK VSCode Extension.

    • Select SWD/JTAG as the service type.

    • Choose the respective image bins and click Flash Execute.

    • Flash the pre-generated model binary: door_bell_flash(384x512).bin. Due to memory constraints, need to burn the Model weights to Flash.

      • Location: examples/vision_examples/uc_jpeg_preroll/models/

      • Flash address: 0x629000

      • Calculation Note: Flash address is determined by the sum of the host_image size and the image_offset_SDK_image_B_offset (parameter, which is defined within NVM_data.json). It’s crucial that the resulting address is aligned to a sector boundary (a multiple of 4096 bytes).This calculated resulting address should then be assigned to the image_offset_Model_A_offset macro in your NVM_data.json file.

    • Flash the generated B0_flash_full_image_GD25LE128_67Mhz_secured.bin file.

    Refer to the Astra SRSDK VSCode Extension User Guide for detailed instructions on flashing.

Note:

The placement of the model (in SRAM or FLASH) is determined by its memory requirements. Models that exceed the available SRAM capacity, considering factors like their weights and the necessary tensor arena for inference, will be stored in FLASH.

Running the Application

Options

Method

Steps

SynaToolkit

Open Toolkit → Connect USB (SR110 App port) → Press Reset → View logs on DAP port

VS Code Extension

Open LOGGER tab → Select port & baud → Connect

💡 You can find detailed setup and usage instructions in the Astra SRSDK VSCode Extension User Guide.

Initial Setup

  • Press RSTN button on SR110_RDK.

Operation Flow

  • On detection → frame is streamed → device enters hibernation.

Wakeup Triggers

Trigger

Config

Behavior

Timer

CONFIG_WAKEUP_TRIGGER=1

Device wakes every 10 seconds.

GPIO

CONFIG_WAKEUP_TRIGGER=2

Jumper from GND → UART0 RX after 10s of hibernation.

SPI Pre-roll Use Case

Overview

The SPI Pre-roll feature enables UC_JPEG_PREROLL to capture JPEG pre-roll frames and stream them to a controller (receiver) over SPI.

  • Peripheral (Sender): The device that’s flashed with UC_JPEG_PREROLL acts as the SPI Peripheral device, that captures frames, packages them with headers/footers, and transmits them via SPI.

  • Controller (Receiver): The device that’s flashed with SPI_SAMPLE_APP acts as the SPI Controller device, that requests pre-roll frames, and validates CRC.

This mechanism ensures that when detection is triggered, the system can send pre-roll images that occurred before the detection event.

The SPI Pre-roll transfer follows a protocol as described in SPI Pre-roll Protocol

Configurations

Peripheral (Sender) Configurations

Run the Doorbell defconfig to apply the default settings for the doorbell use case. Enable SPI module by enabling MODULE_SPI_ENABLED and build the image. With the settings, the device will operate as the SPI pre-roll Peripheral (Sender).

make cm55_doorbell_defconfig
make menuconfig #Enable SPI and LOGGER_IF_UART_0
make

Remember enable LOGGER_IF_UART_0 before building the peripheral image with LOGGER_IF_UART_0 in the menuconfig.

Controller (Receiver) Configurations

Run the SPI Sample App defconfig to apply the default settings for the SPI Sample application. Enable SPI_PREROLL_TRANSFER in spi_sample_app.c and SPI_DOUBLE_BOARD_MODE in spi_sample_app.h and build the image. With these settings, the device will operate as the SPI pre-roll Controller (Receiver).

make cm55_spi_sample_app_defconfig
make

Hardware Setup

The following are the pins that are used for SPI Communication,

Controller Pins

  1. Pin 11 - SPI_MSTR_CLK (GPIO_22)

  2. Pin 12 - SPI_MSTR_CS (GPIO_21)

  3. Pin 13 - SPI_MSTR_MISO (GPIO_24)

  4. Pin 14 - SPI_MSTR_MOSI (GPIO_23)

Peripheral Pins

  1. Pin 7 - SPI_SLV_CLK (GPIO_6)

  2. pin 8 - SPI_SLC_CS (GPIO_8)

  3. pin 9 - SPI_SLV_MISO (GPIO_7)

  4. pin 10 - SPI_SLV_MOSI (GPIO_9)

Connections

  1. Pin 11 (SPI_MSTR_CLK) → Pin 7 (SPI_SLV_CLK)

  2. Pin 12 (SPI_MSTR_CS) → Pin 8 (SPI_SLV_CS)

  3. Pin 13 (SPI_MSTR_MISO) → Pin 9 (SPI_SLV_MISO)

  4. Pin 14 (SPI_MSTR_MOSI) → Pin 10 (SPI_SLV_MOSI)

Remember, The logs will be seen via UART 0. Enable UART 0 log via menuconfig. It is recommended to have the DAP SR110 not powered up because of SPI pin conflict in RDK.

Connection Images

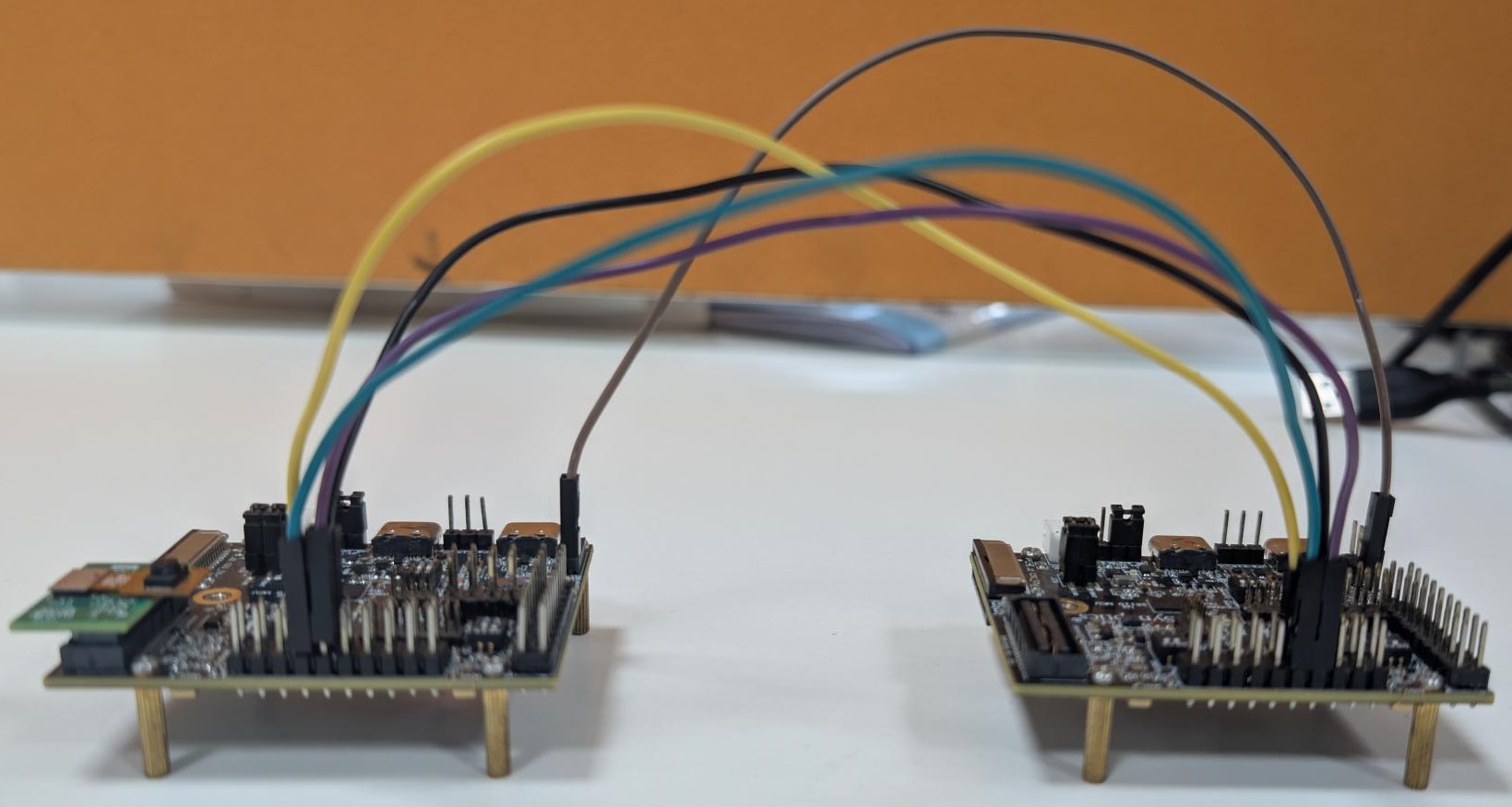

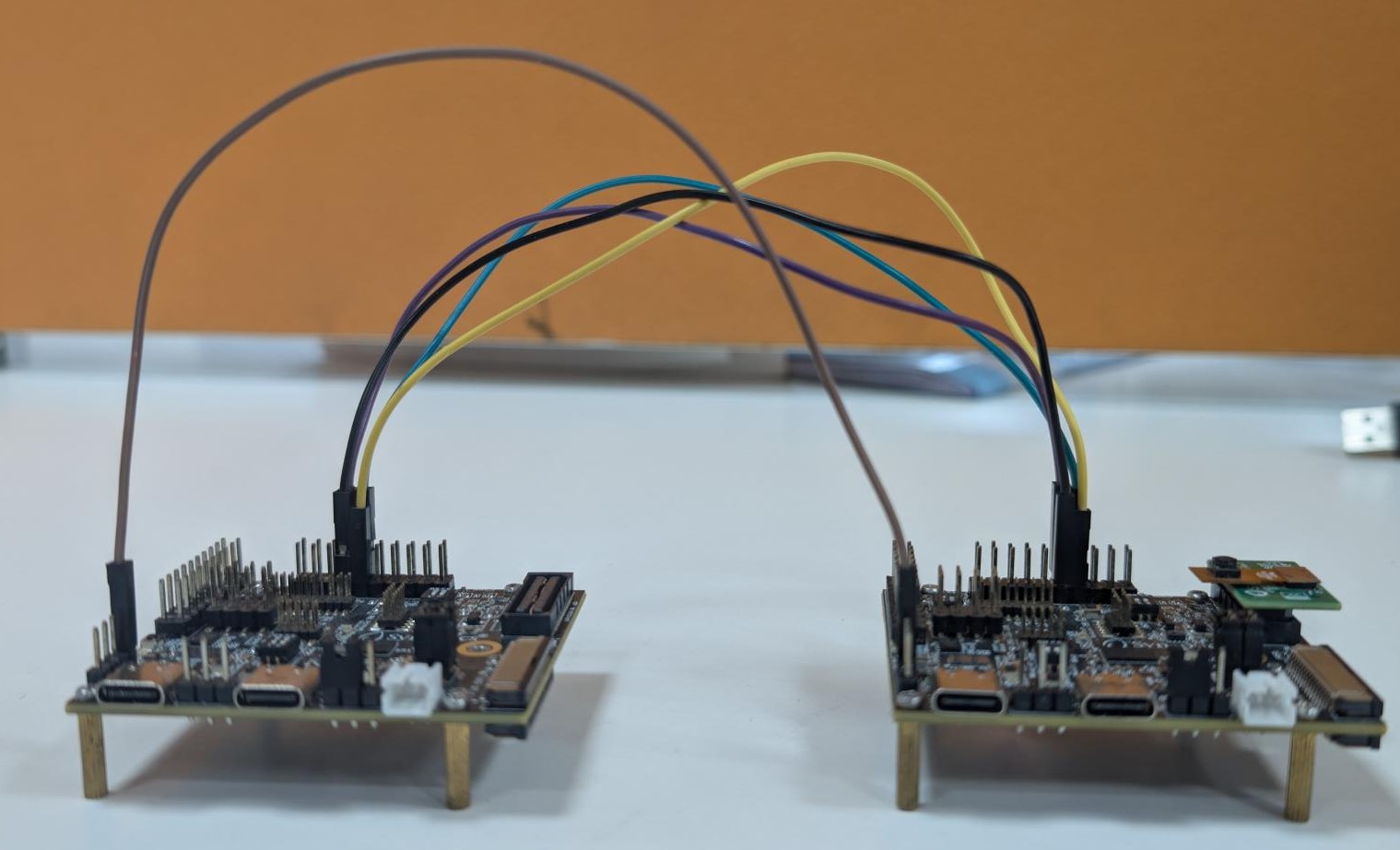

SPI Pre-roll Connections 1 SPI Pre-roll Connections 2

Test Procedure

The test can begin once the images are built, flashed onto the respective devices, and the hardware setup is completed. The pins described above represent the required SPI connections. In addition, the Ground lines of both boards must be connected to ensure a stable link. Failure to do so may result in corrupted or invalid data.

Peripheral (Sender) Steps

Before flashing the Peripheral image, the model binary must first be loaded at address 0x629000. Once the model is loaded, flash the Peripheral image and reset the device. On reset, the device enters hibernation and capture pre-roll images. Once the device wakes up from hibernation and if detection events are seen, It will initiate the SPI Peripheral Transfer to stream the captured pre-roll images.

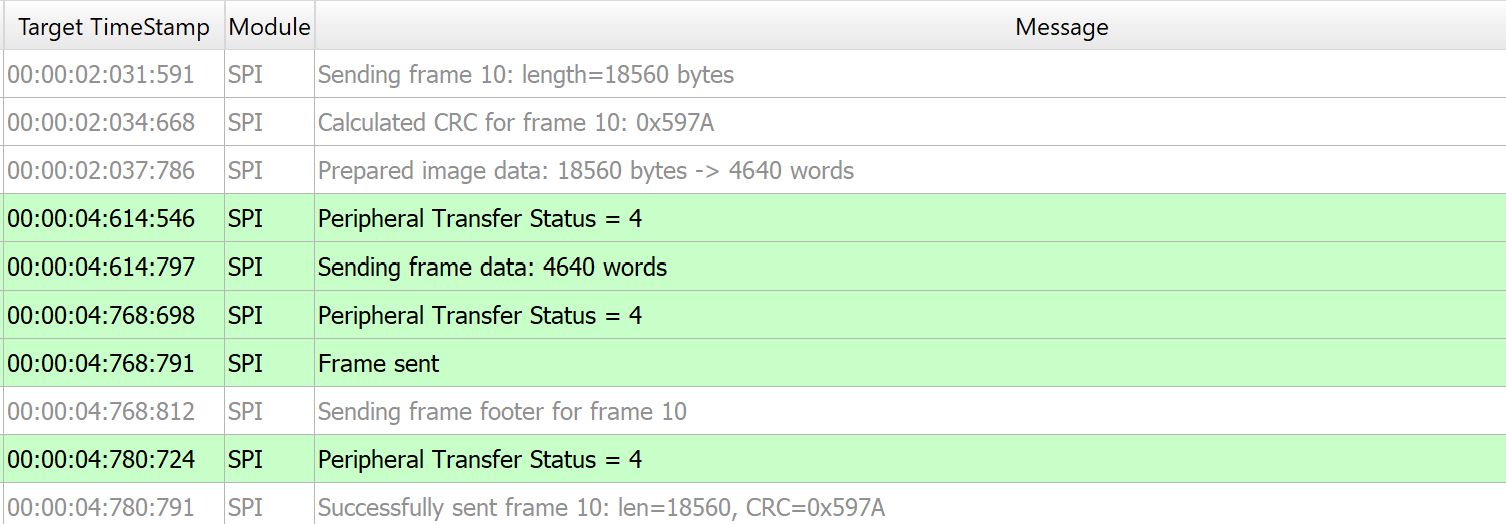

Peripheral Device Logs Peripheral Device Logs

Controller (Receiver) Steps

Flash the Controller image, but reset the controller device only after the peripheral wakes up from hibernation and begins the peripheral transfer. This ensures that the peripheral is ready to accept the pre-roll request and related commands from the controller.

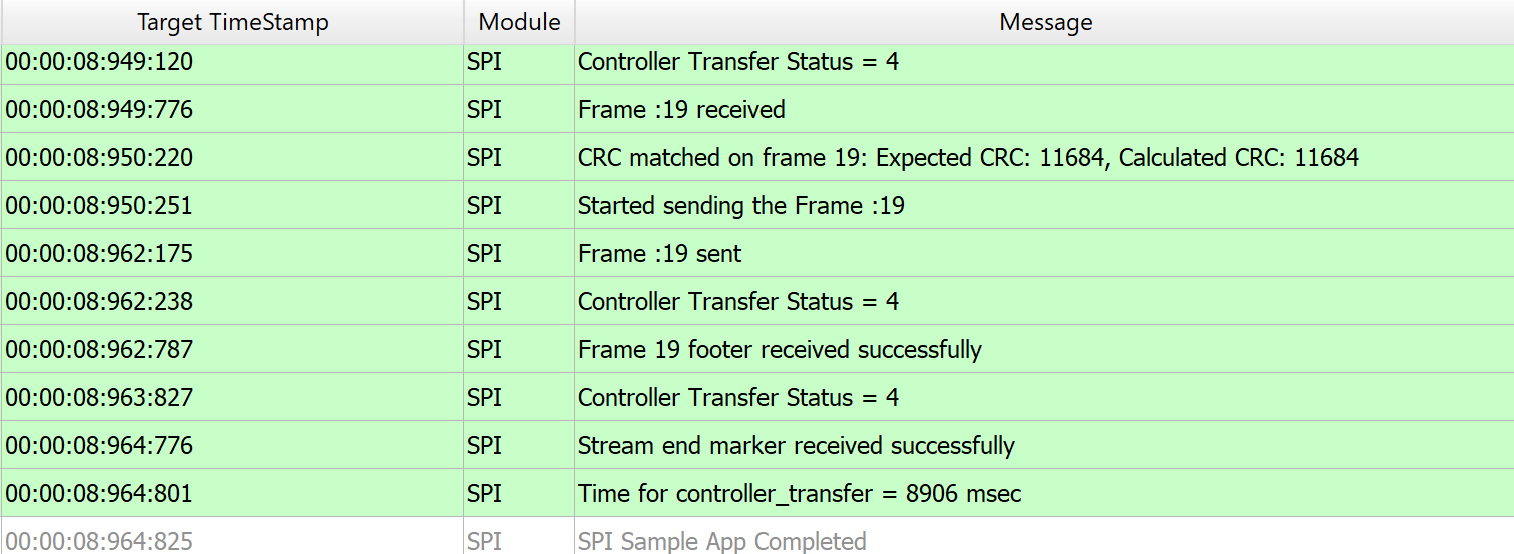

Controller Device Logs 1 Controller Device Logs 2

Expected Results

Controller initiates the transfer by sending a pre-roll request header. Peripheral responds with the stream header, all pre-roll JPEG frames, and the stream end marker over SPI. Controller successfully receives and validates each frame, including headers, CRC, and footers. We can confirm successful reception of pre-roll frames with logs.
