DMIC PDM-RX Sample Application

Description

The DMIC PDM-RX sample application demonstrates audio capture using the Digital Microphone (DMIC) interface on supported boards. It validates the end-to-end PDM receive path, including:

  • DMIC clock and I/O configuration

  • Channel configuration and gain/boost setup

  • FIFO and DMA capture paths

  • Captured PCM data verification

The sample supports multiple capture modes:

  • Blocking read: FIFO-based synchronous capture

  • Non-blocking read: Interrupt-driven FIFO capture

  • DMA-based capture: Continuous capture through DMA

  • DMA non-blocking read: Callback-driven DMA capture

During execution, the app logs initialization status, configuration details, and capture results so that bring-up and data-path issues are easier to diagnose.

The application follows the common source layout used by driver samples:

  • Common sources: main.c, dmic_sample_app.c, dmic_sample_app.h (app root)

  • Defconfigs: configs/

  • Board-specific hardware setup: hw/<BOARD>/ (for example hw/SL2610_RDK/)

The app can also be built as a standalone application repository by setting SRSDK_DIR to the SDK root.

Supported Boards

This application supports:

  • SL2610_RDK

Prerequisites

Choose one setup path:

Test Case Selection

Before building, select the testcase defconfig for the capture mode you want to validate.

You can:

  • Pick a defconfig from configs/

  • Run:

    make list_defconfigs

Available DMIC defconfigs (SL2610 RDK):

  • sl2610_rdk_cm52_dmic_defconfig: FIFO blocking read mode

  • sl2610_rdk_cm52_dmic_nonblocking_defconfig: FIFO non-blocking mode

  • sl2610_rdk_cm52_dmic_dma_defconfig: DMA blocking capture mode

  • sl2610_rdk_cm52_dmic_dma_nonblocking_defconfig: DMA non-blocking capture mode

Building and Flashing using VS Code

Use the VS Code flow in:

Build (VS Code):

  1. Open Build and Deploy -> Build Configurations.

  2. Select dmic_sample_app in Project Configuration.

  3. Select the required defconfig.

  4. Build with Build (SDK+Project) for first build, or Build (Project) for incremental rebuilds.

Flash (VS Code):

  1. Generate the image (sysmgr.subimg.gz) using the standard SL2610 image generation flow.

  2. Open Image Flashing (SL2610).

  3. Select Flash Target as M52 Image.

  4. Select generated image path.

  5. Start flashing.

Building and Flashing using CLI

Use:

Build (CLI):

  1. First build:

    cd <sdk-root>/examples/driver_examples/dmic_sample_app
export SRSDK_DIR=<sdk-root>
make <app_defconfig> BUILD=SRSDK

  2. Rebuild after app-only changes:

    cd <sdk-root>/examples/driver_examples/dmic_sample_app
export SRSDK_DIR=<sdk-root>
make build

Build outputs:

  • ELF: <app-dir>/out/<target>/release/<target>.elf

  • App-local SDK package: <app-dir>/install/<BOARD>/<BUILD_TYPE>/

Flash (CLI):

  1. Build bootloader image:

    cd <sdk-root>
export SRSDK_DIR=<sdk-root>
make <SL2610_Bootloader_defconfig> BOARD=<BOARD>
make astrasdk

  2. Generate system sub-image:

    cd <sdk-root>/examples/driver_examples/dmic_sample_app
export SRSDK_DIR=<sdk-root>
make imagegen

  3. Flash image to target (see SL2610 CLI guide above).

Running the Application

  1. Press RESET after flashing.

  2. Open Serial Monitor on UART logger port (115200, 8N1).

  3. Verify logs for:

    • DMIC init/config success

    • Selected capture mode

    • Capture start/complete or error details

Large Capture and Audio Export (JTAG + Memory Dump + Audacity)

The same image can be used for both capture methods:

  • JTAG capture: dump full PCM buffer from memory

  • UART capture: capture frame/sample logs from serial console (for users without JTAG).

Choose the method that matches your setup.

1) Method A: JTAG full-buffer capture

This is the recommended method when JTAG is available.

  1. Flash/boot the default CI image and run the sample app until DMIC capture completes.

  2. Boot the default image over USB:

python <path>/usb_boot_tool.py --op run-spk --spk tools/usb_boot_python_tool/USB_BOOT_TOOL/spk.bin --keys tools/usb_boot_python_tool/USB_BOOT_TOOL/key.bin --m52bl tools/usb_boot_python_tool/USB_BOOT_TOOL/m52bl.bin

  1. Start OpenOCD:

openocd -f "tools/openocd/configs/Klamath_Jlink.cfg"

  1. Connect with GDB in another terminal:

arm-none-eabi-gdb

Then run:

target extended-remote:3333

Windows note:

  1. After capture completion, halt CPU in debugger and run:

dump binary memory dmic.bin 0xBA100000 0xBA2D4C00

dump binary memory <file> <start_addr> <end_addr> uses address range, not size:

  • Start address: 0xBA100000

  • End address (DMIC_CAPTURE_TOTAL_BYTES): 0xBA2D4C00

  • Dumped bytes: 0xBA2D4C00 - 0xBA100000 = 0x001D4C00

Captured data buffer start symbol:

  • __img_buff_start

2) Method B: UART frame/sample capture (No JTAG)

Use this method if JTAG is not available.

  1. Flash/boot the same default CI binary.

  2. Open serial monitor on UART logger port (115200 8N1).

  3. Reset the board and wait for capture completion logs.

  4. Collect UART output starting from:

    • DMIC first 480 samples: index,raw32_hex

    • Next lines are samples in index,0xXXXXXXXX format.

Notes:

  • This UART path captures logged samples/frames, not a full memory binary dump.

  • UART sample dump is disabled by default. Enable CONFIG_APP_DMIC_UART_DUMP=y to print samples.

  • Default sample log count is 480 (DMIC_PRINT_SAMPLE_COUNT in dmic_sample_app.c) when UART sample dump is enabled.

  • Increase DMIC_PRINT_SAMPLE_COUNT and rebuild if you need more UART samples.

Optional: Print buffer address range on UART/logger

If you want the runtime capture buffer address in UART logs, add a log in examples/driver_examples/dmic_sample_app/dmic_sample_app.c after capture size is known:

LOG_INFO(LOG_MOD_DMIC,
         "[APP][DMIC] capture buffer: start=%p end=%p bytes=%u\n",
         (void *)data_buff,
         (void *)(data_buff + DMIC_CAPTURE_TOTAL_BYTES),
         (unsigned int)DMIC_CAPTURE_TOTAL_BYTES);

Notes:

  • data_buff maps to linker symbol __img_buff_start.

  • On SL2610 CM52, __img_buff_start is defined in linker script (soc/SL2610/cm52/config/sl2610_cm52_hw_gcc_arm.ld) and is currently 0xBA100000.

3) View the dump in Audacity (Import Raw Data)

  1. Open Audacity -> File -> Import -> Raw Data….

  2. Select dumped file: dmic.bin.

  3. In the import dialog, set:

    • Encoding: Signed 32-bit PCM

    • Byte order: Little-endian

    • Channels: 2 Channels (Stereo)

    • Start offset: 0 bytes

    • Amount to import: 100%

    • Sample rate: 48000 Hz

  4. Click Import.

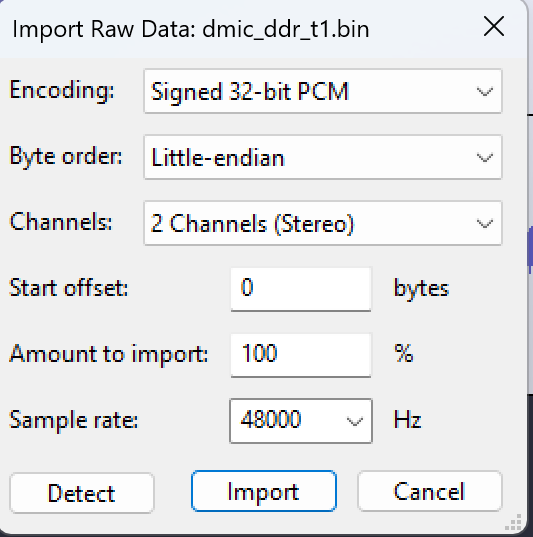

Reference screenshot:

Audacity Import Raw Data Settings

4) Increase capture size

In dmic_sample_app.c, update capture constants as needed:

  • DMIC_CAPTURE_DURATION_SEC

  • DMIC_CAPTURE_SAMPLE_RATE_HZ

  • DMIC_CAPTURE_CHANNEL_COUNT

Current capture buffer size in bytes is:

DMIC_CAPTURE_TOTAL_BYTES = sample_rate * duration_sec * channels * sample_bytes

In the current sample app configuration, each sample word is stored as 32-bit.

5) Tune capture level (volume/gain/boost) and filter settings

Use the sample-app knobs in examples/driver_examples/dmic_sample_app/dmic_sample_app.c:

  • Per-channel gain:

    • DMIC_CH0_GAIN_SETTING

    • DMIC_CH1_GAIN_SETTING

  • Per-channel boost:

    • DMIC_CH0_BOOST_SETTING

    • DMIC_CH1_BOOST_SETTING

  • Channel/filter config:

    • adc_cfg.enable_hpf

    • adc_cfg.hpf_cutoff_freq

    • adc_cfg.enable_low_power

    • adc_cfg.enable_ll_filter

Current defaults are:

  • Gain: DMIC_GAIN_0DB (both channels)

  • Boost: DMIC_BOOST_0DB (both channels)

  • HPF: disabled (enable_hpf = false)

Supported gain/boost enums are defined in drivers/dmic/dmic.h:

  • Gain range: DMIC_GAIN_NEG_3DB to DMIC_GAIN_POS_3DB

  • Boost range: DMIC_BOOST_0DB, DMIC_BOOST_6DB, DMIC_BOOST_12DB, DMIC_BOOST_18DB, DMIC_BOOST_24DB

Example (louder input with moderate headroom):

#define DMIC_CH0_GAIN_SETTING   (DMIC_GAIN_POS_1DB)
#define DMIC_CH0_BOOST_SETTING  (DMIC_BOOST_6DB)
#define DMIC_CH1_GAIN_SETTING   (DMIC_GAIN_POS_1DB)
#define DMIC_CH1_BOOST_SETTING  (DMIC_BOOST_6DB)

Notes:

  • Increase in small steps (for example +1 dB gain or +6 dB boost per iteration).

  • If clipping/distortion appears in Audacity, reduce boost first, then gain.

  • Boost applies large coarse steps; gain is finer control.

6) Tune sample rate / format for Audacity import

These app Kconfig options control capture format:

  • CONFIG_APP_DMIC_SAMPLE_RATE_HZ

  • CONFIG_APP_DMIC_CAPTURE_CHANNEL_COUNT

    • Use 1 for mono capture

    • Use 2 for stereo capture

After changing them, ensure Audacity import settings match exactly:

  • Sample rate = CONFIG_APP_DMIC_SAMPLE_RATE_HZ

  • Channels = CONFIG_APP_DMIC_CAPTURE_CHANNEL_COUNT

  • Encoding = Signed 32-bit PCM (sample app fixed at 32-bit capture)

Sample Output

UART Dump Disabled (Capture Verification)

When CONFIG_APP_DMIC_UART_DUMP=n, UART sample lines are not printed. Capture is still valid, and full audio extraction can be done using JTAG memory dump.

BL: MCU Init...
Init DDR4 @ 3200
DHL:v0p40 PT:v0p40 ID:0x21010000
Boot from eMMC Flash
SM image verified
0000000000:[0][INF][SYS ]:Application drivers initialization complete without errors.
0000000000:[0][INF][SYS ]:sl2610 SDK version 1.4.0
0000000000:[0][INF][SYS ]:M52:: Build Date 22-05-2026 Time 17:48:42 Commit 1670e3df
0000000000:[0][INF][GPIO]:Setting GPIO pin 37
0000000004:[0][INF][SYS ]:GPIO37 State : 1
0000000008:[0][INF][SM]:[APP][DMIC] init start: inst=0
0000000013:[0][INF][SM]:[APP][DMIC] init done
0000000017:[0][INF][SM]:[APP][DMIC] io cfg request: fs=48000 pdm_clk=3072000 phase=0 swap=0 pol_rev=0
0000000026:[0][INF][SM]:[APP][DMIC] io cfg done
0000000031:[0][INF][SM]:[APP][DMIC] ch0 cfg request: en=1 ll=0 lp=0 hpf=0 cutoff=0
0000000039:[0][INF][SM]:[APP][DMIC] ch0 cfg done
0000000043:[0][INF][SM]:[APP][DMIC] ch0 gain request: 6
0000000048:[0][INF][SM]:[APP][DMIC] ch0 boost request: 0
0000000054:[0][INF][SM]:[APP][DMIC] ch1 cfg request: en=1 ll=0 lp=0 hpf=0 cutoff=0
0000000061:[0][INF][SM]:[APP][DMIC] ch1 cfg done
0000000066:[0][INF][SM]:[APP][DMIC] ch1 gain request: 6
0000000071:[0][INF][SM]:[APP][DMIC] ch1 boost request: 0
0000000076:[0][INF][SM]:[APP][DMIC] dma path request: instance-level interleaved stream period_bytes=120000 ring_bytes=1920000 frame_bytes=8 addr=0xba100000 aligned_from=0xba100000
0000000092:[0][INF][SM]:[APP][DMIC] dma path cfg done
0000000103:[0][INF][SM]:[APP][DMIC] enable request
0000000108:[0][INF][SM]:[APP][DMIC] enable done
0000000112:[0][INF][SM]:[APP][DMIC] start request
0000000123:[0][INF][SM]:[APP][DMIC] settle delay after start: 50 ms
0000000179:[0][INF][SM]:[APP][DMIC] capture started
0000000179:[0][INF][SM]:[APP][DMIC] capture target: samples=480000 bytes=1920000 timeout_ms=6000
0000000179:[0][INF][SM]:[APP][DMIC] dma aligned buffer requirement: reserve at least 1920063 bytes
0000000179:[0][INF][SM]:[APP][DMIC][DMA-NB] read request: stereo interleaved dma target_samples=480000 bytes=1920000
0000005116:[0][INF][SM]:[APP][DMIC][DMA-NB] read done: interleaved words=480000 frames=240000 bytes=1920000
0000005116:[0][INF][SM]:[APP][DMIC] stop done
0000005116:[0][INF][SM]:DMIC samples captured: 480000
0000005116:[0][INF][SM]:[APP][DMIC] Uart Dump: Disabled
0000005116:[0][INF][SM]:DMIC PDM-Rx Sample App completed

UART Dump Enabled (Sample Lines Printed)

When CONFIG_APP_DMIC_UART_DUMP=y, the app prints first DMIC_PRINT_SAMPLE_COUNT captured samples in index,raw32_hex format.

0000000000:[0][INF][SYS ]:Application drivers initialization complete without errors.
0000000000:[0][INF][SYS ]:sl2610 SDK version 1.4.0
0000000000:[0][INF][SYS ]:M52:: Build Date 23-05-2026 Time 01:23:05 Commit e2c8fd6a
0000000000:[0][INF][GPIO]:Setting GPIO pin 37
0000000004:[0][INF][SYS ]:GPIO37 State : 1
0000000008:[0][INF][SM]:[APP][DMIC] init start: inst=0
0000000013:[0][INF][SM]:[APP][DMIC] init done
0000000017:[0][INF][SM]:[APP][DMIC] io cfg request: fs=48000 pdm_clk=3072000 phase=0 swap=0 pol_rev=0
0000000026:[0][INF][SM]:[APP][DMIC] io cfg done
0000000031:[0][INF][SM]:[APP][DMIC] ch0 cfg request: en=1 ll=0 lp=0 hpf=0 cutoff=0
0000000038:[0][INF][SM]:[APP][DMIC] ch0 cfg done
0000000043:[0][INF][SM]:[APP][DMIC] ch0 gain request: 6
0000000048:[0][INF][SM]:[APP][DMIC] ch0 boost request: 0
0000000054:[0][INF][SM]:[APP][DMIC] ch1 cfg request: en=1 ll=0 lp=0 hpf=0 cutoff=0
0000000061:[0][INF][SM]:[APP][DMIC] ch1 cfg done
0000000066:[0][INF][SM]:[APP][DMIC] ch1 gain request: 6
0000000071:[0][INF][SM]:[APP][DMIC] ch1 boost request: 0
0000000076:[0][INF][SM]:[APP][DMIC] fifo ch0 request: en=1 threshold=6 afull=1 full=1 over=1
0000000084:[0][INF][SM]:[APP][DMIC] fifo ch0 cfg done
0000000089:[0][INF][SM]:[APP][DMIC] fifo ch1 request: en=1 threshold=6 afull=1 full=1 over=1
0000000098:[0][INF][SM]:[APP][DMIC] fifo ch1 cfg done
0000000103:[0][INF][SM]:[APP][DMIC] irq request: mask=0x00000007 (AFULL|FULL|OVER)
0000000110:[0][INF][SM]:[APP][DMIC] irq cfg done
0000000115:[0][INF][SM]:[APP][DMIC] enable request
0000000120:[0][INF][SM]:[APP][DMIC] enable done
0000000124:[0][INF][SM]:[APP][DMIC] start request
0000000129:[0][INF][SM]:[APP][DMIC] capture started
0000000134:[0][INF][SM]:[APP][DMIC] capture target: samples=480000 bytes=1920000 timeout_ms=6000
0000000142:[0][INF][SM]:[APP][DMIC][NB] read request: stereo interleaved fifo target_words=480000 ch0=1 ch1=1
0000005145:[0][INF][SM]:[APP][DMIC][NB] read done: interleaved words=480000 frames=240000 bytes=1920000
0000005145:[0][INF][SM]:[APP][DMIC] stop done
0000005145:[0][INF][SM]:DMIC samples captured: 480000
0000005145:[0][INF][SM]:[APP][DMIC] Uart Dump: Enabled
0000005145:[0][INF][SM]:DMIC first 480 samples: index,raw32_hex
0000005145:[0][INF][SM]:0,0x00000000
0000005165:[0][INF][SM]:1,0x00000000
0000005185:[0][INF][SM]:2,0xFFDB5D00
0000005205:[0][INF][SM]:3,0xFFE03200
0000005225:[0][INF][SM]:4,0xFAF05400
0000005245:[0][INF][SM]:5,0xFB528A00
0000005265:[0][INF][SM]:6,0xE322E200
0000005285:[0][INF][SM]:7,0xE434F600
0000005305:[0][INF][SM]:8,0xCE94BF00
0000005325:[0][INF][SM]:9,0xCEA8DD00
0000005345:[0][INF][SM]:10,0xD960EB00
0000005365:[0][INF][SM]:11,0xD8EF4800
0000005385:[0][INF][SM]:12,0xD4EF0900
0000005405:[0][INF][SM]:13,0xD55B7400
0000005425:[0][INF][SM]:14,0xD5910A00
0000005445:[0][INF][SM]:15,0xD5428C00
0000005465:[0][INF][SM]:16,0xD9C16A00
0000005485:[0][INF][SM]:17,0xDA070100
0000005505:[0][INF][SM]:18,0xD9E81D00
0000005525:[0][INF][SM]:19,0xD9CF5600
0000005545:[0][INF][SM]:20,0xE1009C00
0000005565:[0][INF][SM]:21,0xE129A100
0000005585:[0][INF][SM]:22,0xE1D5B100
0000005605:[0][INF][SM]:23,0xE1D5C300
0000005625:[0][INF][SM]:24,0xE8D10500
0000005645:[0][INF][SM]:25,0xE8E90400
0000005665:[0][INF][SM]:26,0xE9C95B00
0000005685:[0][INF][SM]:27,0xE9D4C400
0000005705:[0][INF][SM]:28,0xF00B3500
0000005725:[0][INF][SM]:29,0xF01A5300
0000005745:[0][INF][SM]:30,0xF1B48D00
0000005765:[0][INF][SM]:31,0xF1C82500
0000005785:[0][INF][SM]:32,0xF8461200
0000005805:[0][INF][SM]:33,0xF8562700
0000005825:[0][INF][SM]:34,0xFB61F500
0000005845:[0][INF][SM]:35,0xFB7A8800
0000005865:[0][INF][SM]:36,0x028F5D00
0000005885:[0][INF][SM]:37,0x02A12800
0000005905:[0][INF][SM]:38,0x06DF7400
0000005925:[0][INF][SM]:39,0x06FE2700
0000005945:[0][INF][SM]:40,0x0DE45000
0000005965:[0][INF][SM]:41,0x0DF29C00
0000005985:[0][INF][SM]:42,0x120C5E00
0000006005:[0][INF][SM]:43,0x1226E700
0000006025:[0][INF][SM]:44,0x17F45E00
0000006045:[0][INF][SM]:45,0x18002700
0000006065:[0][INF][SM]:46,0x1AFA2700
0000006085:[0][INF][SM]:47,0x1B0F4B00
0000006105:[0][INF][SM]:48,0x1F221B00
0000006125:[0][INF][SM]:49,0x1F27CD00
0000006145:[0][INF][SM]:50,0x21039800
0000006165:[0][INF][SM]:51,0x21120D00
0000006185:[0][INF][SM]:52,0x23F2ED00
0000006205:[0][INF][SM]:53,0x23F58A00
0000006225:[0][INF][SM]:54,0x24EB6D00
0000006245:[0][INF][SM]:55,0x24F5F300
0000006265:[0][INF][SM]:56,0x26AE7600
0000006285:[0][INF][SM]:57,0x26AE5F00
0000006305:[0][INF][SM]:58,0x2713A300
0000006325:[0][INF][SM]:59,0x27199E00
0000006345:[0][INF][SM]:60,0x27E20F00
0000006365:[0][INF][SM]:61,0x27DE4600
0000006385:[0][INF][SM]:62,0x2708A700
0000006405:[0][INF][SM]:63,0x2709CA00
0000006425:[0][INF][SM]:64,0x25DB0300
0000006445:[0][INF][SM]:65,0x25CDDA00
0000006465:[0][INF][SM]:66,0x22B0B100
0000006485:[0][INF][SM]:67,0x22A77E00
0000006505:[0][INF][SM]:68,0x1F995600
0000006525:[0][INF][SM]:69,0x1F885B00
0000006545:[0][INF][SM]:70,0x1BA3FB00
0000006565:[0][INF][SM]:71,0x1B978500
0000006585:[0][INF][SM]:72,0x185AA800
0000006605:[0][INF][SM]:73,0x1849E100
0000006625:[0][INF][SM]:74,0x14A98400
0000006645:[0][INF][SM]:75,0x149F6800
0000006665:[0][INF][SM]:76,0x116B1200
0000006685:[0][INF][SM]:77,0x11592A00
0000006705:[0][INF][SM]:78,0x0D47B800
0000006725:[0][INF][SM]:79,0x0D3A6800
0000006745:[0][INF][SM]:80,0x092A4800
0000006765:[0][INF][SM]:81,0x09148000
0000006785:[0][INF][SM]:82,0x03FB1A00
0000006805:[0][INF][SM]:83,0x03E90500
0000006825:[0][INF][SM]:84,0xFED42C00
0000006845:[0][INF][SM]:85,0xFEBC5100
0000006865:[0][INF][SM]:86,0xF90E7F00
0000006885:[0][INF][SM]:87,0xF8F8B900
0000006905:[0][INF][SM]:88,0xF3884C00
0000006925:[0][INF][SM]:89,0xF3708200
0000006945:[0][INF][SM]:90,0xEDFCF500
0000006965:[0][INF][SM]:91,0xEDE94A00
0000006985:[0][INF][SM]:92,0xE9365700
0000007005:[0][INF][SM]:93,0xE9229600
0000007025:[0][INF][SM]:94,0xE4B18C00
0000007045:[0][INF][SM]:95,0xE4A28C00
0000007065:[0][INF][SM]:96,0xE0FD8F00
0000007085:[0][INF][SM]:97,0xE0EE9B00
0000007105:[0][INF][SM]:98,0xDD8B1500
0000007125:[0][INF][SM]:99,0xDD7ED300
0000007145:[0][INF][SM]:100,0xDACB2D00
0000007165:[0][INF][SM]:101,0xDAC04000
0000007185:[0][INF][SM]:102,0xD8779500
0000007205:[0][INF][SM]:103,0xD86FCF00
0000007225:[0][INF][SM]:104,0xD6CA3C00
0000007245:[0][INF][SM]:105,0xD6C61A00
0000007265:[0][INF][SM]:106,0xD5B4F500
0000007285:[0][INF][SM]:107,0xD5B22900
0000007305:[0][INF][SM]:108,0xD563C400
0000007325:[0][INF][SM]:109,0xD5627600
0000007345:[0][INF][SM]:110,0xD6142800
0000007365:[0][INF][SM]:111,0xD61B0D00
0000007385:[0][INF][SM]:112,0xD7CFA000
0000007405:[0][INF][SM]:113,0xD7D69600
0000007425:[0][INF][SM]:114,0xDB093F00
0000007445:[0][INF][SM]:115,0xDB1A0100
0000007465:[0][INF][SM]:116,0xDEBC4300
0000007485:[0][INF][SM]:117,0xDECBFB00
0000007505:[0][INF][SM]:118,0xE2CFB700
0000007525:[0][INF][SM]:119,0xE2DF1F00
0000007545:[0][INF][SM]:120,0xE6C75F00
0000007565:[0][INF][SM]:121,0xE6D69B00
0000007585:[0][INF][SM]:122,0xEA8A4100
0000007605:[0][INF][SM]:123,0xEA992D00
0000007625:[0][INF][SM]:124,0xEE298600
0000007645:[0][INF][SM]:125,0xEE395400
0000007665:[0][INF][SM]:126,0xF229B300
0000007685:[0][INF][SM]:127,0xF239D400
0000007705:[0][INF][SM]:128,0x159A9F00
0000007725:[0][INF][SM]:129,0x15800100
0000007745:[0][INF][SM]:130,0x193B0E00
0000007765:[0][INF][SM]:131,0x19713500
0000007785:[0][INF][SM]:132,0x1CAD5500
0000007805:[0][INF][SM]:133,0x1C946E00
0000007825:[0][INF][SM]:134,0x1F0E2300
0000007845:[0][INF][SM]:135,0x1F373400
0000007865:[0][INF][SM]:136,0x215E7700
0000007885:[0][INF][SM]:137,0x2149F600
0000007905:[0][INF][SM]:138,0x22B74800
0000007925:[0][INF][SM]:139,0x22D7FA00
0000007945:[0][INF][SM]:140,0x243DA100
0000007965:[0][INF][SM]:141,0x24282000
0000007985:[0][INF][SM]:142,0x24EC3700
0000008005:[0][INF][SM]:143,0x25052B00
0000008025:[0][INF][SM]:144,0x253CDC00
0000008045:[0][INF][SM]:145,0x25273500
0000008065:[0][INF][SM]:146,0x248D8700
0000008085:[0][INF][SM]:147,0x249BEC00
0000008105:[0][INF][SM]:148,0x22EBB300
0000008125:[0][INF][SM]:149,0x22D0A800
0000008145:[0][INF][SM]:150,0x1FD04200
0000008165:[0][INF][SM]:151,0x1FD2D700
0000008185:[0][INF][SM]:152,0x1C882800
0000008205:[0][INF][SM]:153,0x1C6C7600
0000008225:[0][INF][SM]:154,0x18C98100
0000008245:[0][INF][SM]:155,0x18C68300
0000008265:[0][INF][SM]:156,0x15589400
0000008285:[0][INF][SM]:157,0x15404800
0000008305:[0][INF][SM]:158,0x11E9F300
0000008325:[0][INF][SM]:159,0x11E65700
0000008345:[0][INF][SM]:160,0x0E6A1D00
0000008365:[0][INF][SM]:161,0x0E512800
0000008385:[0][INF][SM]:162,0x0A7B2A00
0000008405:[0][INF][SM]:163,0x0A74F500
0000008425:[0][INF][SM]:164,0x06213400
0000008445:[0][INF][SM]:165,0x06046300
0000008465:[0][INF][SM]:166,0x017AE800
0000008485:[0][INF][SM]:167,0x0111A800
0000008505:[0][INF][SM]:168,0xFE13E200
0000008525:[0][INF][SM]:169,0xFB97AD00
0000008545:[0][INF][SM]:170,0xF85A8300
0000008565:[0][INF][SM]:171,0xF5F14B00
0000008585:[0][INF][SM]:172,0xEEF1DA00
0000008605:[0][INF][SM]:173,0xF060BB00
0000008625:[0][INF][SM]:174,0xEB916300
0000008645:[0][INF][SM]:175,0xEAFE3D00
0000008665:[0][INF][SM]:176,0xE6628200
0000008685:[0][INF][SM]:177,0xE6342300
0000008705:[0][INF][SM]:178,0xE19DEF00
0000008725:[0][INF][SM]:179,0xE1F61900
0000008745:[0][INF][SM]:180,0xDEC5BD00
0000008765:[0][INF][SM]:181,0xDE326900
0000008785:[0][INF][SM]:182,0xDA7BCC00
0000008805:[0][INF][SM]:183,0xDAFC5200
0000008825:[0][INF][SM]:184,0xD8DAC500
0000008845:[0][INF][SM]:185,0xD845A300
0000008865:[0][INF][SM]:186,0xD599DE00
0000008885:[0][INF][SM]:187,0xD615EB00
0000008905:[0][INF][SM]:188,0xD4FD2C00
0000008925:[0][INF][SM]:189,0xD47F8200
0000008945:[0][INF][SM]:190,0xD317B500
0000008965:[0][INF][SM]:191,0xD3831400
0000008985:[0][INF][SM]:192,0xD3BAC900
0000009005:[0][INF][SM]:193,0xD3588A00
0000009025:[0][INF][SM]:194,0xD3D8B100
0000009045:[0][INF][SM]:195,0xD436C100
0000009065:[0][INF][SM]:196,0xD693F300
0000009085:[0][INF][SM]:197,0xD650EE00
0000009105:[0][INF][SM]:198,0xD933A600
0000009125:[0][INF][SM]:199,0xD9886700
0000009145:[0][INF][SM]:200,0xDD9ADE00
0000009165:[0][INF][SM]:201,0xDD6A1D00
0000009185:[0][INF][SM]:202,0xE111C500
0000009205:[0][INF][SM]:203,0xE15B1B00
0000009225:[0][INF][SM]:204,0xE55DB700
0000009245:[0][INF][SM]:205,0xE5380400
0000009265:[0][INF][SM]:206,0xE8B00600
0000009285:[0][INF][SM]:207,0xE8EFCE00
0000009305:[0][INF][SM]:208,0xECB5AE00
0000009325:[0][INF][SM]:209,0xEC987E00
0000009345:[0][INF][SM]:210,0xF05CAF00
0000009365:[0][INF][SM]:211,0xF094F600
0000009385:[0][INF][SM]:212,0xF508E100
0000009405:[0][INF][SM]:213,0xF4F86A00
0000009425:[0][INF][SM]:214,0xF9E35300
0000009445:[0][INF][SM]:215,0xFA1A0900
0000009465:[0][INF][SM]:216,0xFFA1CC00
0000009485:[0][INF][SM]:217,0xFF9B1D00
0000009505:[0][INF][SM]:218,0x05372200
0000009525:[0][INF][SM]:219,0x05680400
0000009545:[0][INF][SM]:220,0x0B057400
0000009565:[0][INF][SM]:221,0x0B01E800
0000009585:[0][INF][SM]:222,0x10426700
0000009605:[0][INF][SM]:223,0x10703A00
0000009625:[0][INF][SM]:224,0x15231200
0000009645:[0][INF][SM]:225,0x151DF300
0000009665:[0][INF][SM]:226,0x18FC4B00
0000009685:[0][INF][SM]:227,0x191D7900
0000009705:[0][INF][SM]:228,0x1C3FD200
0000009725:[0][INF][SM]:229,0x1C3A5500
0000009745:[0][INF][SM]:230,0x1F37DA00
0000009765:[0][INF][SM]:231,0x1EFFE000
0000009785:[0][INF][SM]:232,0x236B6B00
0000009805:[0][INF][SM]:233,0x21231500
0000009825:[0][INF][SM]:234,0x25317400
0000009845:[0][INF][SM]:235,0x22C55400
0000009865:[0][INF][SM]:236,0x229FAE00
0000009885:[0][INF][SM]:237,0x240DB600
0000009905:[0][INF][SM]:238,0x25490800
0000009925:[0][INF][SM]:239,0x24F62700
0000009945:[0][INF][SM]:240,0x25680900
0000009965:[0][INF][SM]:241,0x25242100
0000009985:[0][INF][SM]:242,0x241C1200
0000010005:[0][INF][SM]:243,0x24A0F200
0000010025:[0][INF][SM]:244,0x23976300
0000010045:[0][INF][SM]:245,0x22EE2400
0000010065:[0][INF][SM]:246,0x1F789D00
0000010085:[0][INF][SM]:247,0x200AD600
0000010105:[0][INF][SM]:248,0x1D372000
0000010125:[0][INF][SM]:249,0x1C933000
0000010145:[0][INF][SM]:250,0x1873D400
0000010165:[0][INF][SM]:251,0x18EFD600
0000010185:[0][INF][SM]:252,0x15F1EC00
0000010205:[0][INF][SM]:253,0x15664F00
0000010225:[0][INF][SM]:254,0x11AFFE00
0000010245:[0][INF][SM]:255,0x12132A00
0000010265:[0][INF][SM]:256,0x0EEF2A00
0000010285:[0][INF][SM]:257,0x0E7B1F00
0000010305:[0][INF][SM]:258,0x0A70F700
0000010325:[0][INF][SM]:259,0x0ABBFA00
0000010345:[0][INF][SM]:260,0x06AD3700
0000010365:[0][INF][SM]:261,0x0648C100
0000010385:[0][INF][SM]:262,0x011B6100
0000010405:[0][INF][SM]:263,0x014E0300
0000010425:[0][INF][SM]:264,0xFC47B400
0000010445:[0][INF][SM]:265,0xFBF0E100
0000010465:[0][INF][SM]:266,0xF61F7100
0000010485:[0][INF][SM]:267,0xF644F900
0000010505:[0][INF][SM]:268,0xF100A000
0000010525:[0][INF][SM]:269,0xF0B39900
0000010545:[0][INF][SM]:270,0xEB480D00
0000010565:[0][INF][SM]:271,0xEB653F00
0000010585:[0][INF][SM]:272,0xE6D8EC00
0000010605:[0][INF][SM]:273,0xE69A6C00
0000010625:[0][INF][SM]:274,0xE21FEB00
0000010645:[0][INF][SM]:275,0xE2376D00
0000010665:[0][INF][SM]:276,0xDEC57900
0000010685:[0][INF][SM]:277,0xDE93F900
0000010705:[0][INF][SM]:278,0xDB18B300
0000010725:[0][INF][SM]:279,0xDB2CEB00
0000010745:[0][INF][SM]:280,0xD8B6AA00
0000010765:[0][INF][SM]:281,0xD88FE400
0000010785:[0][INF][SM]:282,0xD621CB00
0000010805:[0][INF][SM]:283,0xD6335700
0000010825:[0][INF][SM]:284,0xD4C2C900
0000010845:[0][INF][SM]:285,0xD4A55500
0000010865:[0][INF][SM]:286,0xD3769700
0000010885:[0][INF][SM]:287,0xD38A4500
0000010905:[0][INF][SM]:288,0xD35F3400
0000010925:[0][INF][SM]:289,0xD34B9A00
0000010945:[0][INF][SM]:290,0xD3D19D00
0000010965:[0][INF][SM]:291,0xD3E91A00
0000010985:[0][INF][SM]:292,0xD6379000
0000011005:[0][INF][SM]:293,0xD5F27E00
0000011025:[0][INF][SM]:294,0xDAF8A800
0000011045:[0][INF][SM]:295,0xD904DE00
0000011065:[0][INF][SM]:296,0xDF7EC600
0000011085:[0][INF][SM]:297,0xDCCBA800
0000011105:[0][INF][SM]:298,0xDF691900
0000011125:[0][INF][SM]:299,0xE0C8FB00
0000011145:[0][INF][SM]:300,0xE4BED300
0000011165:[0][INF][SM]:301,0xE4A97D00
0000011185:[0][INF][SM]:302,0xE8BCB800
0000011205:[0][INF][SM]:303,0xE861B000
0000011225:[0][INF][SM]:304,0xEB4CF000
0000011245:[0][INF][SM]:305,0xEBFAE200
0000011265:[0][INF][SM]:306,0xF08AF600
0000011285:[0][INF][SM]:307,0xEFF2E600
0000011305:[0][INF][SM]:308,0xF3A2DC00
0000011325:[0][INF][SM]:309,0xF456BA00
0000011345:[0][INF][SM]:310,0xF9E67400
0000011365:[0][INF][SM]:311,0xF9683900
0000011385:[0][INF][SM]:312,0xFE41A400
0000011405:[0][INF][SM]:313,0xFEDB9500
0000011425:[0][INF][SM]:314,0x050D7F00
0000011445:[0][INF][SM]:315,0x04B20300
0000011465:[0][INF][SM]:316,0x09C95300
0000011485:[0][INF][SM]:317,0x0A41CC00
0000011505:[0][INF][SM]:318,0x0FF51600
0000011525:[0][INF][SM]:319,0x0FB3B800
0000011545:[0][INF][SM]:320,0x141A0700
0000011565:[0][INF][SM]:321,0x14781600
0000011585:[0][INF][SM]:322,0x18A9DC00
0000011605:[0][INF][SM]:323,0x1873B500
0000011625:[0][INF][SM]:324,0x1B6C5800
0000011645:[0][INF][SM]:325,0x1BB42F00
0000011665:[0][INF][SM]:326,0x1EA5F300
0000011685:[0][INF][SM]:327,0x1E7C7D00
0000011705:[0][INF][SM]:328,0x206D9000
0000011725:[0][INF][SM]:329,0x20A2F500
0000011745:[0][INF][SM]:330,0x227EB300
0000011765:[0][INF][SM]:331,0x225AC400
0000011785:[0][INF][SM]:332,0x235EF400
0000011805:[0][INF][SM]:333,0x23889C00
0000011825:[0][INF][SM]:334,0x2495B600
0000011845:[0][INF][SM]:335,0x2476A900
0000011865:[0][INF][SM]:336,0x24BA3900
0000011885:[0][INF][SM]:337,0x24D98200
0000011905:[0][INF][SM]:338,0x246E4200
0000011925:[0][INF][SM]:339,0x244E1F00
0000011945:[0][INF][SM]:340,0x22B52A00
0000011965:[0][INF][SM]:341,0x22C44300
0000011985:[0][INF][SM]:342,0x2015A500
0000012005:[0][INF][SM]:343,0x1FF2C900
0000012025:[0][INF][SM]:344,0x1C815000
0000012045:[0][INF][SM]:345,0x1C87C400
0000012065:[0][INF][SM]:346,0x191A8F00
0000012085:[0][INF][SM]:347,0x18FB3000
0000012105:[0][INF][SM]:348,0x1578DE00
0000012125:[0][INF][SM]:349,0x157AEF00
0000012145:[0][INF][SM]:350,0x1238B900
0000012165:[0][INF][SM]:351,0x121BBD00
0000012185:[0][INF][SM]:352,0x0EAD0000
0000012205:[0][INF][SM]:353,0x0EAC8300
0000012225:[0][INF][SM]:354,0x0B00C500
0000012245:[0][INF][SM]:355,0x0AE3FE00
0000012265:[0][INF][SM]:356,0x06759E00
0000012285:[0][INF][SM]:357,0x066F0800
0000012305:[0][INF][SM]:358,0x01C2EC00
0000012325:[0][INF][SM]:359,0x01A3CF00
0000012345:[0][INF][SM]:360,0xFC4C5A00
0000012365:[0][INF][SM]:361,0xFC3DA500
0000012385:[0][INF][SM]:362,0xF6A62A00
0000012405:[0][INF][SM]:363,0xF6886300
0000012425:[0][INF][SM]:364,0xF10AF200
0000012445:[0][INF][SM]:365,0xF0FE1700
0000012465:[0][INF][SM]:366,0xEBC96600
0000012485:[0][INF][SM]:367,0xEBAD7300
0000012505:[0][INF][SM]:368,0xE6C17E00
0000012525:[0][INF][SM]:369,0xE6B4D300
0000012545:[0][INF][SM]:370,0xE279BE00
0000012565:[0][INF][SM]:371,0xE2633F00
0000012585:[0][INF][SM]:372,0xDEAF3A00
0000012605:[0][INF][SM]:373,0xDEA62400
0000012625:[0][INF][SM]:374,0xDB784900
0000012645:[0][INF][SM]:375,0xDB68FD00
0000012665:[0][INF][SM]:376,0xD8A46800
0000012685:[0][INF][SM]:377,0xD89F2000
0000012705:[0][INF][SM]:378,0xD6793100
0000012725:[0][INF][SM]:379,0xD66C9200
0000012745:[0][INF][SM]:380,0xD4C66400
0000012765:[0][INF][SM]:381,0xD4C4BF00
0000012785:[0][INF][SM]:382,0xD3C38600
0000012805:[0][INF][SM]:383,0xD3BC3200
0000012825:[0][INF][SM]:384,0xD35F1600
0000012845:[0][INF][SM]:385,0xD3638400
0000012865:[0][INF][SM]:386,0xD3FEC900
0000012885:[0][INF][SM]:387,0xD4008900
0000012905:[0][INF][SM]:388,0xD5E13800
0000012925:[0][INF][SM]:389,0xD5EE4F00
0000012945:[0][INF][SM]:390,0xD8F9DD00
0000012965:[0][INF][SM]:391,0xD9057400
0000012985:[0][INF][SM]:392,0xDC99DC00
0000013005:[0][INF][SM]:393,0xDCAB5200
0000013025:[0][INF][SM]:394,0xE0AAD900
0000013045:[0][INF][SM]:395,0xE0BA3E00
0000013065:[0][INF][SM]:396,0xE496C200
0000013085:[0][INF][SM]:397,0xE4A5ED00
0000013105:[0][INF][SM]:398,0xE83AEE00
0000013125:[0][INF][SM]:399,0xE8472700
0000013145:[0][INF][SM]:400,0xEBE33800
0000013165:[0][INF][SM]:401,0xEBF60B00
0000013185:[0][INF][SM]:402,0xEFF1B200
0000013205:[0][INF][SM]:403,0xF0737700
0000013225:[0][INF][SM]:404,0xF4374700
0000013245:[0][INF][SM]:405,0xF6D86D00
0000013265:[0][INF][SM]:406,0xF9396E00
0000013285:[0][INF][SM]:407,0xFB5D4B00
0000013305:[0][INF][SM]:408,0xFE9E2500
0000013325:[0][INF][SM]:409,0xFD137600
0000013345:[0][INF][SM]:410,0x04852E00
0000013365:[0][INF][SM]:411,0x055B2600
0000013385:[0][INF][SM]:412,0x0A1A6000
0000013405:[0][INF][SM]:413,0x0A0DE100
0000013425:[0][INF][SM]:414,0x0F911200
0000013445:[0][INF][SM]:415,0x0F971700
0000013465:[0][INF][SM]:416,0x1469F700
0000013485:[0][INF][SM]:417,0x16876F00
0000013505:[0][INF][SM]:418,0x1890AA00
0000013525:[0][INF][SM]:419,0x1B325600
0000013545:[0][INF][SM]:420,0x1BDFA200
0000013565:[0][INF][SM]:421,0x1B9BB900
0000013585:[0][INF][SM]:422,0x1E98CB00
0000013605:[0][INF][SM]:423,0x1DB9BF00
0000013625:[0][INF][SM]:424,0x20DD1C00
0000013645:[0][INF][SM]:425,0x222EA000
0000013665:[0][INF][SM]:426,0x22A1EB00
0000013685:[0][INF][SM]:427,0x215D6100
0000013705:[0][INF][SM]:428,0x23DC2600
0000013725:[0][INF][SM]:429,0x250B1900
0000013745:[0][INF][SM]:430,0x24D4B400
0000013765:[0][INF][SM]:431,0x23D39100
0000013785:[0][INF][SM]:432,0x253DBB00
0000013805:[0][INF][SM]:433,0x261BD300
0000013825:[0][INF][SM]:434,0x24D2B300
0000013845:[0][INF][SM]:435,0x24124300
0000013865:[0][INF][SM]:436,0x235FD100
0000013885:[0][INF][SM]:437,0x23F9F300
0000013905:[0][INF][SM]:438,0x20BFB100
0000013925:[0][INF][SM]:439,0x20286F00
0000013945:[0][INF][SM]:440,0x1D3FD200
0000013965:[0][INF][SM]:441,0x1DA88500
0000013985:[0][INF][SM]:442,0x19B81C00
0000014005:[0][INF][SM]:443,0x1941B800
0000014025:[0][INF][SM]:444,0x162BB500
0000014045:[0][INF][SM]:445,0x167A0500
0000014065:[0][INF][SM]:446,0x12CD2500
0000014085:[0][INF][SM]:447,0x126FD600
0000014105:[0][INF][SM]:448,0x0F59D100
0000014125:[0][INF][SM]:449,0x0F90BB00
0000014145:[0][INF][SM]:450,0x0B89B600
0000014165:[0][INF][SM]:451,0x0B3CA300
0000014185:[0][INF][SM]:452,0x0756E900
0000014205:[0][INF][SM]:453,0x077B4300
0000014225:[0][INF][SM]:454,0x0260CA00
0000014245:[0][INF][SM]:455,0x021AE500
0000014265:[0][INF][SM]:456,0xFD1E6E00
0000014285:[0][INF][SM]:457,0xFD35A700
0000014305:[0][INF][SM]:458,0xF767C200
0000014325:[0][INF][SM]:459,0xF7285400
0000014345:[0][INF][SM]:460,0xF1DC9D00
0000014365:[0][INF][SM]:461,0xF1E9C400
0000014385:[0][INF][SM]:462,0xEC6D6000
0000014405:[0][INF][SM]:463,0xEC39A100
0000014425:[0][INF][SM]:464,0xE77D7E00
0000014445:[0][INF][SM]:465,0xE7870900
0000014465:[0][INF][SM]:466,0xE309CC00
0000014485:[0][INF][SM]:467,0xE2E1D800
0000014505:[0][INF][SM]:468,0xDF2D6300
0000014525:[0][INF][SM]:469,0xDFE9DB00
0000014545:[0][INF][SM]:470,0xDBD77800
0000014565:[0][INF][SM]:471,0xDE94EA00
0000014585:[0][INF][SM]:472,0xD8FD2800
0000014605:[0][INF][SM]:473,0xDA61EF00
0000014625:[0][INF][SM]:474,0xD6B62100
0000014645:[0][INF][SM]:475,0xD4F88C00
0000014665:[0][INF][SM]:476,0xD4FC0300
0000014685:[0][INF][SM]:477,0xD6201800
0000014705:[0][INF][SM]:478,0xD3D0D500
0000014725:[0][INF][SM]:479,0xD3289500
0000014745:[0][INF][SM]:DMIC PDM-Rx Sample App completed
