VSCode Extension User Guide

This guide provides comprehensive instructions for installing and using the Synaptics Astra MCU SDK VSCode Extension.

Extension Installation

Pre-requisites:

1. Before using the extension, ensure the latest version of Visual Studio Code is installed and code command is available in your terminal:

2. Windows/Linux: Add the path to VS Code’s bin folder to your system’s PATH environment variable.

3. macOS: Open the Command Palette in VS Code, search for “Shell Command: Install ‘code’ command in PATH”, and run it.

4. Verify: In your terminal, run code –version to confirm it’s working.

5. Supported platforms:

   1. Windows systems with x64-based architecture.

   2. Linux systems (Ubuntu 22.04 and above) with x86_64 architecture.

   3. Linux systems (Ubuntu 22.04 and above) with aarch64 architecture.

   4. Mac systems with x86_64 architecture.

   5. Mac systems with ARM64 architecture.

Steps to install the extension package

1. Use Astra_MCU_SDK_vscode_extension-1.2.3 extension VSIX file from the Release package: *<parent directory>/tools/ *

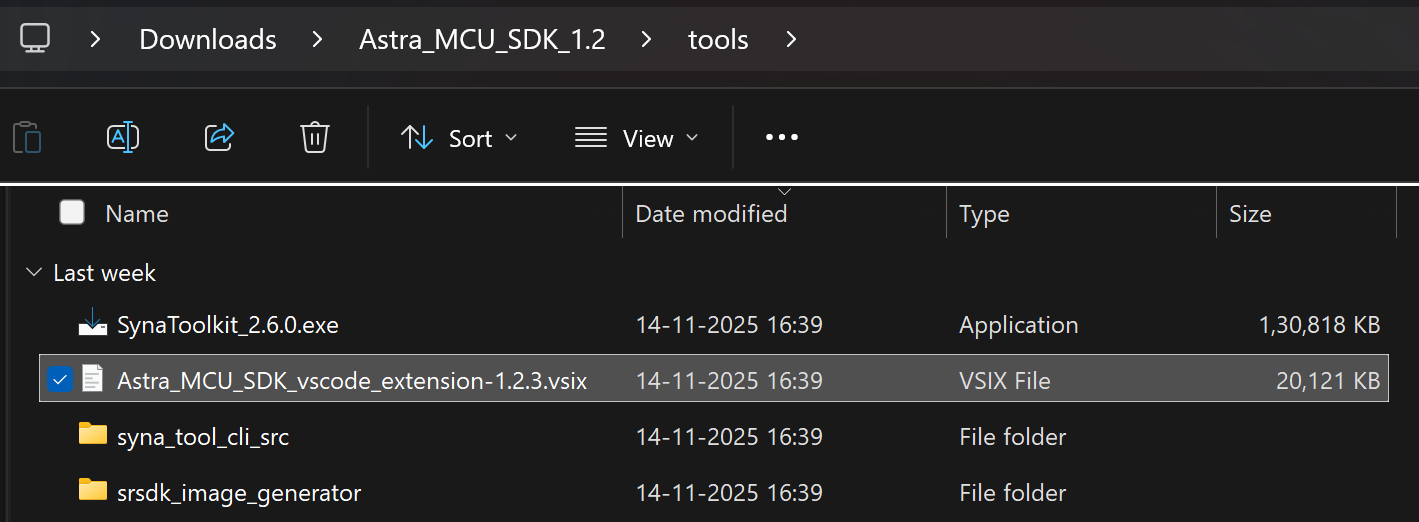

Figure Path to extension package

2. Install the VSIX file in VS Code terminal using the following command,

code –install-extension path/to/VSIX file

3. The installed extension will be displayed on the left side of VS Code extension (activity bar, where we can find the Synaptics extension).

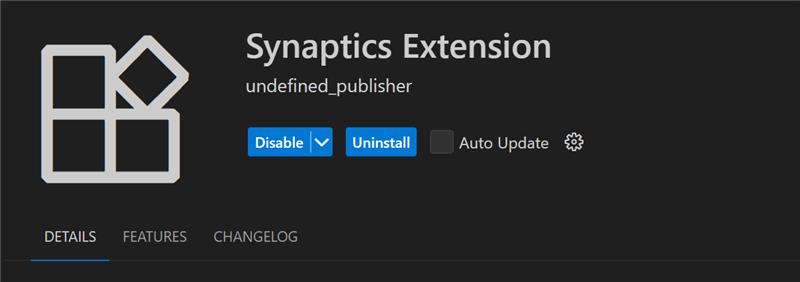

Figure Synaptics Extension icon

4. After installing the extension, the homepage opens showing its details. The extension version can also be verified from this tab.

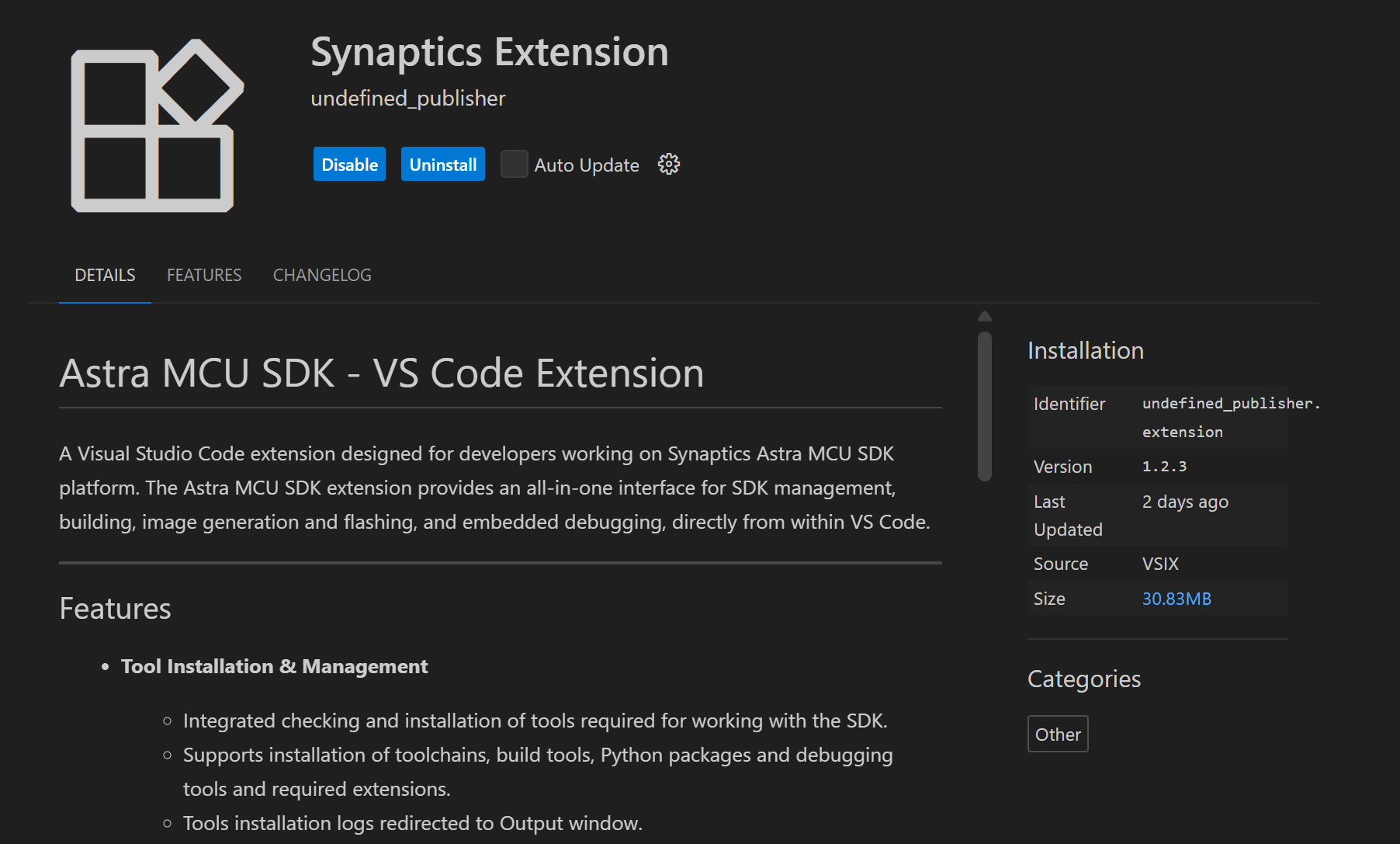

Figure Synaptics extension homepage

Steps to uninstall old package and reinstall updated one

1. Remove the currently imported SDK from the workspace using the “Remove from workspace” option.

Figure Remove from Workspace

2. Uninstall the current extension using the “Uninstall” button.

Figure Uninstall button

3. Close any active Webview or reload the window.

4. Install the new extension VSIX package by following the steps outlined in Steps to install the extension package.

5. Install or reinstall the required tools (as per the Release Notes if any) and then import the SDK into the workspace.

Install Tools

Purpose: To check and install the necessary tools for build, image flashing and debugging.

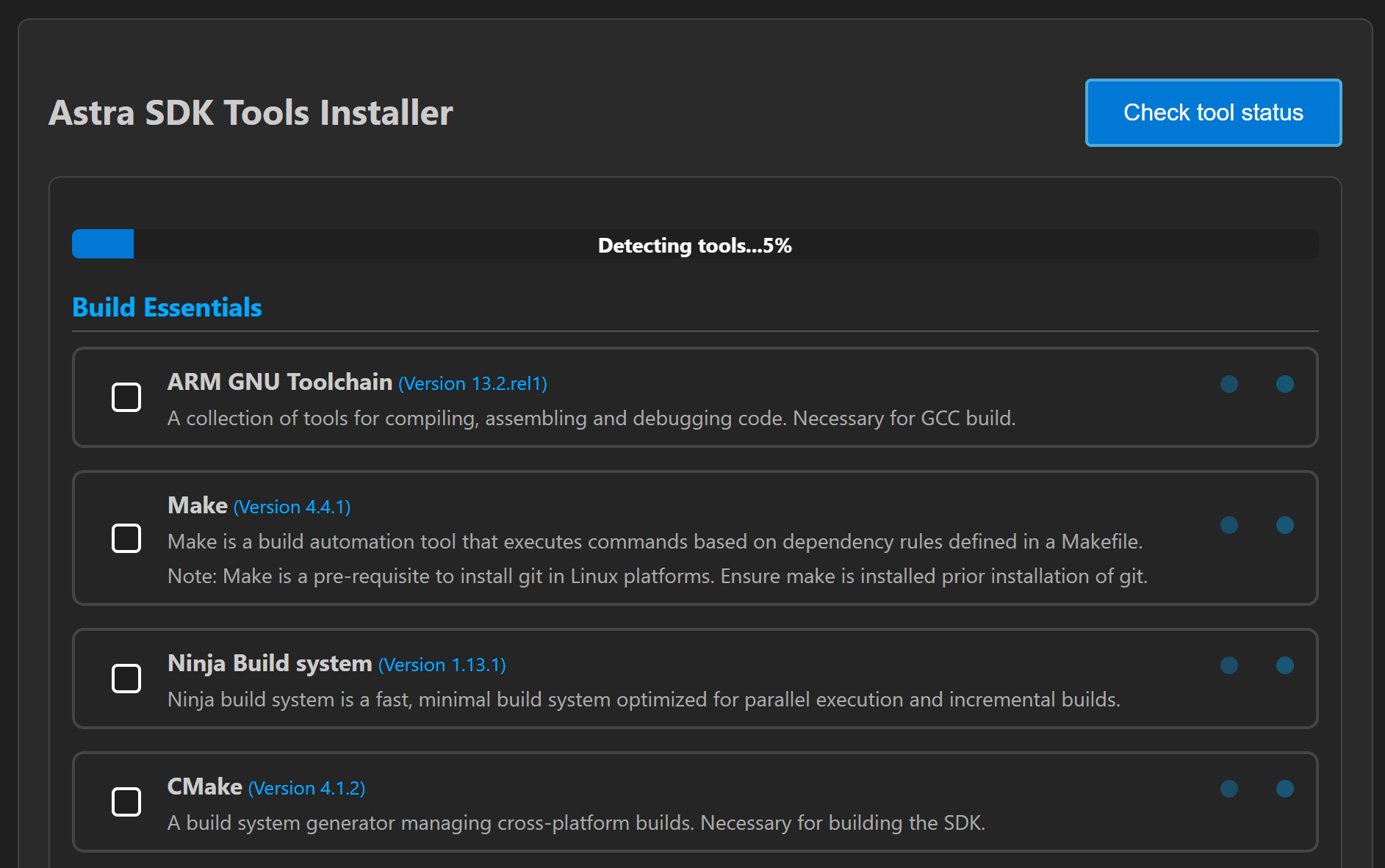

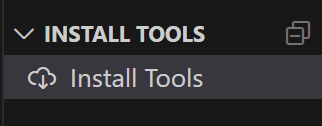

Figure Install Tools

Tools checking

Steps:

1. This view will check if the necessary tools are already installed in well-known installation locations.

2. Tools checking is performed when the tab is opened for the first time. Subsequently, users can manually check the tool status by clicking the “Check tool status” button. A progress loader will be displayed to show the percentage of tools checking progress.

Note: On Linux and macOS, jq is required to read and write the settings.json file. If it’s not installed, a terminal will open to install it, and you’ll be prompted to enter your system password. Once installed, the extension will continue checking tool status automatically.

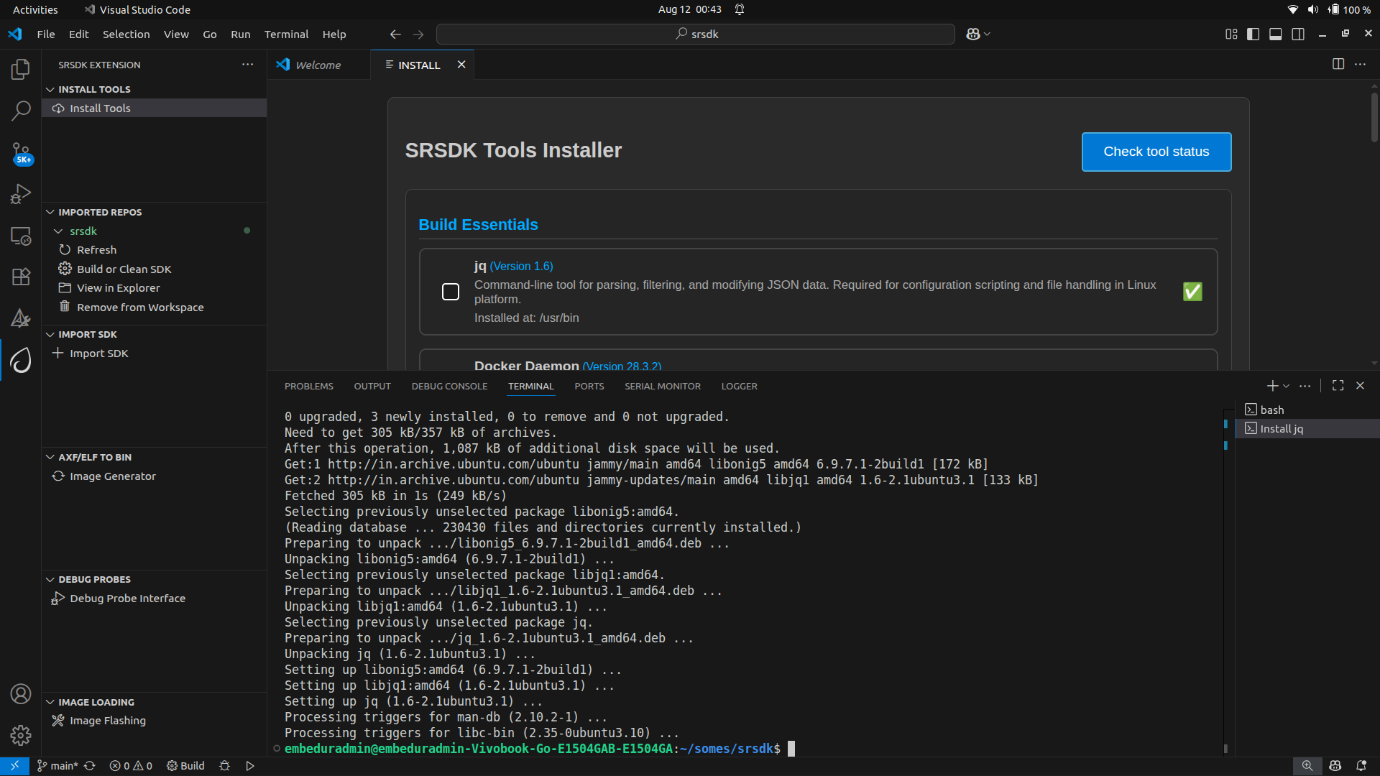

Figure jq install terminal

Result:

1. If a tool is missing or its version does not match the required version, an exclamation mark (⚠️) will be displayed, and the installation checkbox will be automatically selected.

2. If a tool is already installed with the correct version, a green checkmark () will appear, and the installation checkbox will remain unselected.

Figure Tools Checking

Tools installation

Steps:

1. After the tools check, you can select a directory to install the selected tools, or use the default installation path:

   1. Windows: C:/Users/<username>/SRSDK_Build_tools

   2. Linux/macOS: /home/<username>/SRSDK_Build_tools

2. Click “Install” to install the selected tools. This action will run the installation script in the “Install Script Terminal”, where you can view the logs. A loader will be displayed at the bottom to indicate the tools installation progress.

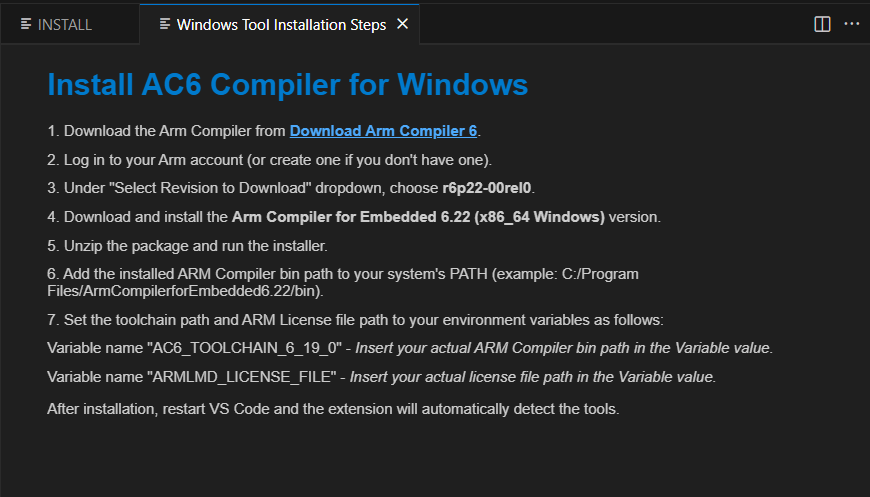

3. For installing AC6 compiler, click on “View Installation Steps” button and follow the steps. Refer figure for the installation steps for AC6 compiler.

Note:

• The AC6 compiler is not available on macOS, so native AC6 builds are not supported for macOS.

• On Linux and macOS, you’ll be prompted to enter your password in the ‘Install Script Terminal’ to proceed with the installation.

Figure Steps to install AC6 compiler

Source Code Checkout

Purpose: This option is to enable users to check out the Astra MCU SDK from either local or remote (from GitLab).

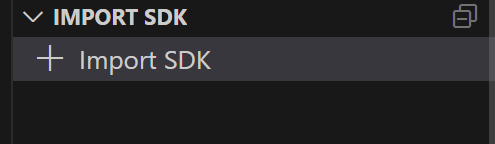

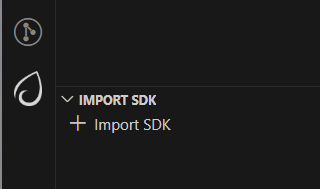

Figure Import SDK

Steps:

1. Click on the “Import SDK” button under the IMPORT SDK view.

2. This will open the web view to import SDKs both from local and remote repositories.

3. Local Import: Under “LOCAL” tab, click on the “BROWSE” button and select the Astra MCU SDK to import. This action will import the Astra MCU SDK and add it to the workspace.

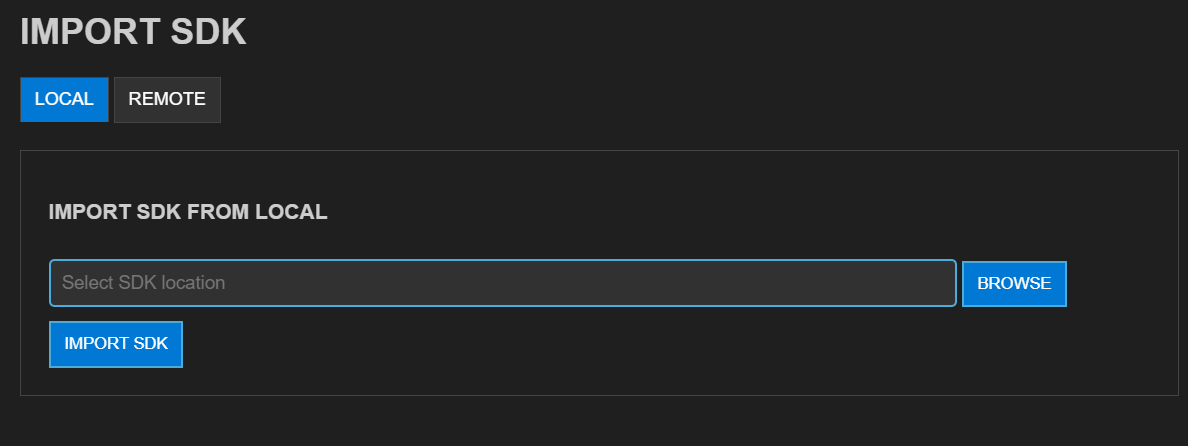

Figure Import SDK from local

4. Remote Import: Under the “REMOTE” tab, click on “CLONE REPO”, paste the repository URL to clone and then select the folder/location to clone into. GitLab needs proper SSH key setup. Cloning large repositories will take time. After cloning, the repository will be imported and added to the workspace in the “Imported Repos”.

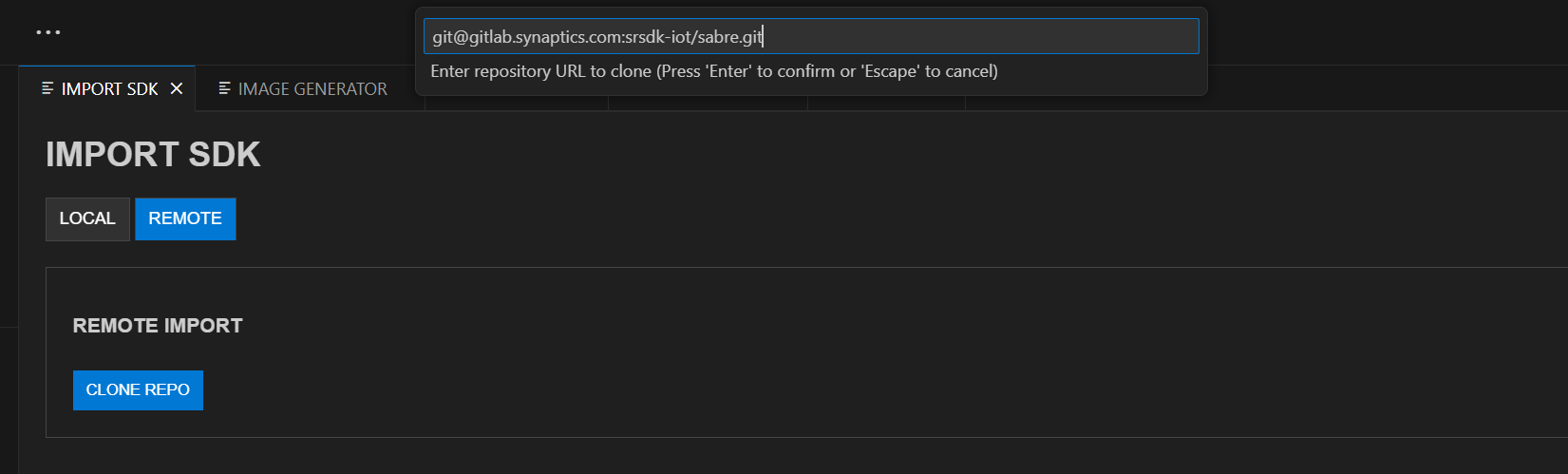

Figure Import SDK from remote

5. Once the Astra MCU SDK is added to the workspace, tool paths will be set in the settings.json. If settings.json doesn’t exist, it will be created; if it does, it will be modified accordingly.

Note: The settings.json, which is updated during tools installation, is used to configure workspace-specific settings such as paths and environment variables needed for proper Astra MCU SDK integration and development.

Imported Repos

Purpose: Provides a quick interface for managing the imported Astra MCU SDK and offers essential actions.

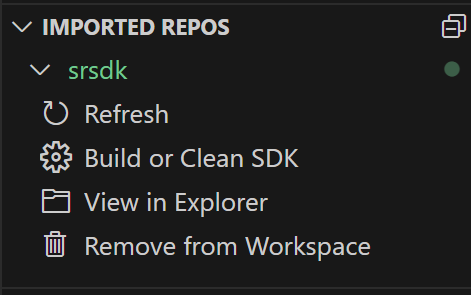

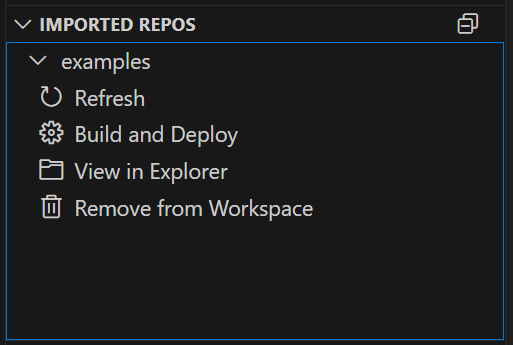

Figure Imported Repos

Options:

1. Refresh: Will reload the current workspace.

2. Build and Deploy: Provides a combined interface for building and flashing the image onto the device and for debugging.

3. View in Explorer: To open the current Astra MCU SDK in explorer.

4. Remove from Workspace: To remove the currently imported Astra MCU SDK from the workspace.

Note: Currently, only one Astra MCU SDK can be imported at a time. Importing multiple SDKs in same workspace is not supported yet. In Windows, the suggested path length of the imported SDK folder should not exceed 100 characters.

Build and Deploy

Purpose: Provides a unified environment to build, image generation, flashing and debugging.

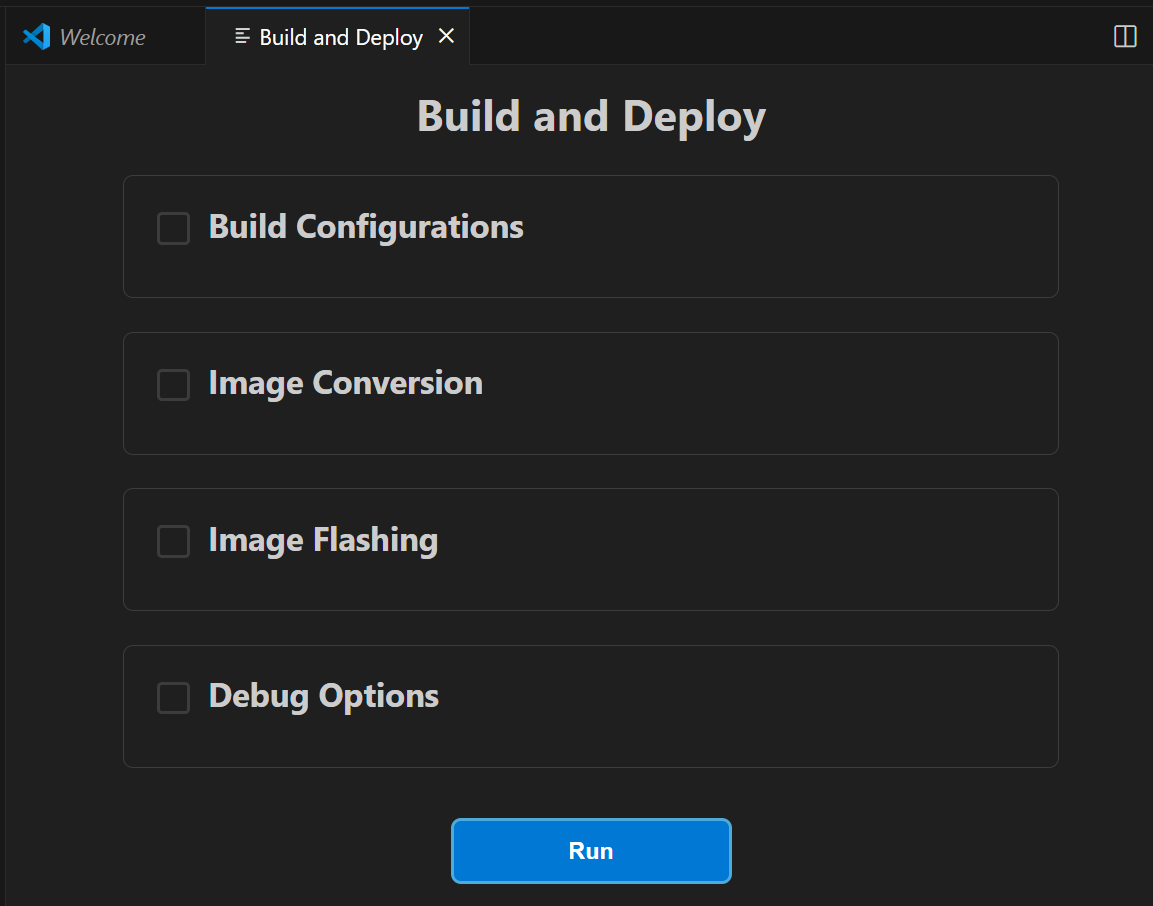

Figure Build and Deploy Webview

Steps:

1. Once the required Astra MCU SDK is imported, within Imported Repos column, click on “Build and Deploy”. This will open the Build and Deploy Webview. Make sure you have imported the “examples” directory for building the custom applications.

2. Once you import the examples directory and open the Build and Deploy webview, a pop up will be displayed to select the SRSDK_DIR path. Use the Browse button to select the root directory or paste the path and click OK. This will set the SRSDK_DIR environment variable in the settings.json which will connect the examples directory with the parent Astra MCU SDK directory.

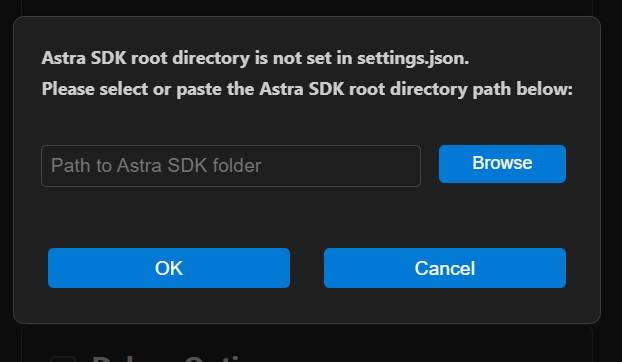

Figure Astra SDK root directory dialog box

Workflow Description: The Build and Deploy webview is a unified interface for multiple operations. Users can perform either one operation at a time or combination of operations.

Integrated workflow: This unified webview is used to manage SDK build, binary conversion, image flashing and debugging from a single interface. This provides users with two modes of operation:

1. Unified workflow – Users can configure all required options and

   execute the full workflow in one step. This will build the SDK, generate the binary, and flash it onto the device.

   1. For release build (SDK build → Image generation → Flashing),

      users have to select the Build Configurations, Image Conversion and Image Flashing checkboxes and the required options in each section and then click ‘Run’.

   2. For debug build (SDK build → Debugging), users can select the

      Build Configurations and Debug Options checkboxes and the required options and then click ‘Run’.

   3. For flashing via SWD/JTAG, users can perform a full flash erase

      and then flash the generated binary.

   4. Model flashing remains unaltered - users can first flash the

      model bin and then flash the generated usecase binary.

   5. After each process, the output path is automatically passed to

      the next step for a smoother workflow.

   6. Video streaming remains independent and is not part of this

      workflow.

2. Isolated workflow – Users can perform individual steps

   independently, such as building only the .axf/.elf, generating a binary, flashing an existing binary or debugging.

Tip: When users have to switch between multiple workspaces with the Astra MCU SDK extension open, it is required to refresh the workspace, refer Figure 13 for the refresh option.

Build Configurations

Purpose: To build the project with selected application and configurations.

Working Modes:

• Unified working: For release build type, you can select Build Configurations along with Image Conversion and Image Flashing for integrated workflow. For debug build type you can select Build Configurations along with Debug Options.

• Isolated working: You can select the Build Configurations option alone to just build the selected application.

Build Options:

The SDK currently includes core libraries, drivers, and build tools for SR110 SoC development. This architecture enables applications to be managed independently from the Astra MCU SDK core, with each example being built separately.

1. Build (SDK + App): This checkbox is intended to build and install the SDK with configurations specific to selected Application and compiles the example application.

2. Build App: This checkbox is intended for recurrent builds using pre-built packages.

Steps:

1. Select appropriate build configurations. The currently supported configurations are as follows:

   1. Device: SR110

   2. Project Type: sr110_cm55_fw, sr110_b0_bootloader, tflite_micro

   3. Build Type: Release, Debug, UnitestDebug

   4. Board: Astra Machina Micro

   5. Board Revision: Rev A, Rev B, Rev C, Rev E

   6. Compiler: AC6 and GCC

2. Use a Release build when the binary is intended to be flashed onto the device. A Debug build generates an .axf/.elf file with debug symbols, making it suitable for debugging purposes. Choose the UnitestDebug build option to generate an .axf/.elf file that can be used for running Unity tests.

3. According to the selected “Project Type”, the specific applications will be populated in the “Applications” dropdown.

4. Application: Select the application to be loaded from the dropdown.

Note: Select “unity_test” application only when the Build Type is set to “UnitestDebug”.

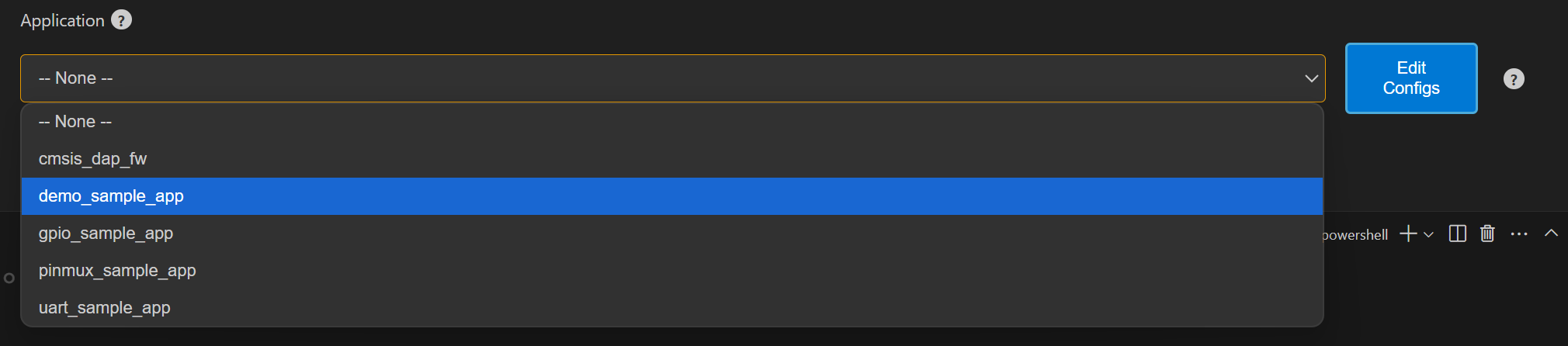

Figure Application dropdown

5. The edit configs button will open the menuconfig layout in the terminal. Users can set the appropriate configurations using this menu.

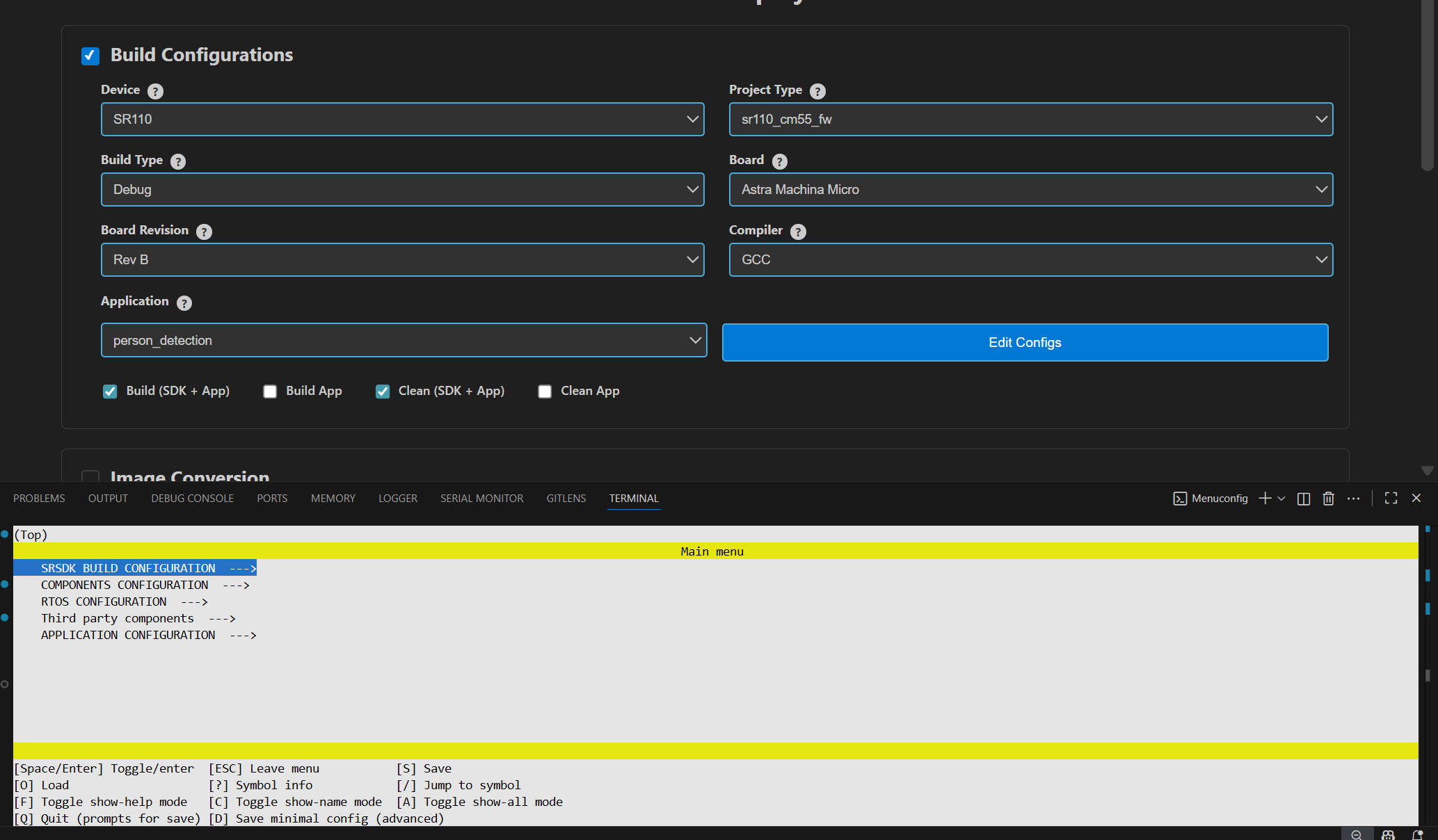

Figure Edit Config view

1. Once the configs are edited and saved to .config, users have the option to save their custom defconfig. A prompt for saving the custom defconfig will appear like shown in below figure.

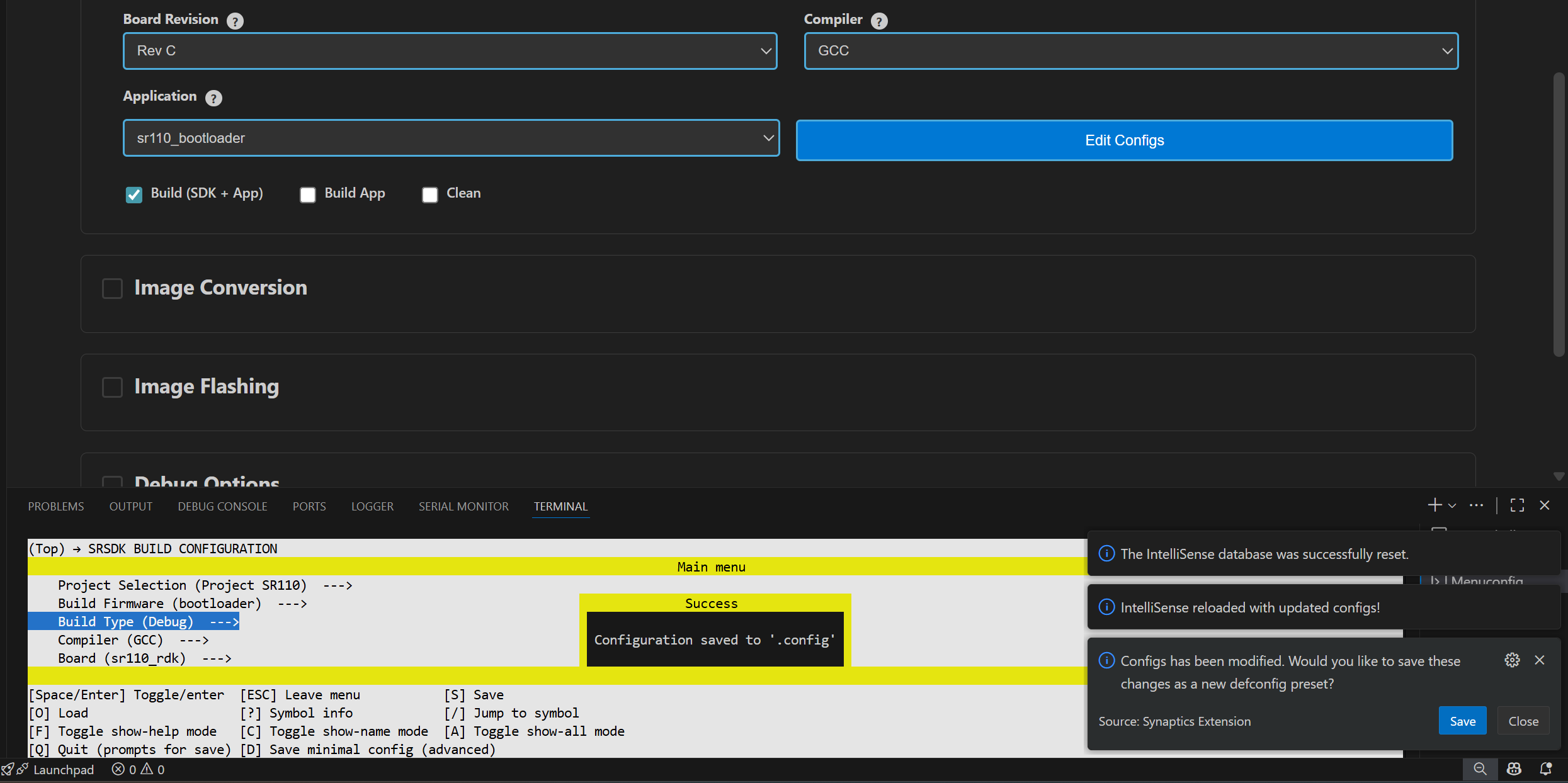

Figure Prompt to save custom defconfig

2. Then users need to enter a filename under which the defconfig should be saved. Once given, the custom defconfig will be saved to /configs folder.

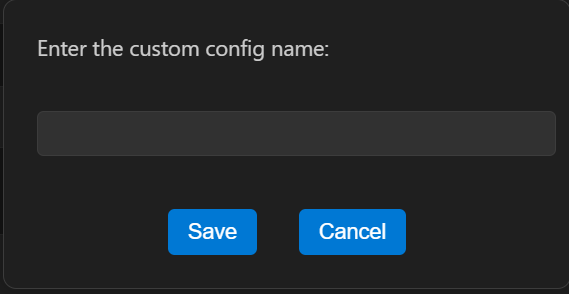

Figure Save defconfig dialog box

3. To change board revisions, after selecting the necessary application, click “Edit Configs” > select “SRSDK BUILD CONFIGURATION” > select “Board” > select “sr110_rdk” > select “RDK Revisions” and choose appropriate revision and save the configuration.

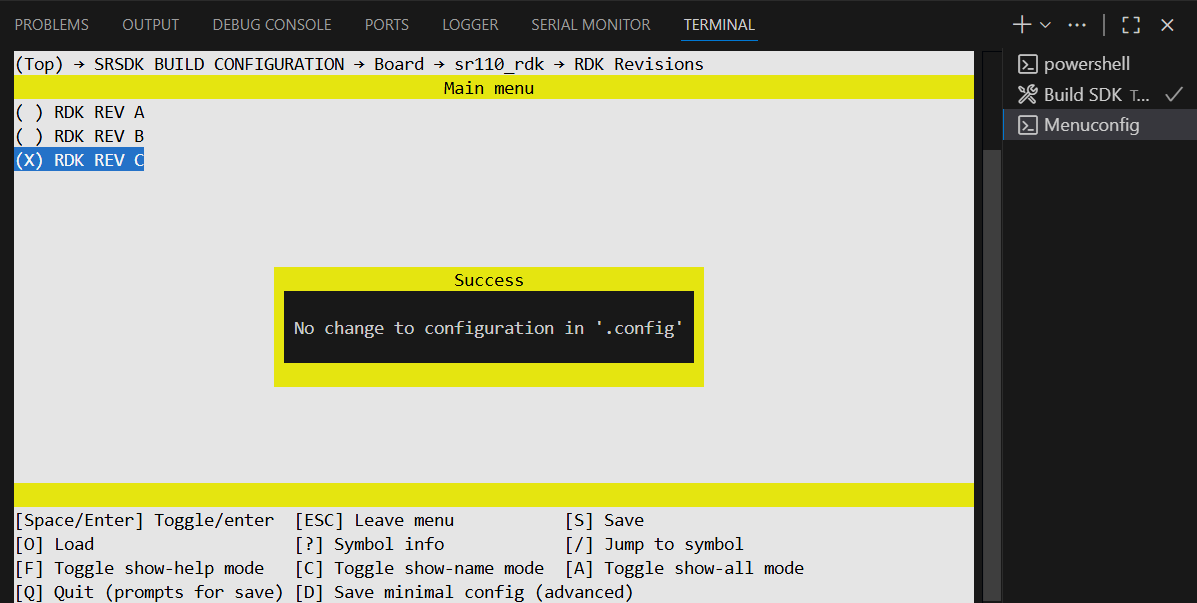

Figure Board revision selection

6. Once the necessary configs are set, select the build option. You can choose either of the below combinations:

   1. Build (SDK + App) – to install and build the application along with the SDK.

   2. Build App – this is for recurrent build.

   3. Clean (SDK + App) – this will clean the build directory along with installed SDK package.

   4. Clean App – this will clean the build directory.

   5. Build (SDK + App) and Clean (SDK + App) – this will first clean the SDK and then proceeds with building the SDK and application.

   6. Build App and Clean App – this will first clean the SDK and then do a recurrent build.

7. Note:

   1. Once the Application is selected and configs are changed, these changes will be written to .config file. Users can confirm this with the notification “.config updated successfully”.



Figure Config update notification

2. After building unity test application, do a clean before building other applications to avoid linker errors.

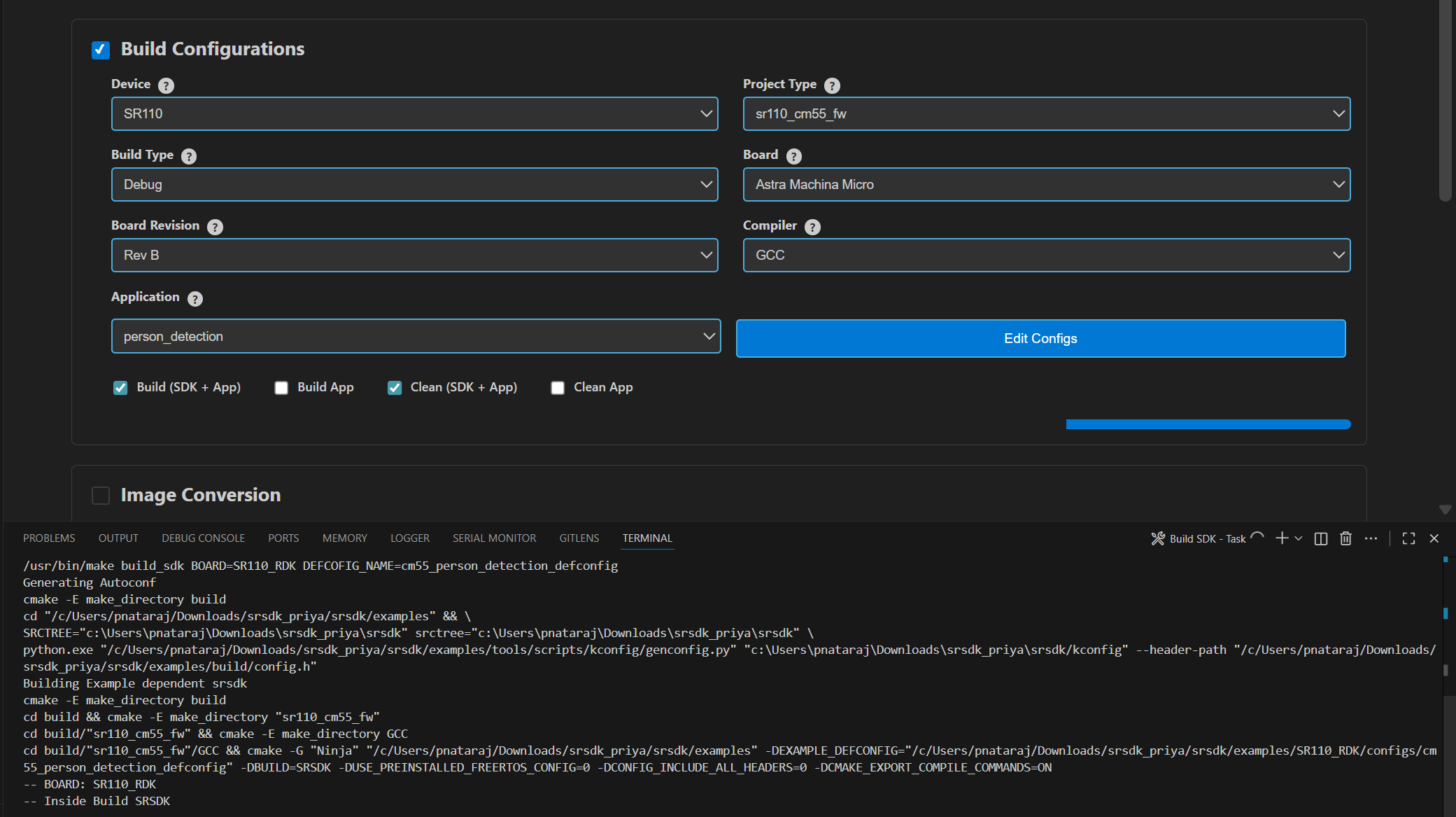

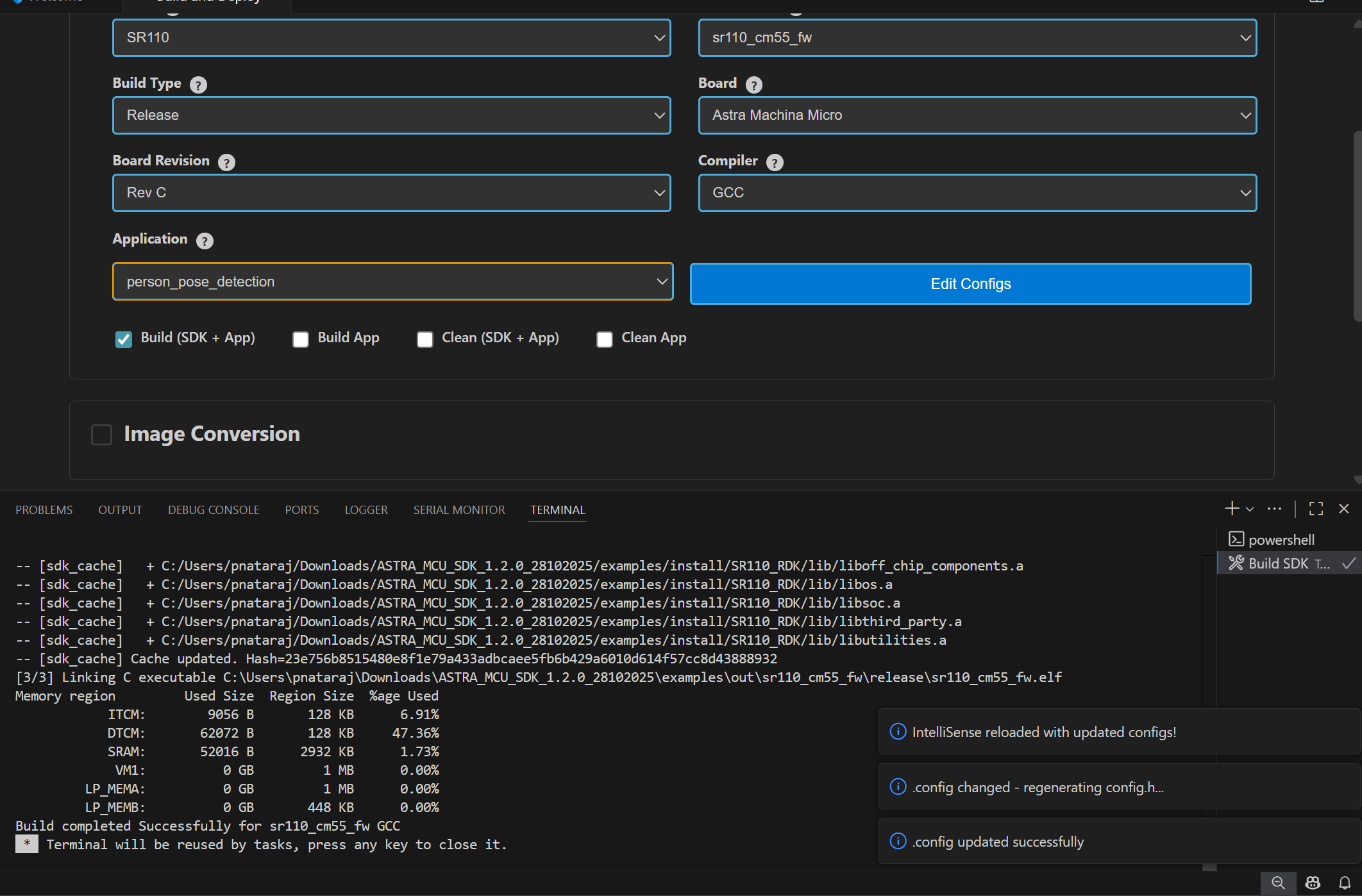

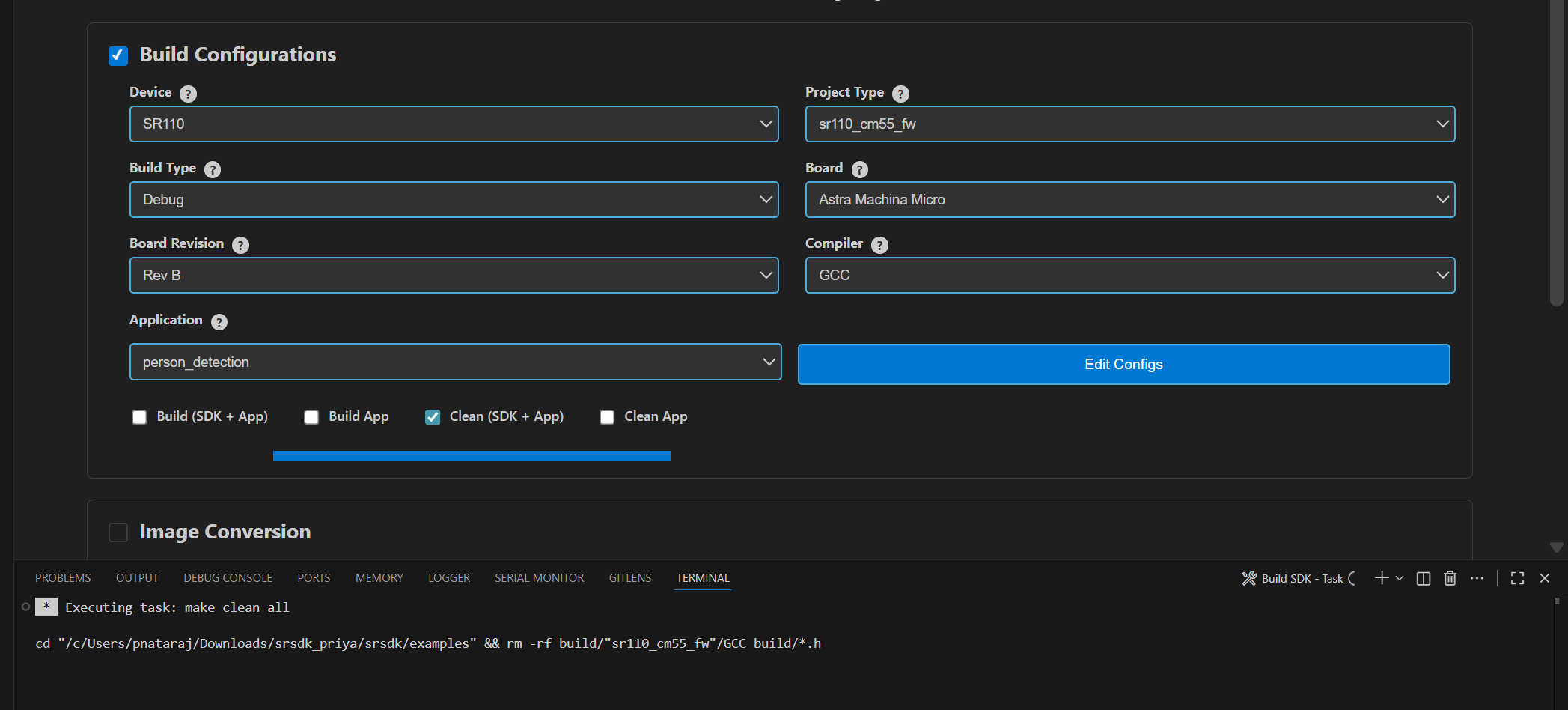

Figure Build log in terminal

Result:

1. The generated axf/elf files can be found at /Astra_MCU_SDK/examples/out/ directory. Upon a successful Release build, the AXF/ELF file path is automatically populated in the Image Conversion panel. Similarly, after a successful Debug build, the file path is automatically populated in the Debug Options panel.

Clean the SDK: Similarly, the Astra MCU SDK can be cleaned by selecting the “Clean” checkbox and clicking “Run” button. The logs will be displayed in the terminal.

Figure Clean SDK logs

Image Generation

Purpose: This option will enable users to convert the axf/elf file generated after the build process to be converted into binary files and will aid in model bin conversion.

** Working Modes:**

• Unified working: You can select Build Configurations and Image Conversion which will build the application and then convert the .elf/.axf into .bin. After build, the release .axf/.elf file path will be populated to the Image Conversion panel automatically.

• Isolated working: You can select Image Conversion panel alone, choose a custom .elf/.axf file and select the necessary options. This will just convert the selected file into binary file.

Figure Image Generator

Image Conversion – Basic Configurations

Steps:

1. Click on the “Image Conversion” panel.

2. In the file path, already the Release build file path will be pre-populated (if already built for Release option). Also, the user can select a custom axf/elf file for converting using the “Browse” button.

3. The necessary options need to be selected for converting axf or elf to bin.

4. Default options for converting axf/elf to bin – select Flash Image or Host Image checkbox and select Secured Image checkbox.

   1. Host Image – The binary which will be flashed to the RAM memory of the chip.

   2. Flash Image – The binary which will be flashed to the Flash memory of the chip.

   3. Secure – select this checkbox if the chip in use is secured; otherwise, leave it unchecked.

5. Users can also specifically select the “Flash Type” (default is GD25LE128) and “Flash Frequency” (default is 67) values from the dropdown once the Flash checkbox is selected.

6. For generating both Host and Flash images, select both Host and Flash Image checkboxes.

Note: Vs code image conversion uses single slot by default. No option to convert with A/B partition

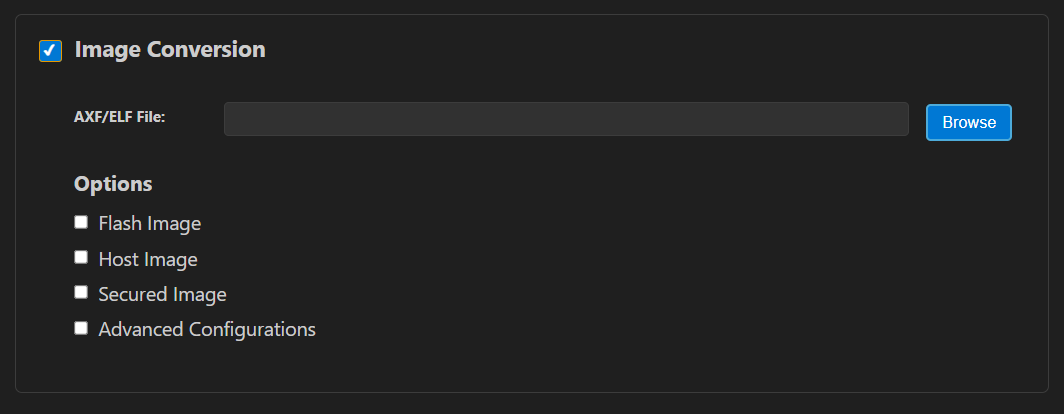

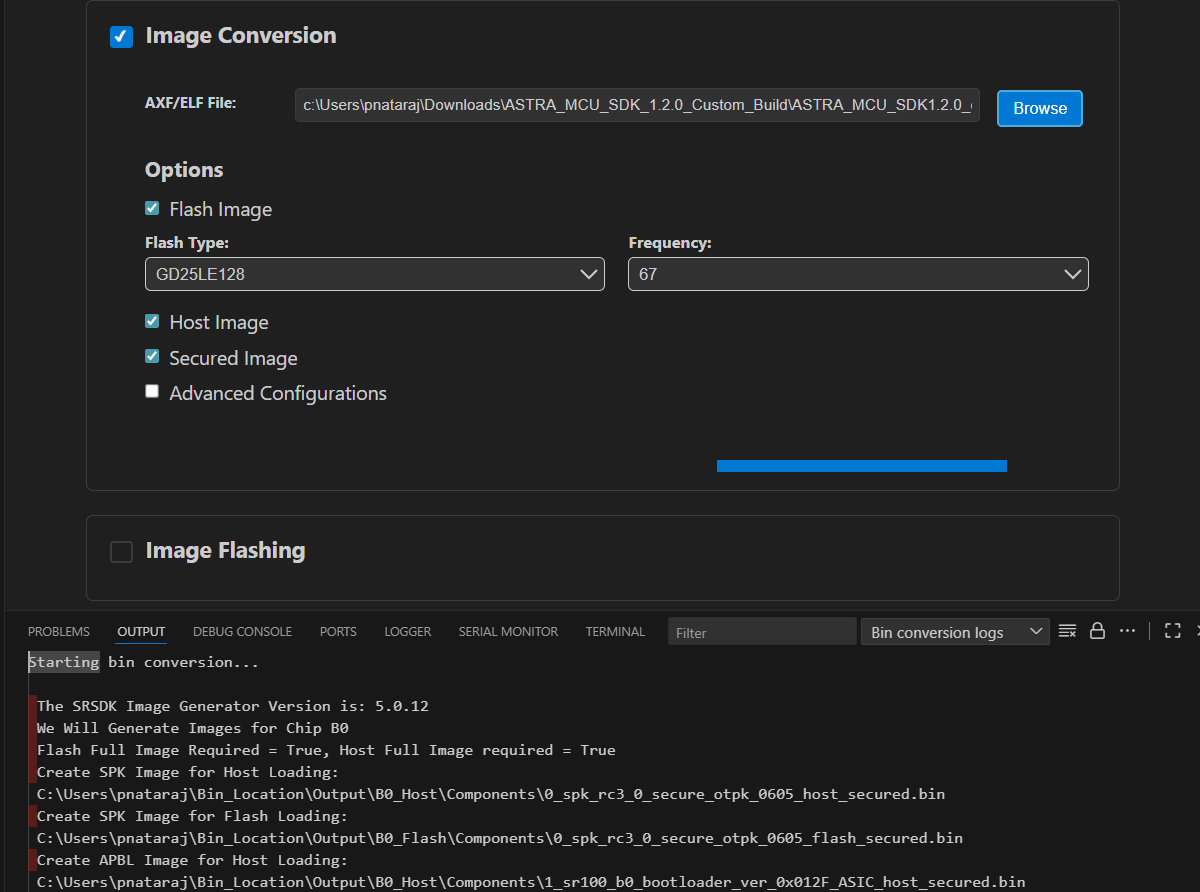

Figure Image Conversion options

Image Conversion – Advanced Configurations

Steps:

1. Select the “Advanced Configurations” checkbox to reveal the advanced selections. Here users can select custom SPK and APBL file paths using the respective “Browse” buttons.

2. Model Bin Conversion: This option enables the conversion of vela model file into binary file. Select the Vela model binary using the “Browse” button and choose “Secure” according to the model.

3. Edit JSON file: Enables users to open and edit the JSON files.

4. Once the options are selected, click on the ‘Run’ button. This will start the conversion process, and the conversion logs will be shown in the Output window.

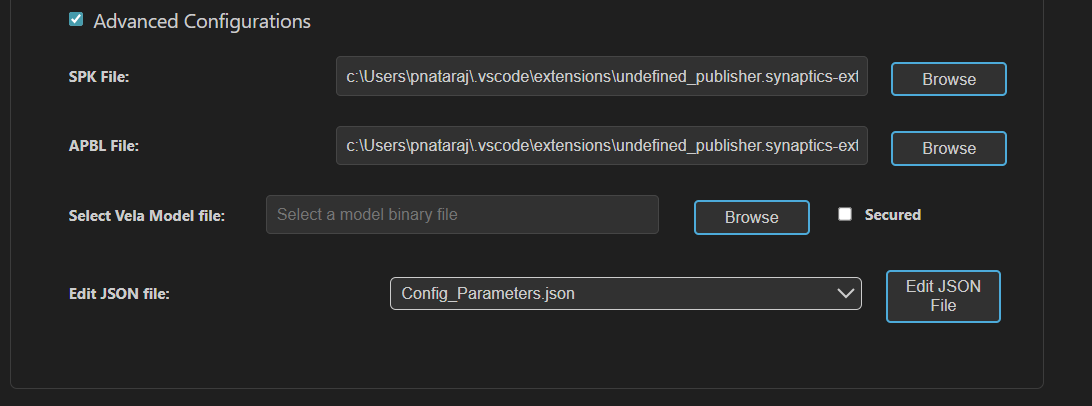

Figure Image Conversion - Advanced Configurations

Result:

1. The converted bin file path will be populated to Image Flashing

   Webview.

2. Once the conversion is completed, the conversion logs and binary

   files will be present in the /out/bin_files directory.

NOTE:

• The above steps — tool installation, SDK build, and BIN conversion — can be performed in an SSH remote setup or WSL environment. Further steps beyond this (Image flashing, debugging and Video Streamer) are not supported in remote setup.

• After selecting the required options, click the Run button to start the image generation process. Live logs will be displayed in the terminal.

Image Flashing

Purpose: The image flashing option is used to load the image onto the device either in ROM mode or FW mode

Figure Image Flashing Panel

Pre-requisites:

• Install Python and necessary packages using the “Astra SDK Tools Installer” tab to ensure proper working of flashing.

• Ensure that the UART and the target device are properly connected to the system prior to starting flashing.

Working Modes:

• Unified working: You can select Build Configurations, Image Conversion along with Image Flashing. This will build the application, convert the .elf/.axf into .bin and load the binary onto the device.

• Isolated working: You can select Image Flashing panel alone, choose a custom binary file and select the necessary options. This will just flash the selected bin file onto the device.

• Selecting the flash mode:

  • If the CDC port is already available, you can flash the device using FW Update (Application Chip).

  • If the CDC port is not detected, use the SWD/JTAG mode for flashing.

  • For USB sample applications, flashing should be done using SWD/JTAG mode.

Flashing the image in ROM/FW mode

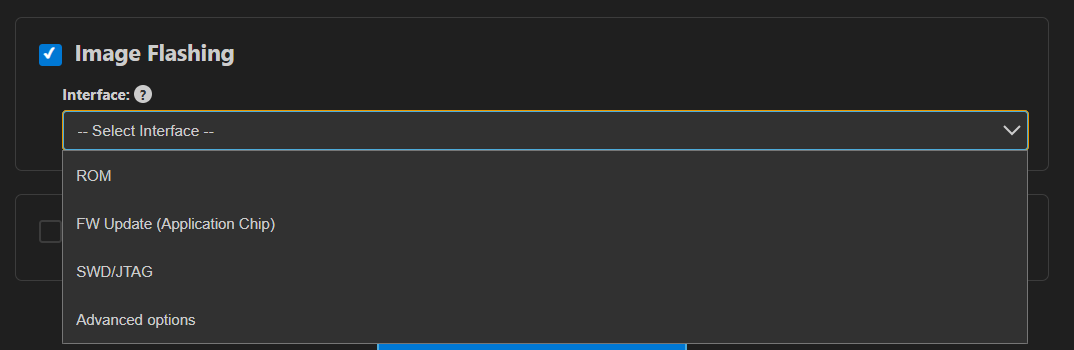

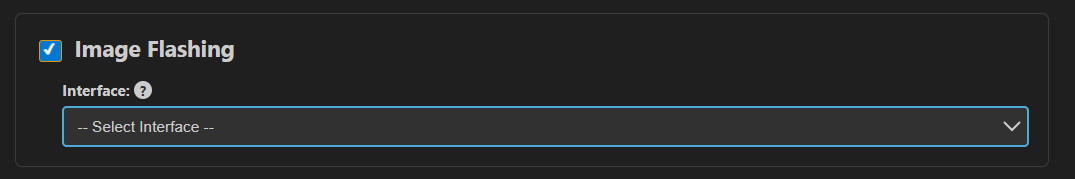

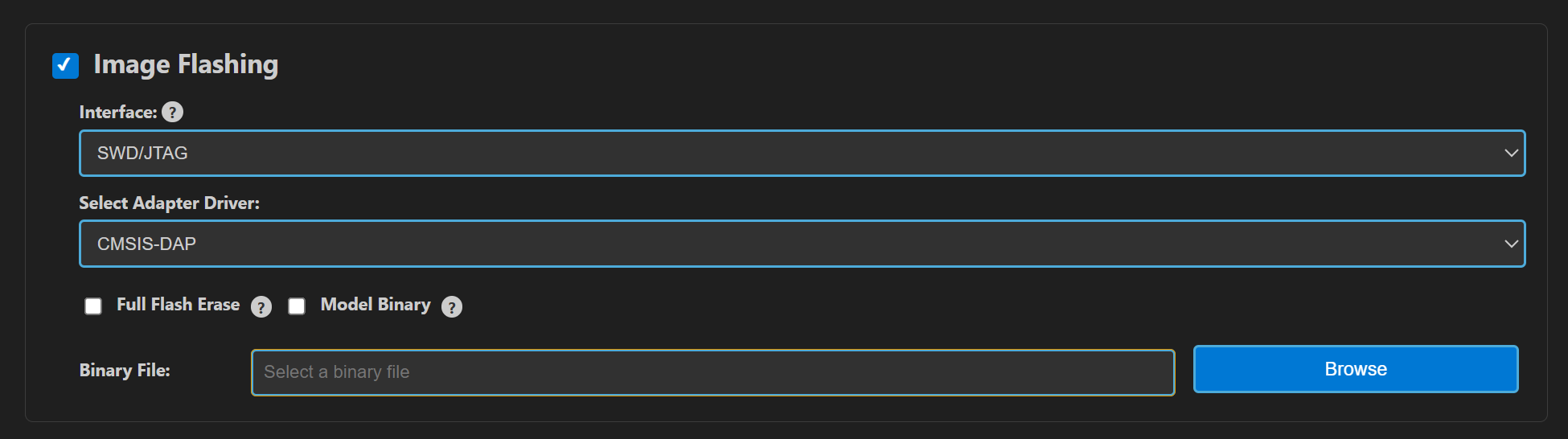

Figure Image Flashing – Interface selection

Steps:

1. Make sure the device connections are properly established.

2. To load the binary into the RAM (using UART connection), select Service type as “ROM” and Select Command as “Load an Image from Binary File”.

3. To flash the image into Flash memory (using UART connection), select Service type as “ROM” and Select Command as “Burn File to Flash”.

4. To flash the image into Flash memory using CDC (FW update – application chip), select Service type as “FW” and Select Command as “Burn File to Flash”.

5. To update the DAP firmware, select “Advanced Options” → FW Update (Debug IC) in Service Type, choose the DAP chip COM port, and click Proceed in the confirmation dialog to flash the DAP-built binary to the Debug IC.

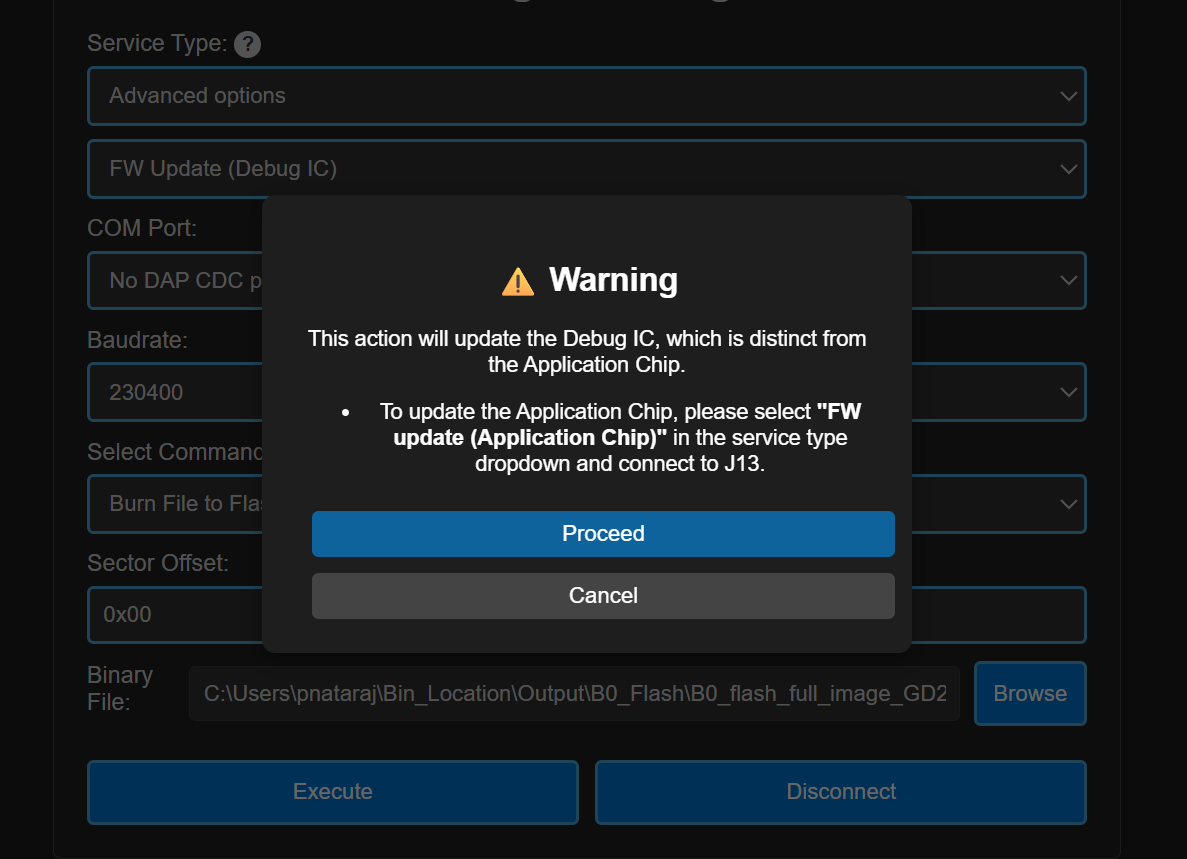

Figure FW Update (Debug IC) - Warning pop up

6. The connected COM ports will be listed under the “COM Port” dropdown.

Note (Linux):

• UART devices connected via USB will appear as /dev/ttyUSB0, /dev/ttyUSB1 etc. Use these for flashing in ROM mode (UART-to-USB connection).

• The available CDC will appear as /dev/ttyACM0, /dev/ttyACM1 etc. Use these for flashing in FW mode (FW update).

Note (macOS):

• UART devices connected via USB will appear as /dev/cu.usbserial-xxxx (e.g., /dev/cu.usbserial-DQ015QCI). Use these for flashing in ROM mode (UART-to-USB connection).

• The available CDC will appear as as /dev/cu.usbmodemxx_xx (e.g., /dev/cu.usbmodem01_00_00_001). Use these for flashing in FW mode (FW update).

7. Select the appropriate Baudrate.

8. The binary file path will be already populated either as dropdown (if both Host and Flash images were converted) or as file path text box (if either Host or Flash alone is converted). If user wants to select a custom file for flashing, they can choose the binary file path using the “Browse” button.

9. Model binary flashing:

   • For VGA usecases, first flash the pre-generated model binary (e.g., person_detection_flash(448x640).bin) and then proceed to flash the generated usecase binary.

   • For VGA usecases, the model bin file will be located at /examples/SR110_RDK/vision_examples/<usecase_folder>/models

   • While flashing the model binary file, please enter the sector offset address from which the model should start flashing at. Default flash sector address to flash the model bin is 0x629000.

10. Click on “Run”, the image loading will start, and the logs will be redirected in the output console.

Figure Image Flashing logs redirected to Output

Result: After flashing, the COM port will be disconnected, and the new CDC will be detected. Logs of the loaded use case can be visualized using the Serial Monitor tab. Select the appropriate COM port and click “Start Monitoring”.

Flashing image using SWD/JTAG

Purpose: This option allows users to flash the binary on to the device using JLink/DAP.

Pre-requisite: Before starting the flashing process, ensure that no OpenOCD or GDB sessions are open in any background process. If these sessions are already running, the new OpenOCD instance may fail to connect properly.

Figure Image Flashing using SWD/JTAG

Steps:

1. Select the Interface as “SWD/JTAG” in the Image Flashing panel.

2. Select the Adapter Driver.

3. The flash binary file path will be pre-populated (if already flash binary is converted) or users can select the custom binary file using the “Browse” button.

4. Full Flash Erase: To execute a full flash erase, enable the “Full Flash Erase” checkbox and click “Run”. This will erase the entire flash memory, preparing the device for a clean binary update.

   1. When the Full Flash Erase option is enabled and no binary file is selected, only a full flash erase will be performed.

   2. When full flash erase checkbox is checked and a binary file is selected, the script will first do a full flash erase and continue to load the binary.

   3. When full flash erase checkbox is not selected, and bin file path is chosen, a sector erase will be done according to the binary size, and the bin file will be flashed.

5. After selecting the usecase binary file to be flashed, click “Run”. This will launch OpenOCD and GDB in separate terminals, establish a connection, erase the necessary memory, and flash the binary.

6. Progress and script logs will appear in the Output window, while flashing logs will be shown in the OpenOCD terminal.

Result: Once flashing is completed, the telnet connection will be dropped. Press reset on the device.

**Steps to flash model binary using SWD/JTAG: **

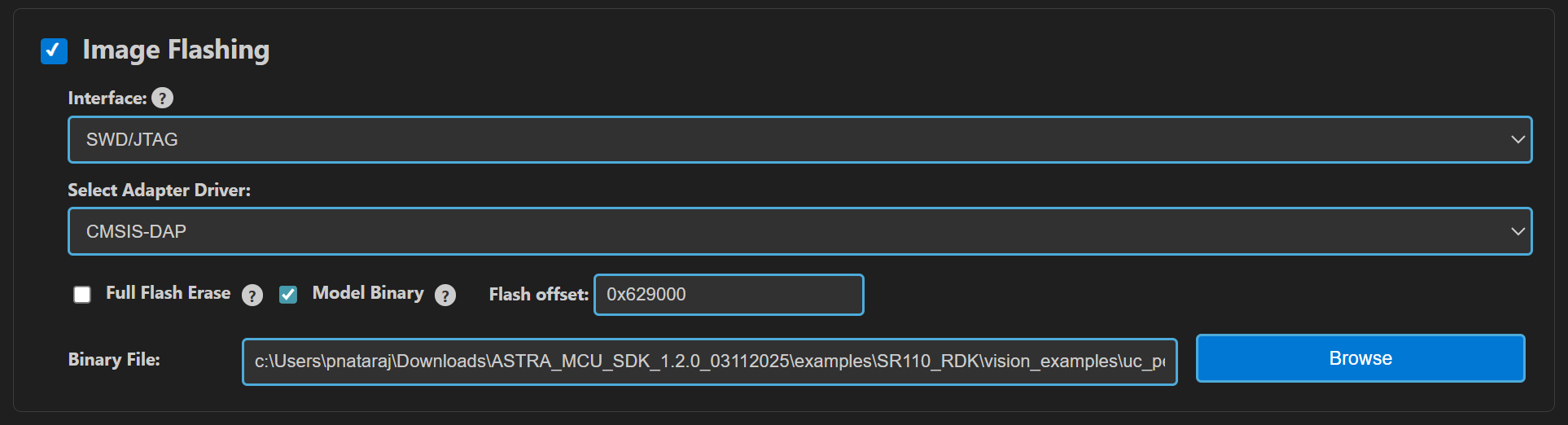

Figure Model binary flashing using DAP

1. Load the model binary file - Select the “Model Binary” checkbox. A text box will appear to enter the flash offset - enter the start address to load the model binary, for example - 0x629000.

2. Browse and select the model binary, then click Run.

3. After flashing both usecase and model bins, click application chip reset. CDC will be detected.

Notes:

• If the CDC is not detected after flashing, try performing a full flash erase and reloading the binaries.

• Since the binaries are flashed using OpenOCD commands, a sector erase is performed for the binary size before flashing. As a result, the flashing process takes a bit more time.

Debugging using GDB in Extension

Purpose: This feature enables the user to debug the Astra MCU SDK using OpenOCD and GDB at the backend, aided by C/C++ extension to start the debug session.

Download and Reset Program

Pre-requisites:

1. Install the following extensions using the “Astra SDK Tools Installer” tab.

• C/C++ IntelliSense, debugging, and code browsing extension in VS Code.

• MemoryView extension to view the memory map while debugging.

• Serial Monitor extension for viewing logs while debugging.

• Memory Inspector CDT extension by Eclipse IDE.

1. Import an Astra MCU SDK before debugging.

2. Ensure that Debug probe and the target device are properly connected to the system prior to starting debug.

Steps:

1. In the Build and Deploy webview, select “Debug Options” panel. This will reveal the debug configurations.

2. To execute the build and debugging processes in a single workflow, open Build Configurations, choose Debug or UnitTestDebug under BuildType, and enable Debug Options. This setup will first build the application using the selected build type and automatically start the debugger once the build is complete.

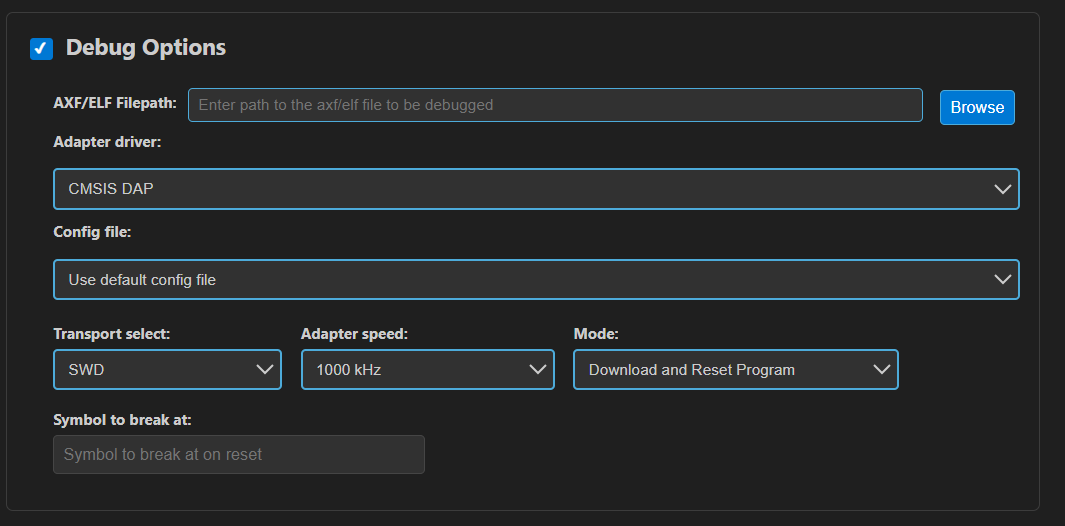

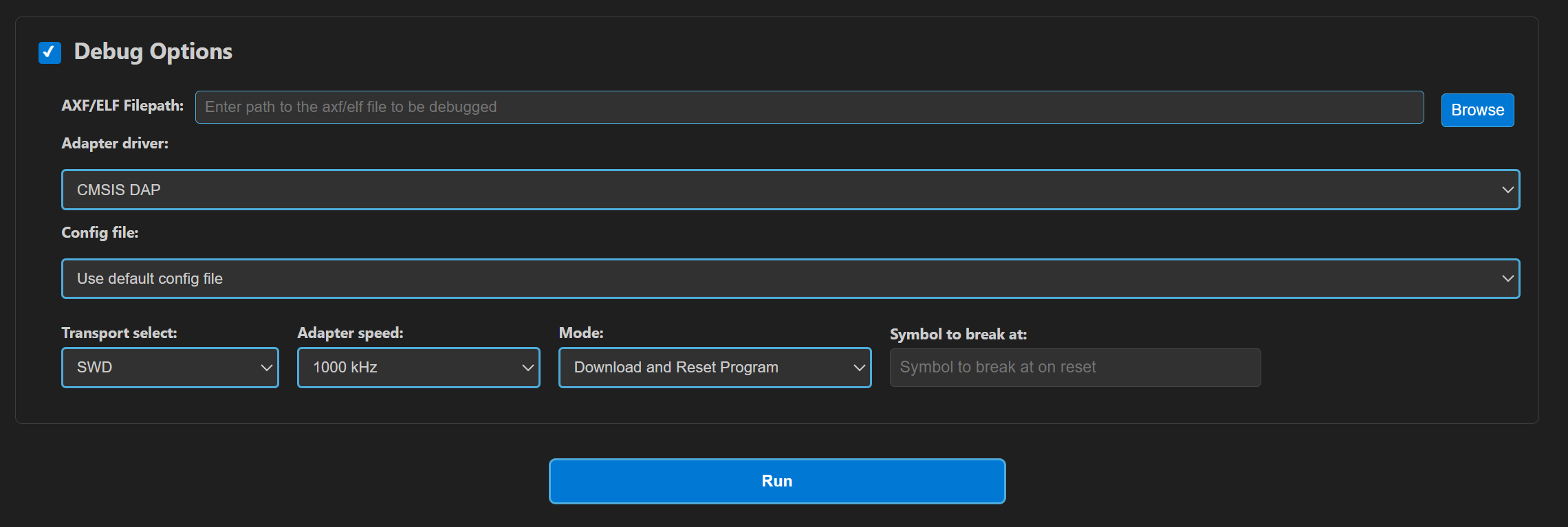

Figure Debug Options Panel

3. In the Dubug Options, use the browse button to select the path to the axf/elf file. Ensure that the file chosen is built with the ‘debug’ build type. If debug axf/elf was already built successfully using the extension, the file path will be automatically populated to the AXF/ELF Filepath.

4. Select the necessary configurations (use the default configs: Transport select – SWD, Adapter Driver – JLink/CMSIS DAP, Adapter speed – 1000 KHz).

   Note: Adapter speed adjustment is supported with J-Link during debugging, but not yet fully functional with DAP.

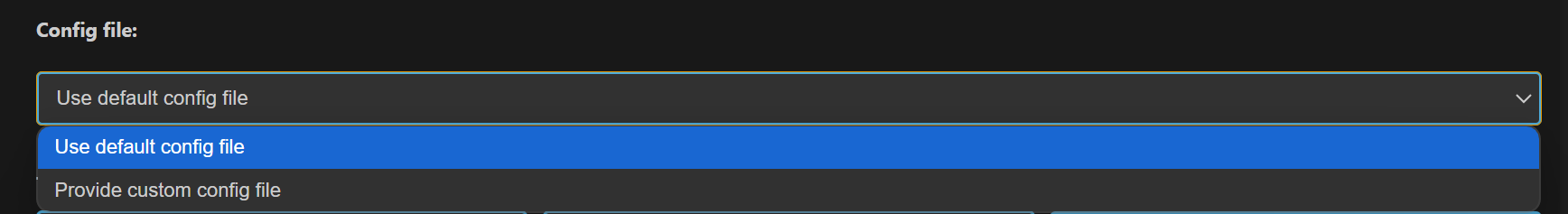

5. Users can either opt to use the default config file or can use custom config file for debugging. Select the appropriate options in the dropdown.

   Note: The default config files are available at <parent directory>/tools/openocd/configs/ folder for reference.

Figure Config File Selection

6. After configuring the settings, choose the desired debug mode from the Mode dropdown. You can select Download and Reset Program, Attach to Running Program, or Attach and Halt Program. For standard debugging, choose Download and Reset Program.

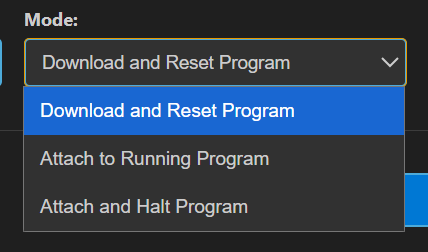

Figure Debug Mode selection

7. After selecting the necessary configs, click Run. This will start debugger, and you can see the status in the terminal window. This will start running OpenOCD in one terminal and start GDB debug session in another terminal.

   Note: If debugging fails to start and you see messages like “Unable to start debugging,” try resetting the DAP chip and attempt again.

8. Once connection is established, the debugger will stop at main.

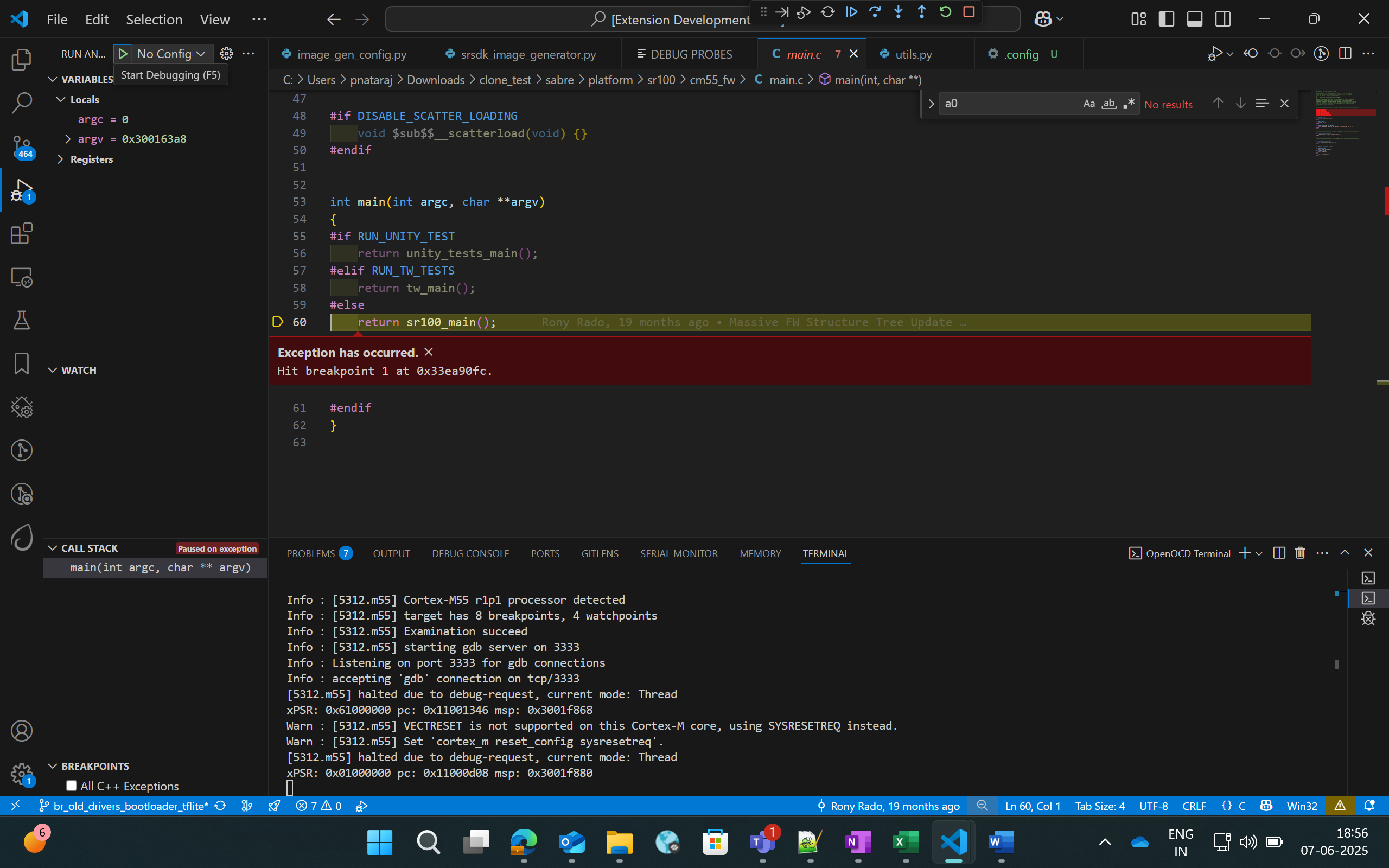

Figure Debugger paused at main

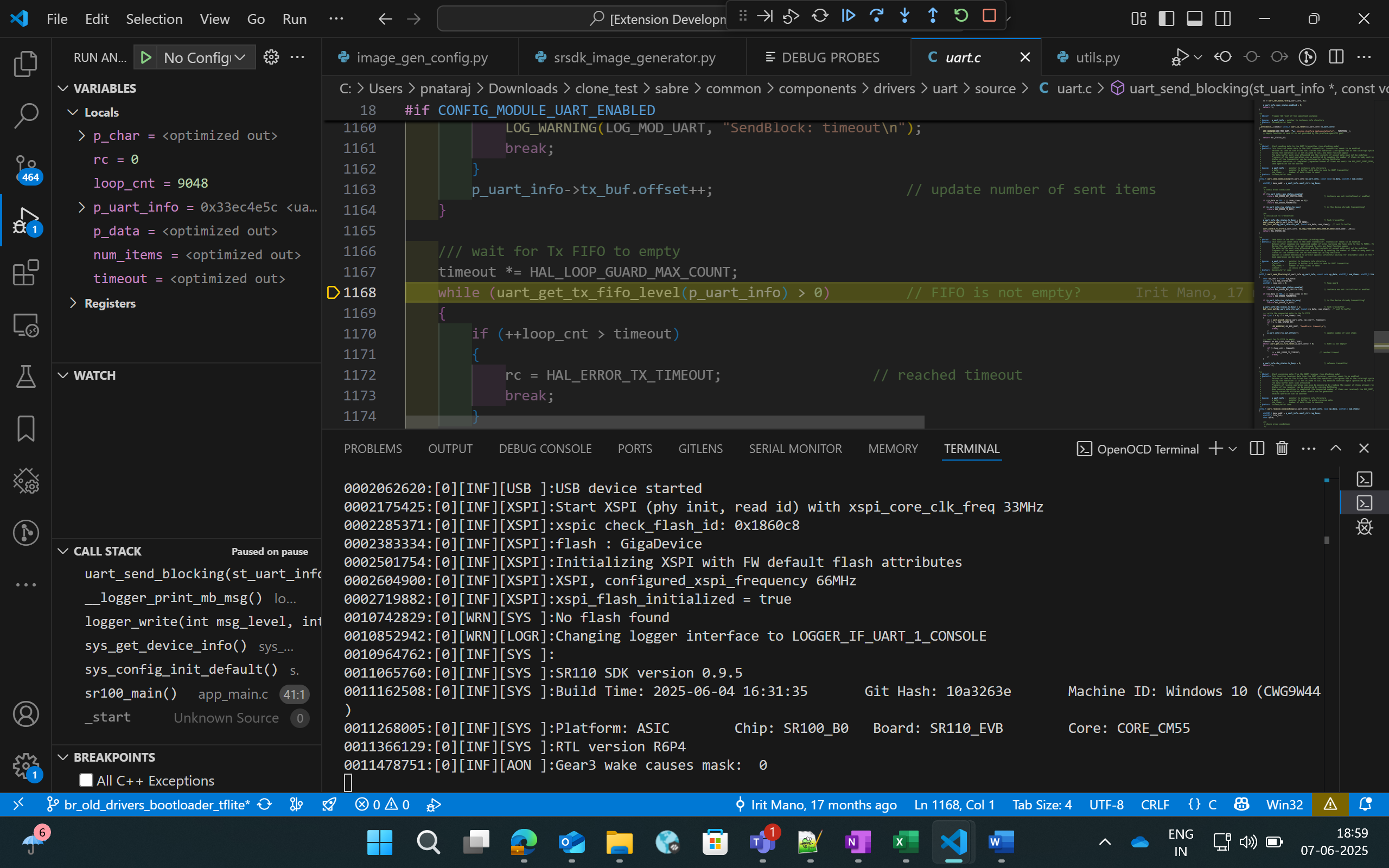

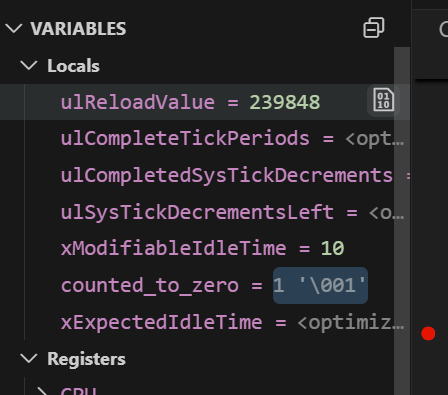

9. Once the debugger is paused, users can view the variables, call stack, registers and the breakpoints in the side panel as shown in the below picture.

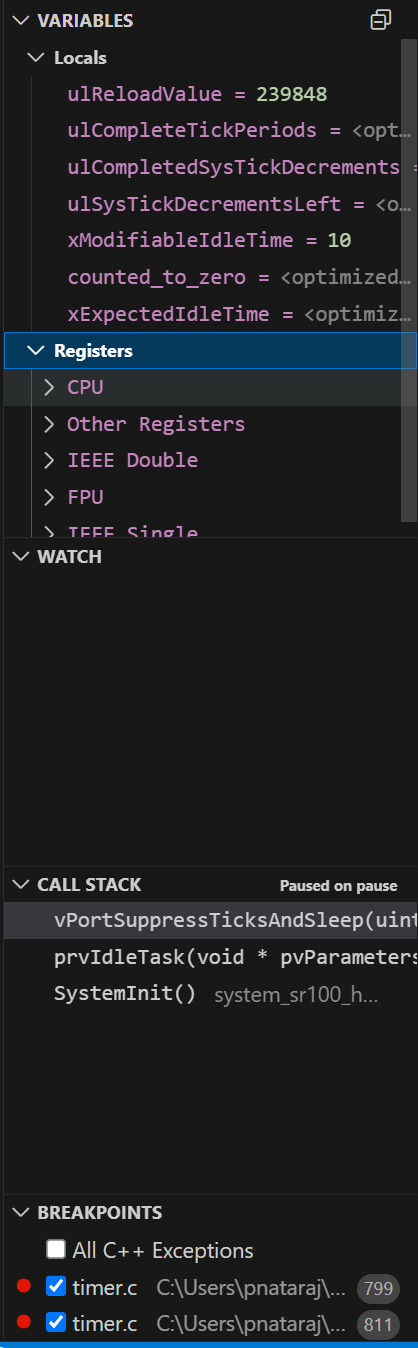

Figure Debugger - Side panel options

Global Variables

Purpose: Since the C/C++ extension used to start the GDB session doesn’t support populating Global variables as they show the Local variables, users can view a list of Global Variables along with its values using this feature.

Steps:

1. While a debug session is active, right-click on the code space to view more options, click on “Show Global Variables”.

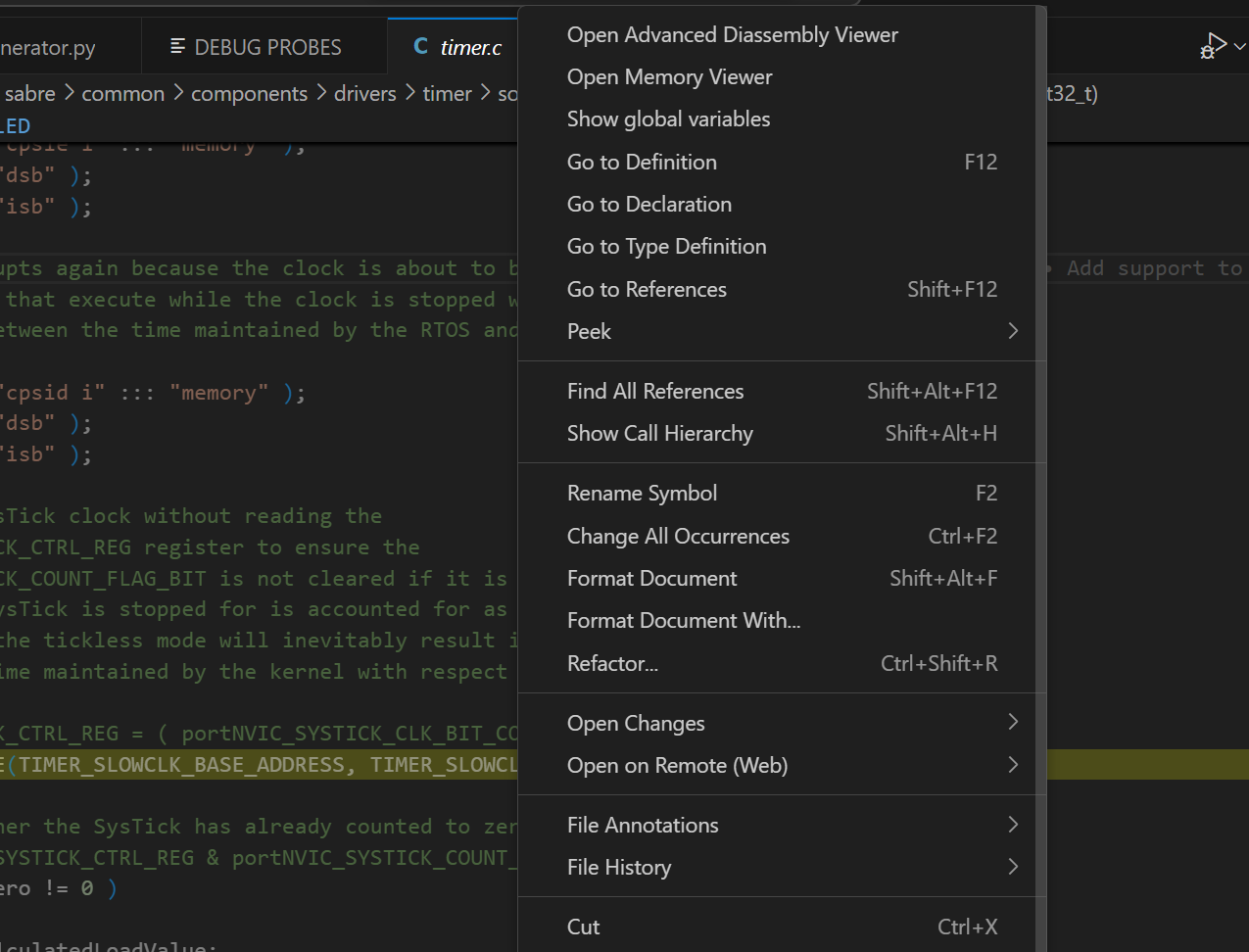

Figure Show Global Variables button

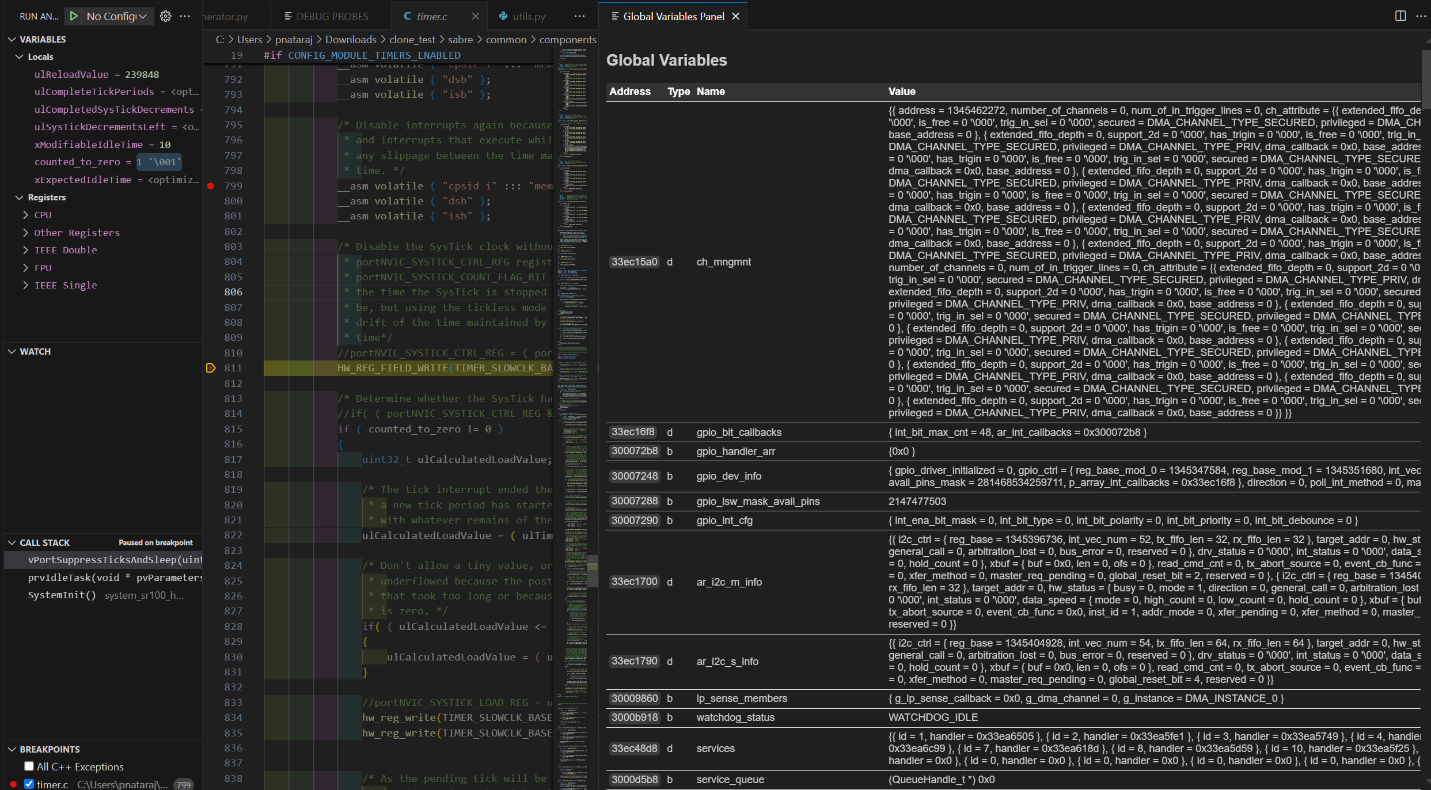

2. This will open a side panel which will list all the Global variables, their address, type and respective values. When this panel is open, it will get refreshed to fetch the latest values whenever the debugger is paused, either manually or while hitting a breakpoint.

Figure Global Variables Panel

Debug Toolbar

Once a debug session is started, the debug toolbar will appear at the top of the window and will contain the buttons for basic debug operations.

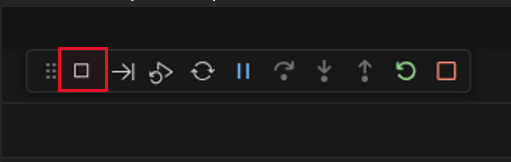

Figure Debug Toolbar

• Reset Options:

Option	Description
Reset and Break at Symbol	Used during debugging when user needs to reset the program and pause execution at a particular symbol. The user can enter the desired symbol in the text box (refer Figure 48), press enter and then click the Reset and Break at Symbol icon.
Reset and Halt	Resets the program, starts a new debug session, and immediately halts execution at Reset_Handler.
Reset and Run	Resets the program, starts a new debug session, and runs it without any halts or breaks.

Figure Symbol to Break at option

• Other Options:

  • Continue/Pause - to continue or pause the execution while debugging. In Linux and MAC, as pausing the debug session was not working, users can click on custom pause button added to this panel to pause the execution.

Figure Custom pause button for Linux and MAC

• Step Over – executes the current line of code without entering any function calls.

• Step Into – Executes the current line and, if a function is called, enters the definition for step-by-step debugging.

• Step Out – Continues execution until the current function returns, then pauses at the calling location.

• Restart - To restart the currently running debug session, with

  the previously used entry point. For example, if user has started a debug session with ‘X’ as entry point, ­­­­­­restart will end the current session and start a new session and stop at same entry point.

• Stop – to stop the current debug session.

Memory Inspection and Manipulation

1. When debugging, users can inspect the raw contents of memory associated with a variable by following these steps:

   1. While debugger is paused, click on the “View Binary Data” button adjacent to the variable.

   2. This action opens a memory view tab which will show the memory contents in hexadecimal bytes, ASCII-decoded text and address offsets.

Figure View Binary Data button

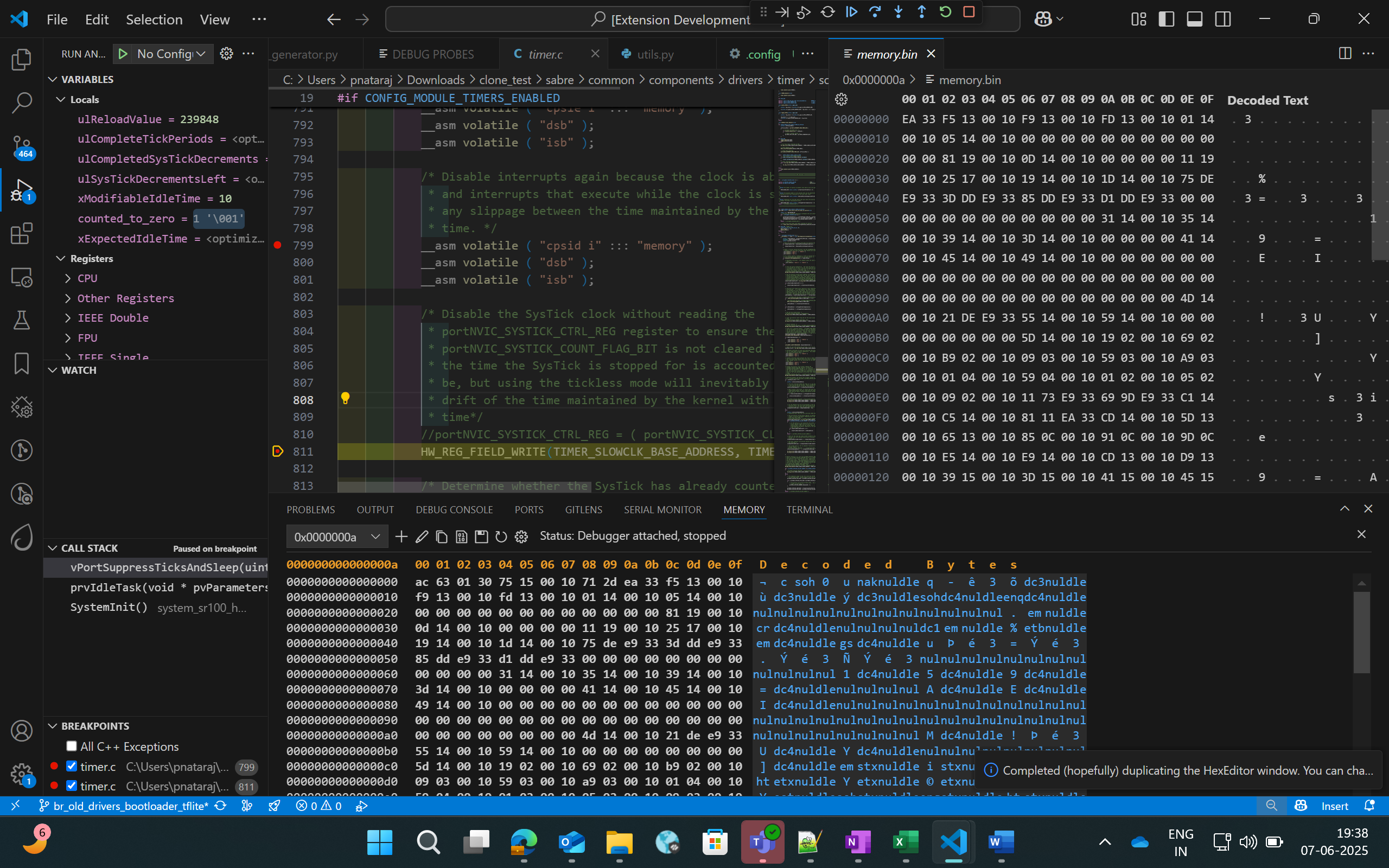

Figure Memory View

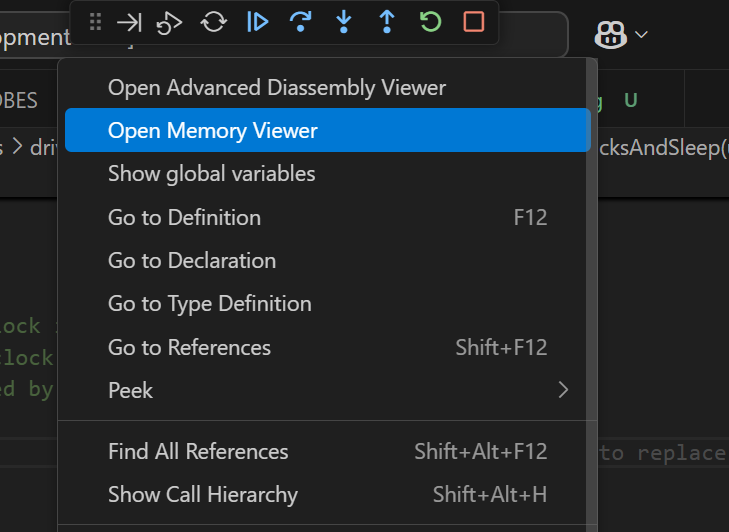

2. To view and edit memory in a particular address, right-click on the code space and select “Open Memory Viewer”. This will open two panels side by side.

Figure Open Memory Viewer button

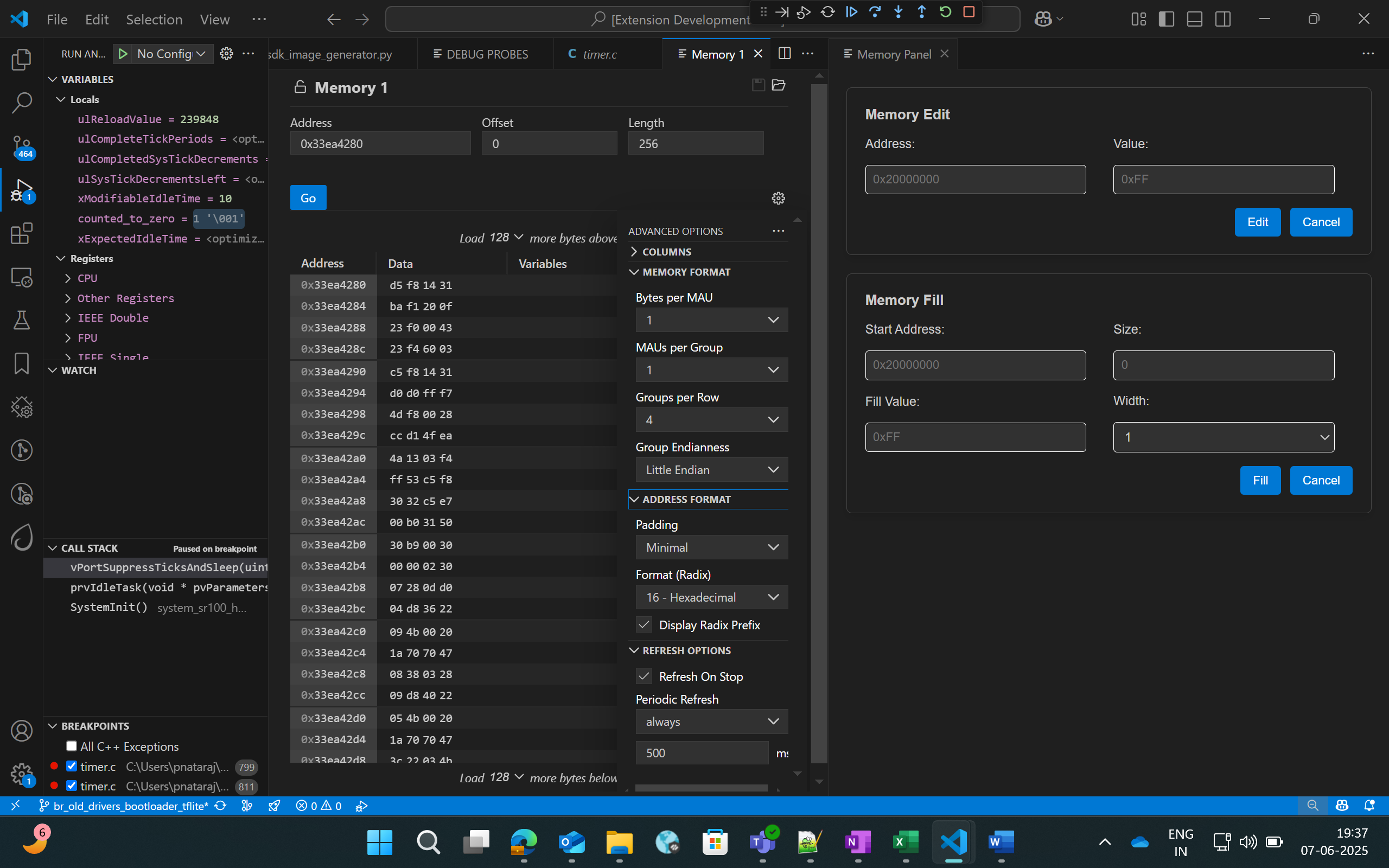

Figure Memory Edit and Fill panel

3. “Memory” tab on the left side supports the listed features:

   1. Multiple memory formats – hovering over any byte displays multiple representations of the selected byte.

   2. Periodic refresh – When enabled, automatically refreshes memory data.

   3. Configurable memory display – customize memory views with options for columns, grouping and formats.

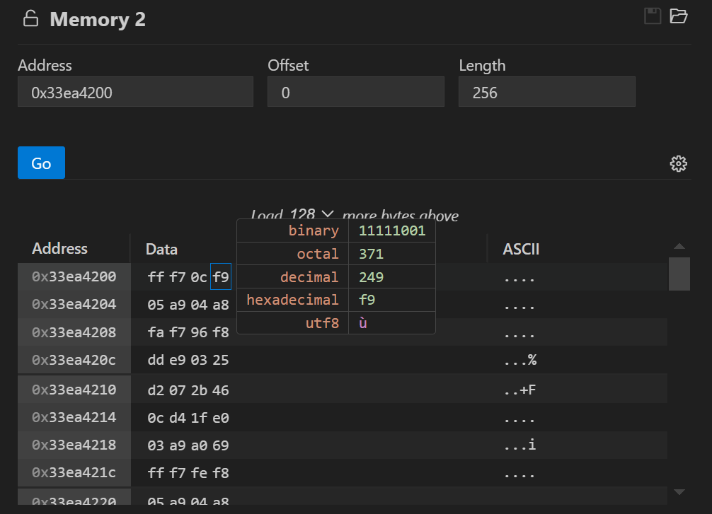

Figure Memory display in multiple formats

4. Whereas the customized memory panel at the right supports memory editing and memory filling capabilities.

   1. Memory edit – this allows the user to modify a specific memory address.

      1. Enter the target memory address and the byte value to be written, and then click “Edit”.

      2. This will write the specific value to the address. To verify this, users can check by enabling the “Periodic Refresh” option.

   2. Memory Fill – this allows filling a memory block with specific fill value.

      1. Start Address: Beginning address of the memory region to start filling.

      2. Size: Total number of bytes to fill.

      3. Fill value: The value (in hex) to repeatedly write into memory.

      4. Width: Number of bytes written per step (1, 2, 3 or 4).

Note:

Always choose a fill value that fits within the selected width. If it’s smaller, the extension will safely pad it with zeros. For example:

• If width is set to 1 byte, you can enter values like 0xFF but values larger than one byte is not allowed.

• If the fill value is shorter that the selected width, it will be automatically padded with zeros to match the width. Example: Fill value: 0xFF and Width: 4 bytes, the memory will be filed as: 0x000000FF.

Disassembly Viewer

Purpose: The Disassembly View displays low-level machine instructions alongside their corresponding memory addresses and decode operations.

Steps:

1. Right-click on the code space and select “Open Advanced Disassembly Viewer” during an active debug session.

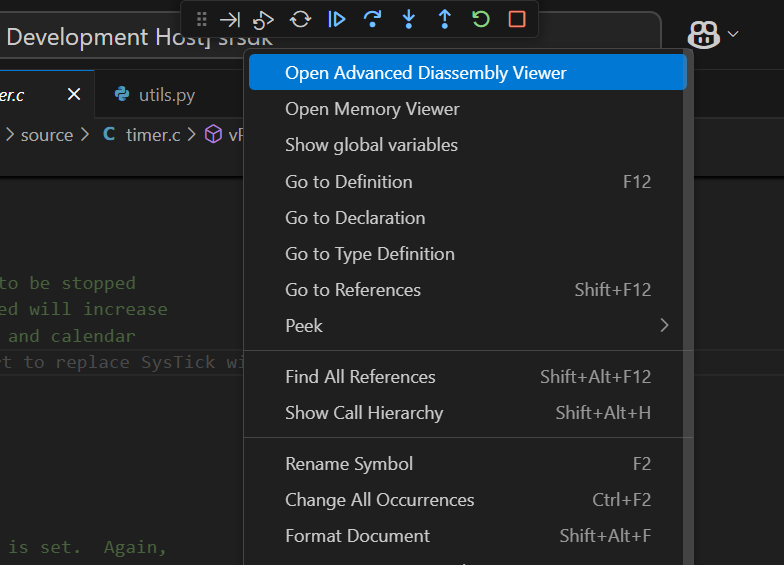

Figure Open Advanced Disassembly Viewer button

2. The basic disassembly view at the left will display the disassembly and facilitates setting breakpoint at a specific address.

3. The custom disassembly panel at the right adds navigation controls:

• Address Input: To jump directly to a specific address to view its corresponding instruction.

• Go to PC: Instantly scrolls to the current Program Counter, helping track the instruction currently being executed.

• Go Back: Navigates to the previously viewed disassembly address.

• Go Forward: Returns to the next address in the history.

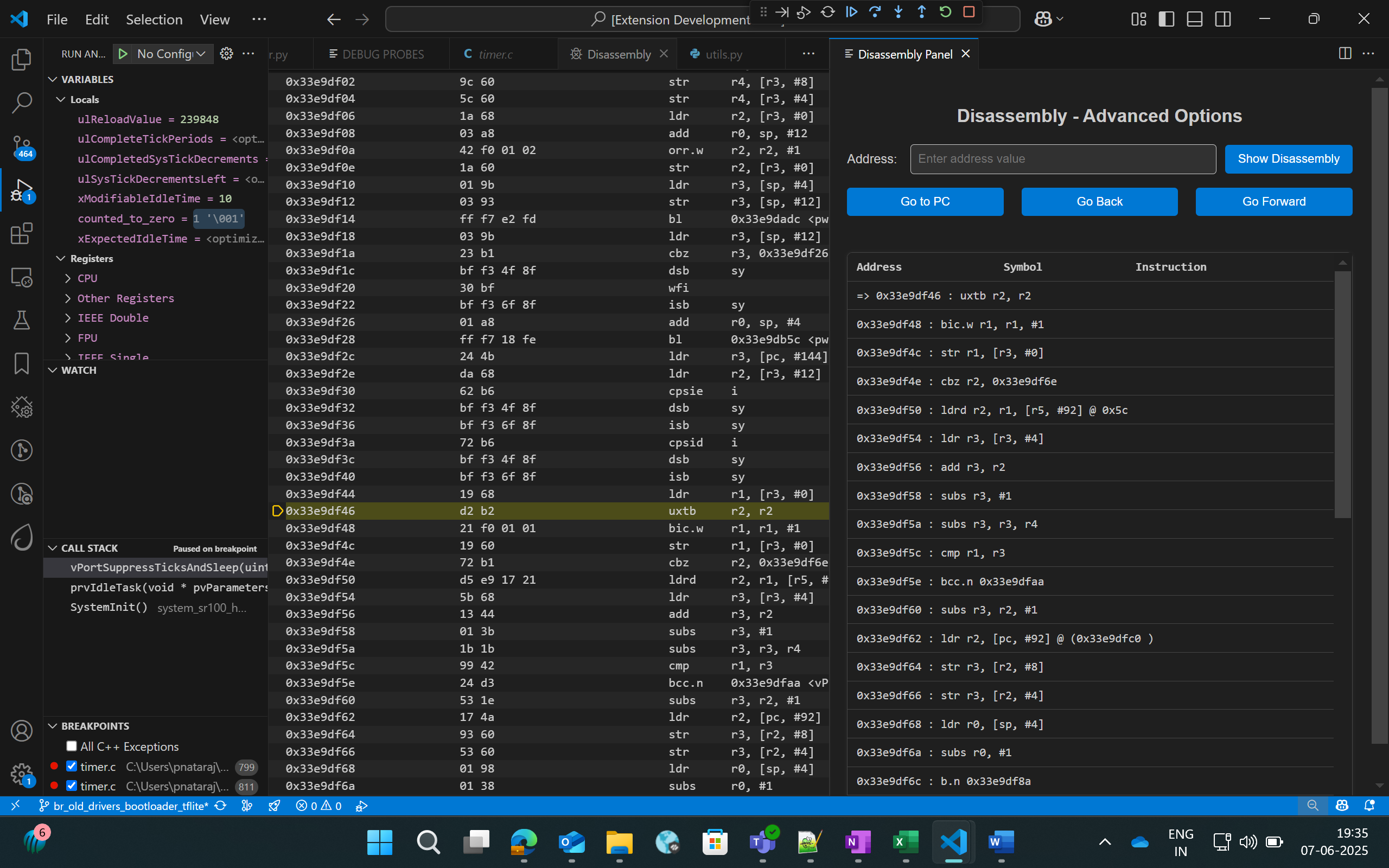

Figure Advanced Disassembly Panel

Logging

• Steps to redirect logs to the OpenOCD terminal while debugging:

  • Click on “Edit Configs” button to open the menuconfig interface in Build SDK panel, select COMPONENTS CONFIGURATION -> Utilities -> LOGGER_DEFAULT_INTERFACE and set LOGGER_IF_CONSOLE or LOGGER_IF_UART_1_CONSOLE.

  • Save this config and then build for Debug build type.

Figure Viewing logs in OpenOCD terminal

• Steps to view the logs using DAP logger port while debugging:

  • Ensure that Serial Monitor extension is installed.

  • Once the debug session has started, in Serial Monitor tab, select the DAP logger port and click “Start Monitoring”.

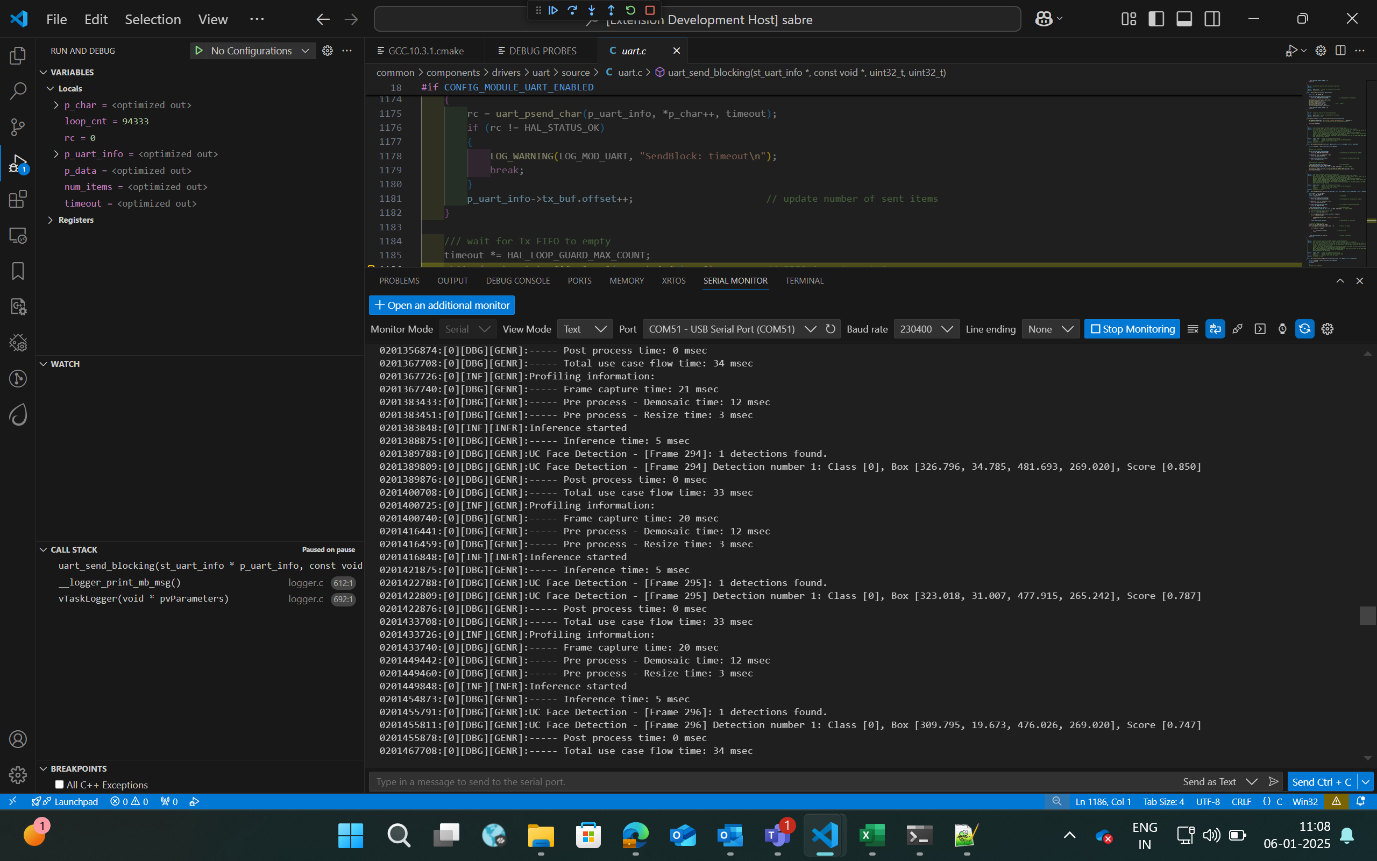

Figure Viewing logs in Serial Monitor

Attach to Running Program

• Follow the steps illustrated in Download and Reset Program for selecting the configurations and then you can select “Attach to Running Program” as debug mode. This option will attach to the already loaded and running binary in the device, enabling you to pause and inspect the memory and program flow.

• If you pause the debugger, you can view the variables, call stack, disassembly view and registers by selecting the appropriate options.

Figure Attach to Running Program

Attach and Halt Program

• Follow the instructions outlined in the Download and Reset Program section to select the appropriate configurations. Then, click on “Attach and Halt Program” to attach to the already running binary on the device. This option will attach and pause execution, enabling you to inspect memory and analyse the program flow.

• If you pause the debugger, you can view the variables, call stack, disassembly view and registers by selecting the appropriate options.

Figure Attach and Halt Program

Video Streamer

Purpose: The Video Streamer option is used to stream the video output of frames while the usecase is being executed.

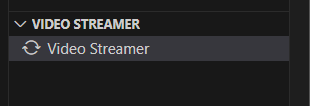

Figure Video Streamer

Pre-requisites:

• Install Python and necessary packages using the “Astra SDK Tools Installer” tab to ensure proper working of video streamer.

• Ensure that the usecase binary to be tested is flashed onto the device and the target device is properly connected to the system prior to starting video streamer.

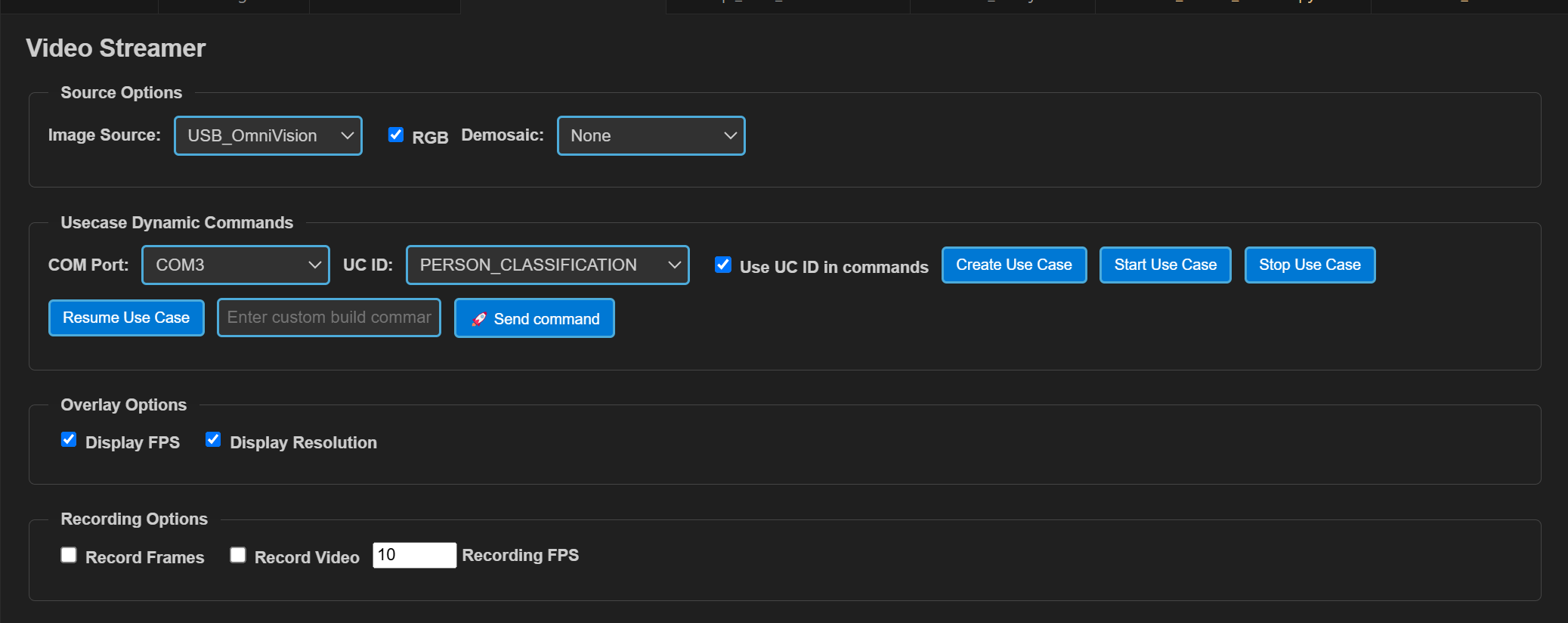

Figure Video Streamer Webview

Steps for Vision Usecases:

1. Source Options:

   1. RGB: If checked, frames will be displayed in RGB format, or it will be displayed as gray frames.

   2. Demosaic: Facilitates the configuration of required demosaic type from the dropdown.

2. Overlay options: The display of FPS and Resolution can be customized in this tab. When enabled, FPS and Resolution will appear on the frame.

3. Recording options:

   1. Record Frames: If enabled, raw frames and overlayed frames will be saved.

   2. Record Video: If enabled, the frames will be saved as video.

   3. Recording FPS: You can vary the FPS in which the video should be saved using the Recording FPS option.

   4. These recordings can be found at:

      1. For windows: C:/Users/<username>/video_stream_output

      2. For Linux and macOS: /home/<username>/video_stream_output

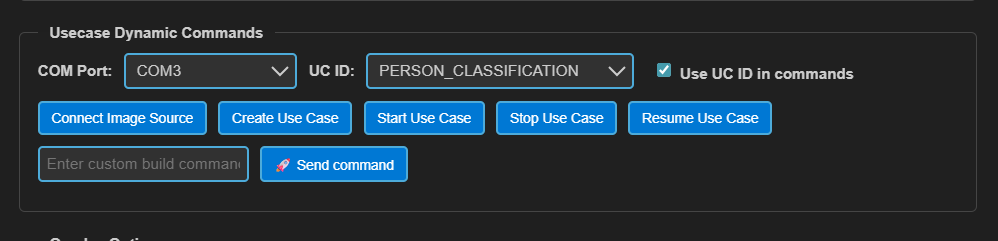

4. Usecase Dynamic Commands:

   1. Select the appropriate options from the dropdown. Once the usecase binary is properly flashed to the device, CDC ports will be listed in COM Port dropdown. Select the CDC port, select the usecase ID, and click “Create Use Case”.

   2. Custom build commands can be entered in the textbox and click “Send command”.

5. Once the usecase is created, click “Start Use Case” button. This will start the usecase and the Video Stream will be shown as a pop up.

6. Click on “Stop Use Case” button to stop the video stream and click on “Resume Use Case” button to resume the video stream.

7. To properly shutdown the Video streamer, follow these steps:

   1. Click the “Stop Use Case” button.

   2. Close the Video Streamer window.

   3. Press Reset and then try starting the usecase again.

8. Recovery steps if the Streamer freezes or encounters issues:

   1. If the Video stream window pops up but is blank:

      1. Close the blank Video streamer window.

      2. Click “Stop Use Case” > Press Reset.

   2. If no Video stream window appears:

      1. Hit Reset

      2. A blank Video stream window will appear, close it.

      3. Click “Stop Use Case” button > Hit Reset

      4. Then try starting the usecase again.

Note: Selecting “Create Use Case” and then “Start Use Case” is sufficient for running non-auto run usecases, “Connect Image Source” is meant for auto-run usecases only.

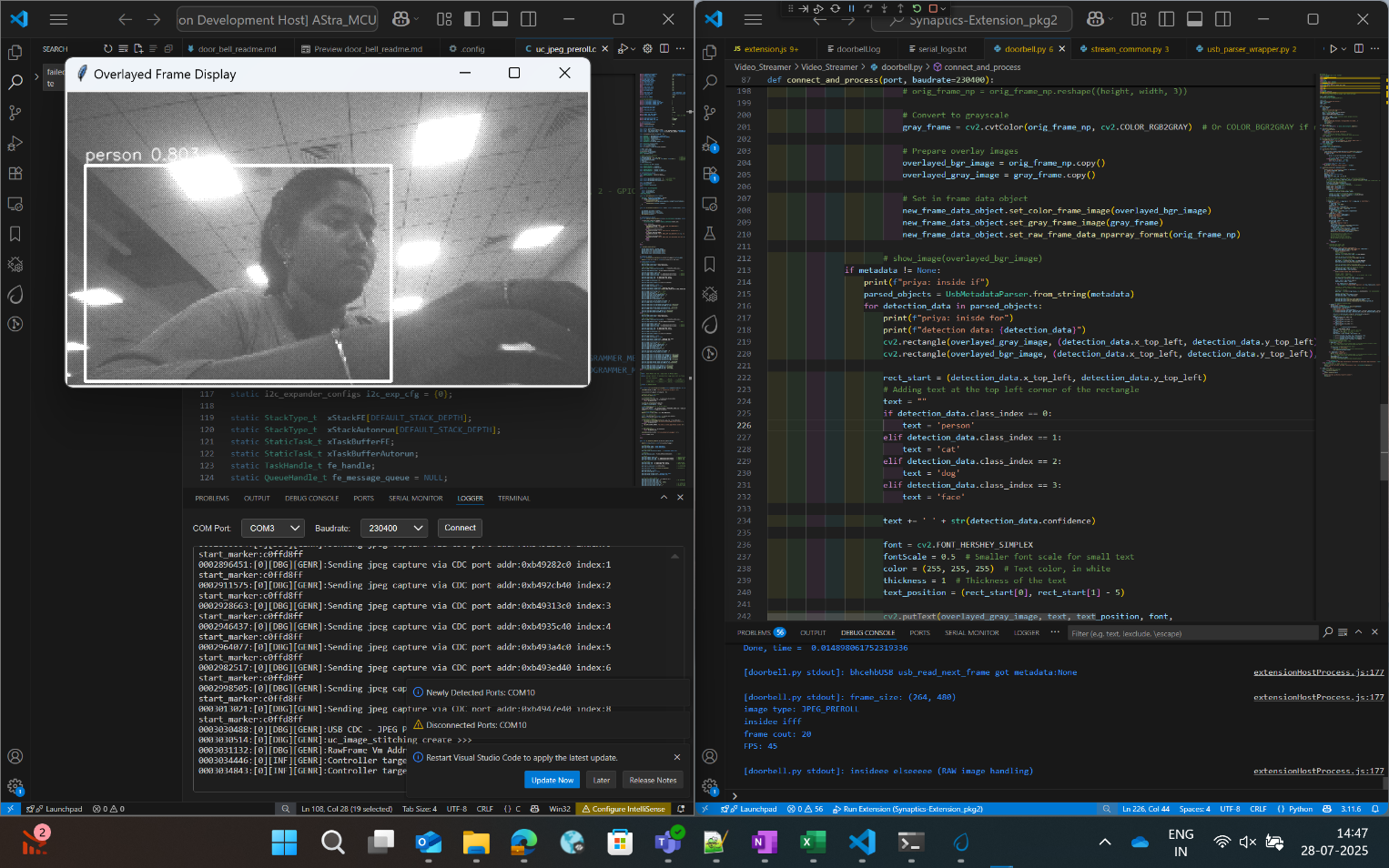

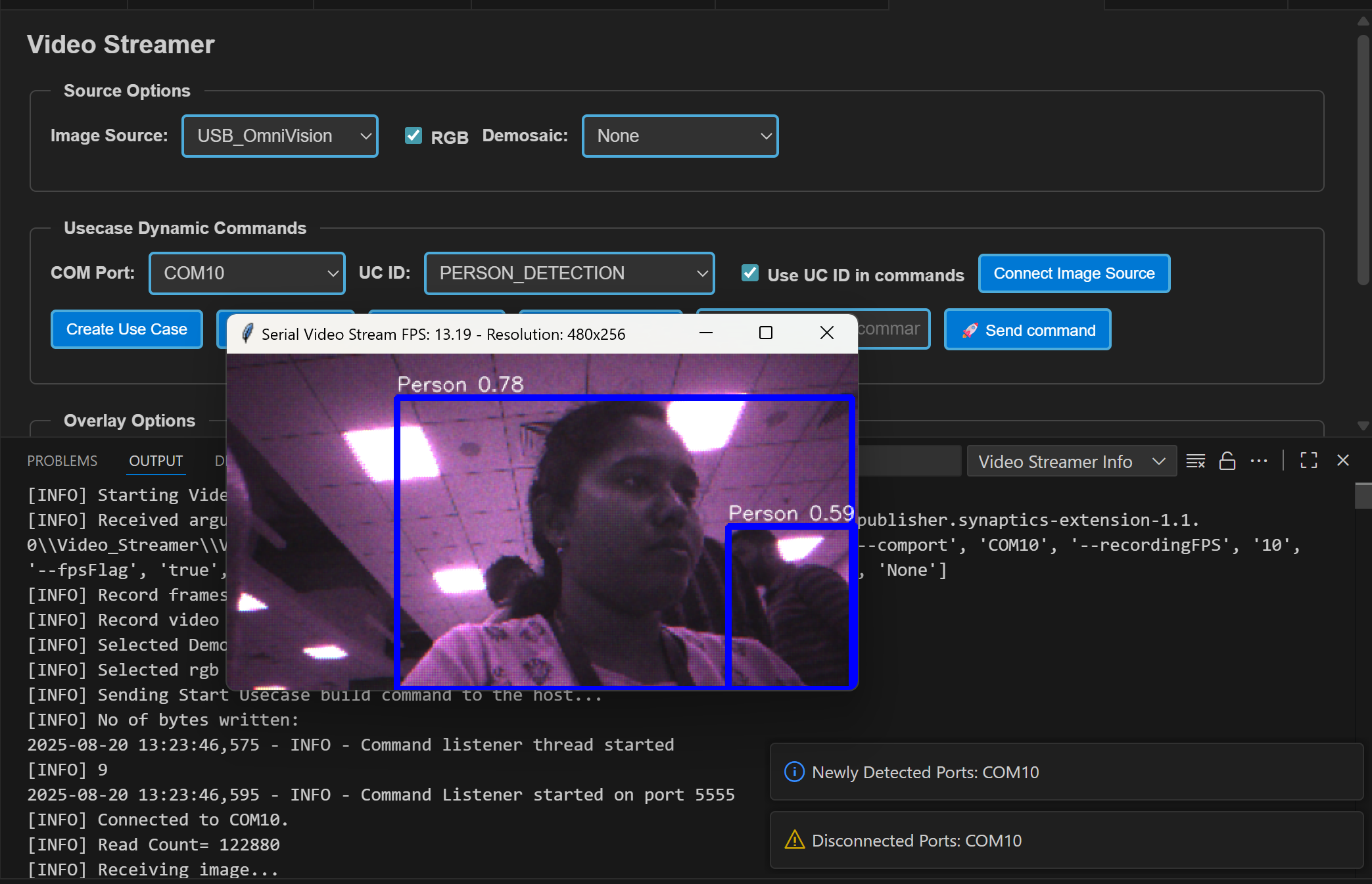

Figure Video Streamer for Person Detection

Doorbell Usecase:

The Doorbell use case is an auto-run application that does not require create or start use case commands. It integrates the UC_JPEG_PREROLL and IMAGE_STITCHING use cases to detect a person and capture, then display, raw and high-resolution images upon detection. For detailed information, refer to Doorbell User Guide.

Steps for Doorbell Usecase:

1. Open the ‘LOGGER’ tab located in the lower panel of VS Code.

2. From the dropdown menu, select the logger port, choose the appropriate baud rate, and click ‘Connect’.

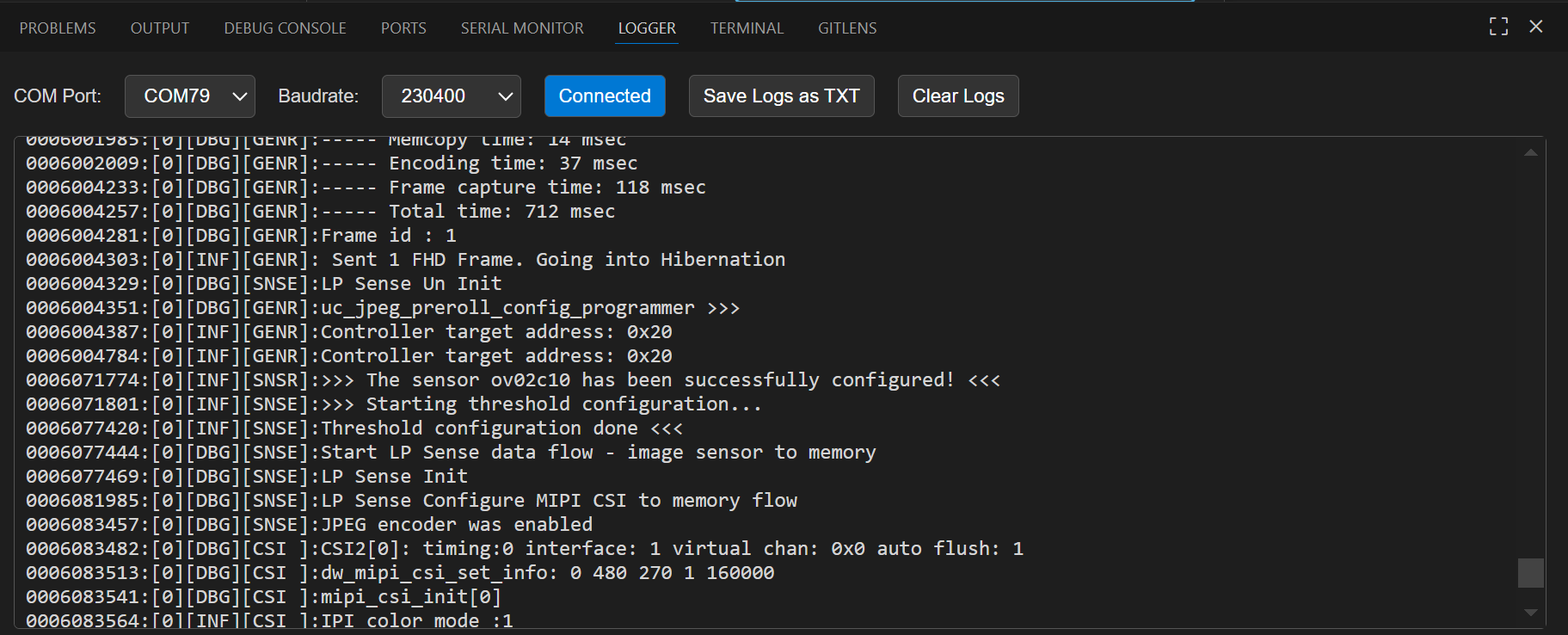

Figure Logger tab

3. Now press Application chip RESET. Once the use case starts running, logs will appear in the logger window. If there is a detection when the device wakes up, the video stream will be triggered automatically.

4. The recorded frames and video will be saved at,

   1. For Windows: C:/Users/<username>/video_stream_output

   2. For Linux and macOS: /home/<username>/video_stream_output

5. You can save the logs as a text file using the ‘Save logs as TXT’ button and clear the logs using the ‘Clear logs’ button.

6. Wakeup Triggers

• Timer (CONFIG_WAKEUP_TRIGGER = 1):

  • Device wakes up every 10 seconds

• GPIO (CONFIG_WAKEUP_TRIGGER = 2):

  • Keep one end of the jumper cable connected to GND

  • Wait at least 10 seconds after the device enters hibernation, then connect the other end of the jumper to the UART0 RX pin to trigger the wake-up

Figure Doorbell usecase video stream

Steps for Autorun Usecases:

1. Select the usecase from the “UC ID” dropdown and click “Connect Image Source” button.

2. This will display the video stream of the usecase which started running.

Figure Connect Image Source button
