Person Classification ML Application

Description

The Person Classification application is a machine learning-powered computer vision solution designed to perform real-time object detection and classification. The application analyzes input from camera feeds and intelligently categorizes detected objects into two distinct classes: person and non-person. This binary classification system enables accurate identification and tracking of human presence within the camera’s field of view. This example supports both WQVGA(480x270) and VGA(640x480) resolutions.

Build Instructions

Prerequisites

• GCC/AC6 build environment setup

• Astra MCU SDK VS Code Extension installed and configured

Configuration and Build Steps

1. Using Astra MCU SDK VS Code extension

• Navigate to IMPORTED REPOS → Build and Deploy in the Astra MCU SDK VSCode Extension.

• Select the Build Configurations checkbox, then select the necessary options.

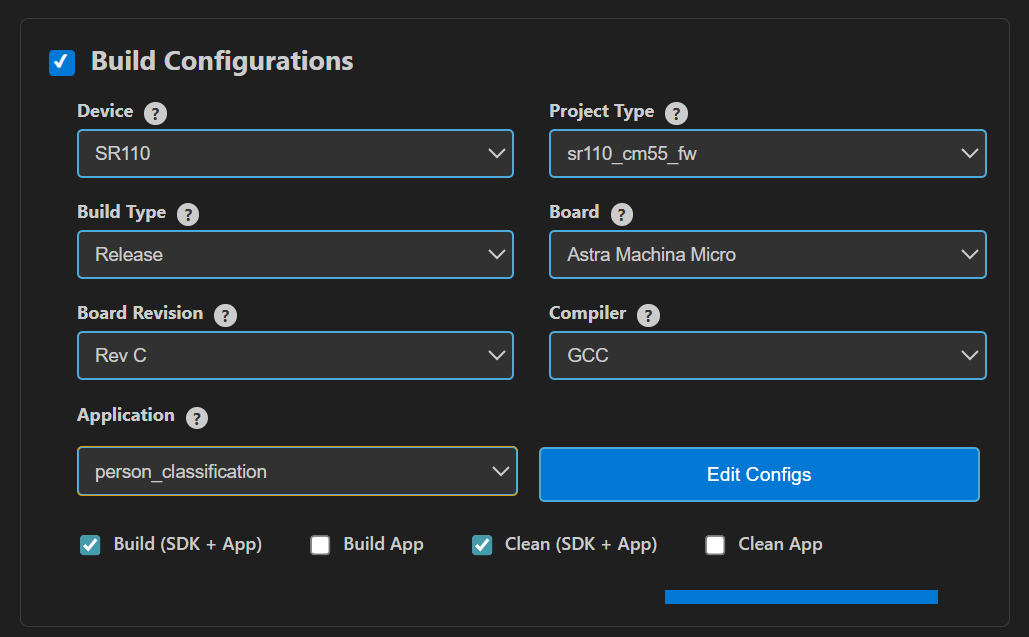

• Select person_classification in the Application dropdown. This will apply the defconfig.

• Select the appropriate build and clean options from the checkboxes. Then click Run. This will build the SDK generating the required .elf or .axf files for deployment using the installed package.

For detailed steps refer to the Astra MCU SDK VS Code Extension Userguide.

2. Native build in the terminal

1. Select Default Configuration and build sdk + example This will apply the defconfig, then build and install the SDK package, generating the required .elf or .axf files for deployment using the installed package.

   make cm55_person_classification_defconfig BOARD=SR110_RDK BUILD=SRSDK


   This configuration uses WQVGA resolution by default.

2. Edit default configs and build sdk + example

   💡Tip: Run make cm55_person_classification_defconfig BOARD=SR110_RDK BUILD=SRSDK EDIT=1 to modify the configuration via a GUI and proceed with build.

   Configuration	Menu Navigation	Action
   VGA Resolution	COMPONENTS CONFIGURATION → Off Chip Components → Display Resolution	Change to VGA(640x480)
   WQVGA in LP Sense	COMPONENTS CONFIGURATION → Drivers	Enable MODULE_LP_SENSE_ENABLED
   Static Image	COMPONENTS CONFIGURATION → Off Chip Components	Disable MODULE_IMAGE_SENSOR_ENABLED

3. Rebuild the Application using pre-built package The build process will produce the necessary .elf or .axf files for deployment with the installed package.

   make cm55_person_classification_defconfig BOARD=SR110_RDK or make


   Note: We need to have the pre-built MCU SDK package before triggering the example alone build.

Deployment and Execution

Setup and Flashing

1. Open the Astra MCU SDK VSCode Extension and connect to the Debug IC USB port on the Astra Machina Micro Kit. For detailed steps refer to the Astra MCU SDK User Guide.

2. Generate Binary Files

   • FW Binary generation

     • Navigate to IMPORTED REPOS → Build and Deploy in Astra MCU SDK VSCode Extension.

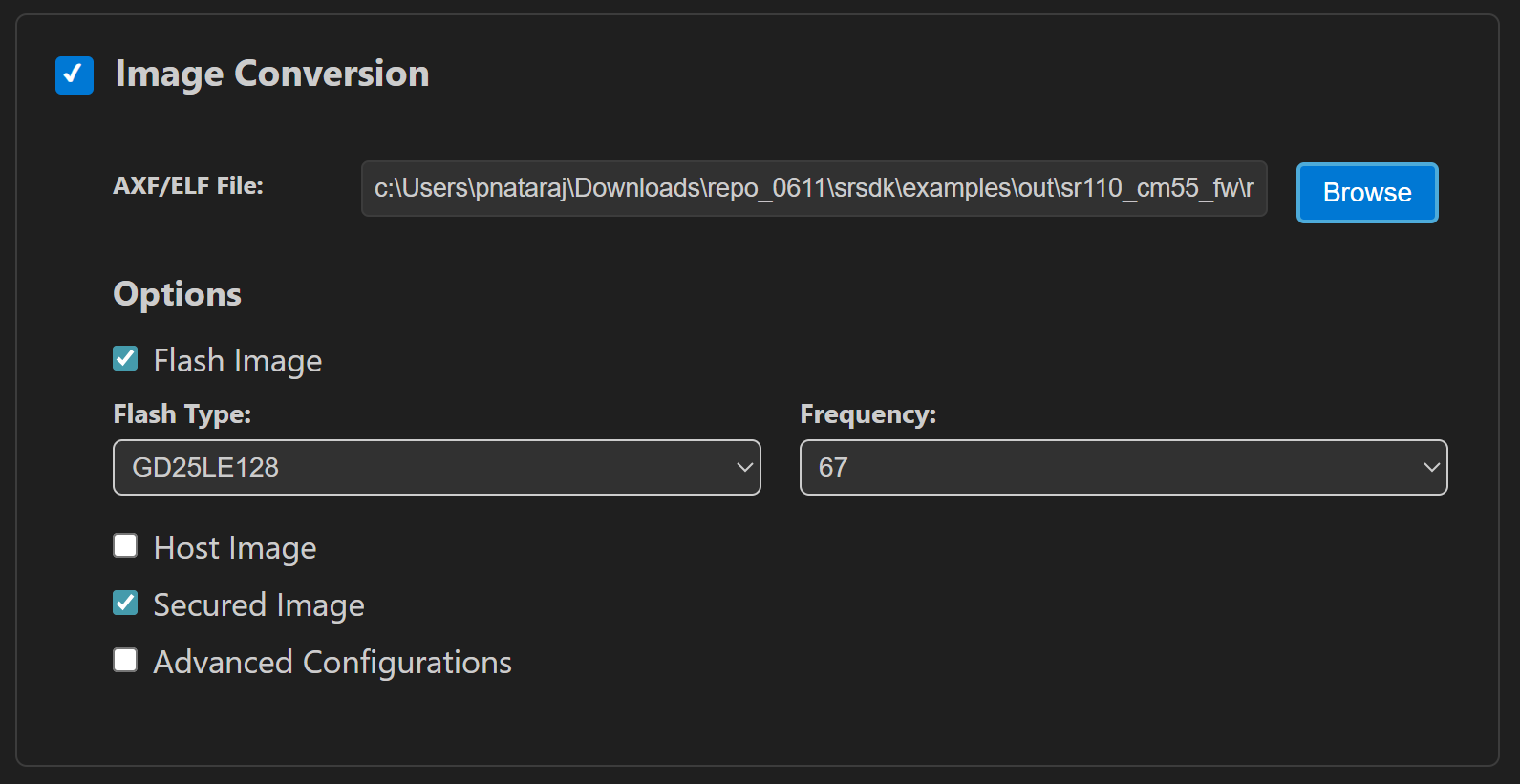

     • Select the Image Conversion option, browse and select the required .axf or .elf file. If the usecase is built using the VS Code extension, the file path will be automatically populated.



     • Click Run to create the binary files.

     • Refer to Astra MCU SDK VSCode Extension User Guide for more detailed instructions.

   • Model Binary generation (to place the Model in Flash)

     • To generate .bin file for TFLite models, please refer to the Vela compilation guide.

3. Flash the Application

   To flash the application:

   • Select the Image Flashing option in the Build and Deploy view in the Astra MCU SDK VSCode Extension.

   • Select SWD/JTAG as the Interface.

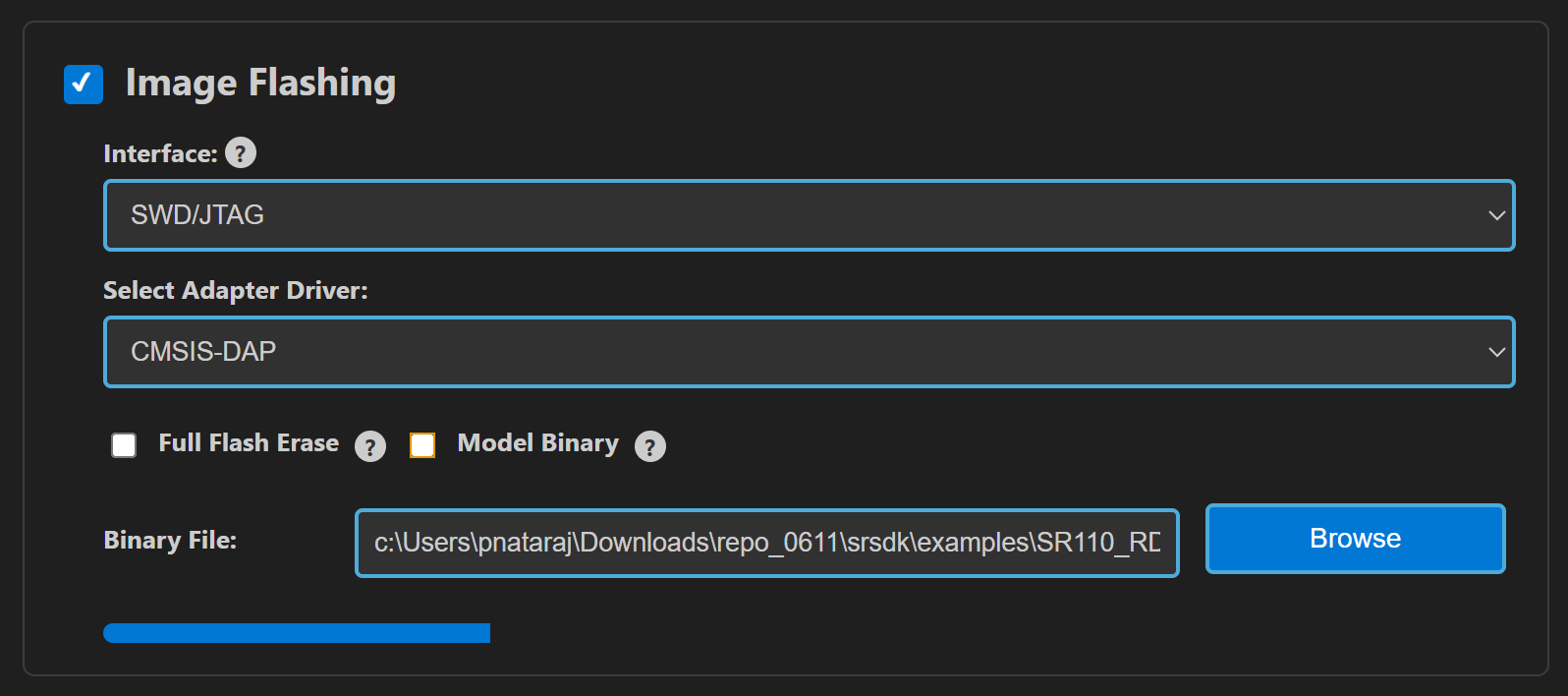

   • Choose the respective image bins and click Run.



   For WQVGA resolution:

   • Flash the generated B0_flash_full_image_GD25LE128_67Mhz_secured.bin file directly to the device.

   Note: Model weights is placed in SRAM.

   For VGA resolution:

   • For VGA resolution, flash the model binary first, and then proceed to flash the generated use case binary.

   • Steps:

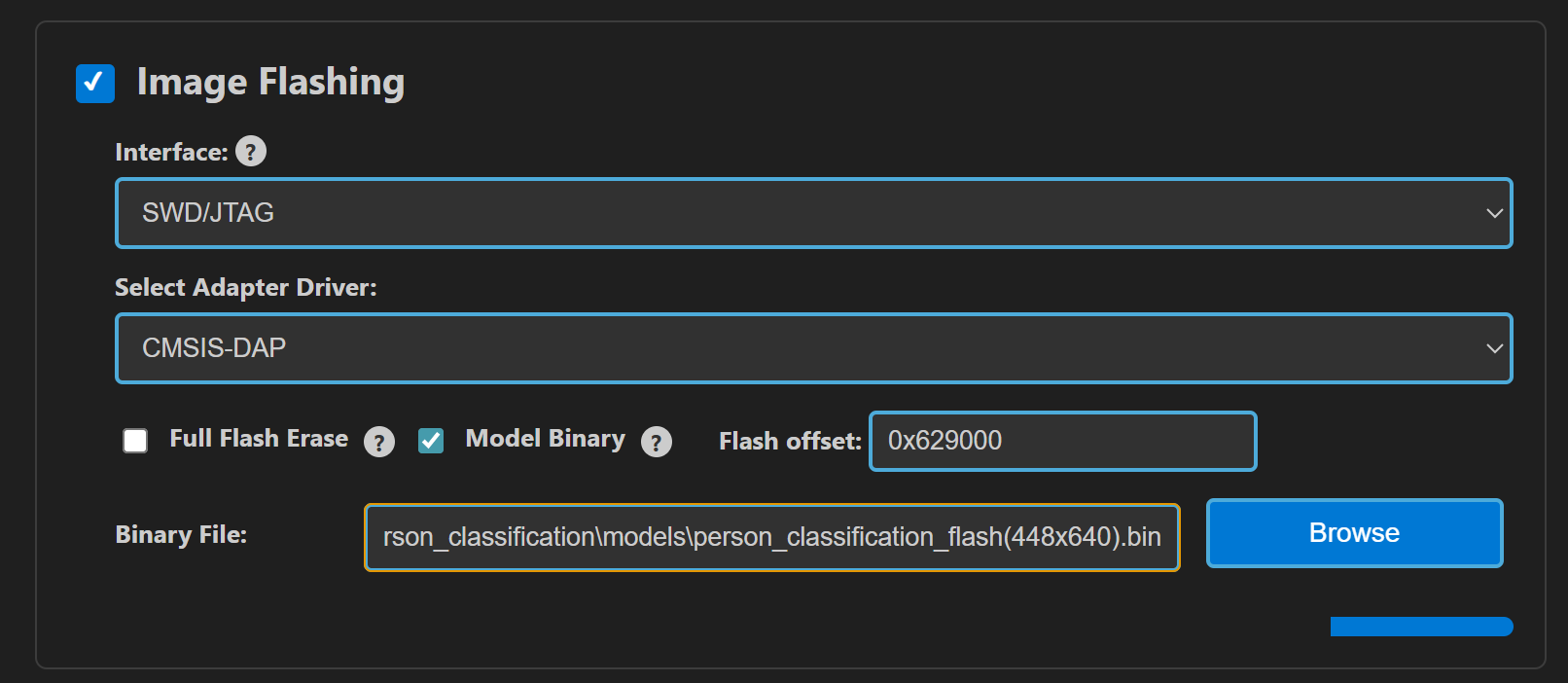

   1. Flash the pre-generated model binary: person_classification_flash(448x640).bin. Due to memory constraints, the model weights need to be stored in Flash. Browse and select this binary from the location: examples/vision_examples/uc_person_classification/models/ Select the Model Binary checkbox and enter the specified flash address in the “Flash Offset” field and start flashing.

      • Flash address: 0x629000

      • Calculation Note: The flash address is determined by adding the host_image size and the image_offset_SDK_image_B_offset parameter (defined in NVM_data.json). Ensure the resulting address is aligned to a sector boundary (a multiple of 4096 bytes). This calculated address should then be assigned to the image_offset_Model_A_offset macro in your NVM_data.json file.



   2. Flash the generated B0_flash_full_image_GD25LE128_67Mhz_secured.bin file.

   Note: By default, flashing a binary performs a sector erase based on the binary size. To erase the entire flash memory, enable the Full Flash Erase checkbox. When this option is selected along with a binary file, the tool first performs a full flash erase before flashing the binary. If the checkbox is selected without specifying a binary, only a full flash erase operation will be executed.

   Refer to the Astra MCU SDK VSCode Extension User Guide for detailed instructions on flashing.

4. Device Reset

   Reset the target device after flashing process is complete.

Note:

The placement of the model (in SRAM or FLASH) is determined by its memory requirements. Models that exceed the available SRAM capacity, considering factors like their weights and the necessary tensor arena for inference, will be stored in FLASH.

Running the Application using VS Code extension

1. After successfully flashing the usecase and model binaries, click on Video Streamer option in the side panel. This will open the Video Streamer webview.



2. Before running the application, make sure to connect a USB cable to the Application SR110 USB port on the Astra Machina Micro board and then press the reset button

   • Select the newly enumerated COM port in the dropdown.

   • For logging output, click on SERIAL MONITOR and connect to the DAP logger port.

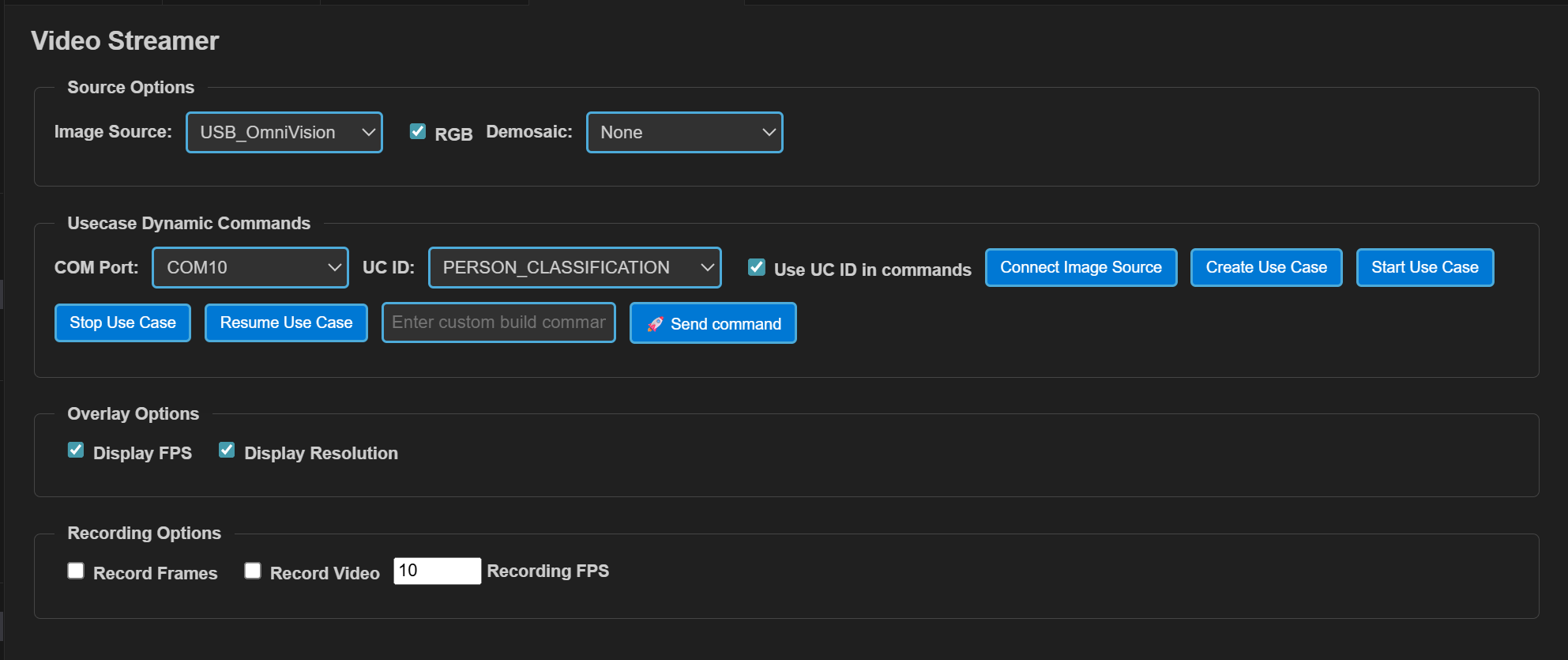

3. Select PERSON_CLASSIFICATION from the UC ID dropdown. Select RGB Demosaic: BayerRGGB

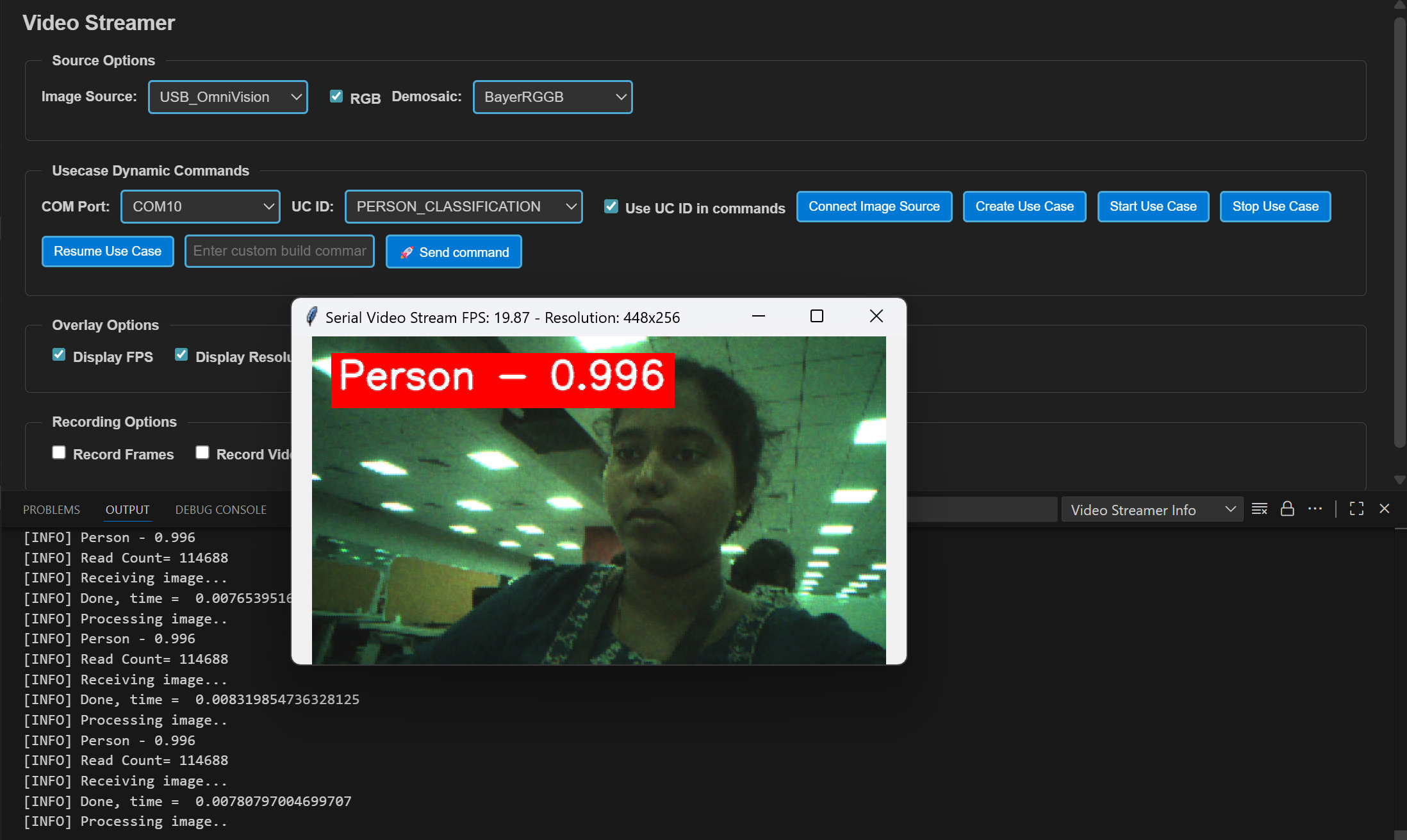

4. Click Create Use Case button. Then click the Start Use Case button. A python window will be opened and video stream will be displayed as shown below. Logs can be viewed through the Serial Monitor



5. Autorun usecases: If the usecase is built with autorun enabled, after flashing the binary and completing step 3 (selecting the usecase from the UC ID dropdown), click on the Connect Image Source button. This will open the video stream pop-up.
