Astra MCU SDK Reference

This document is a comprehensive reference for the Astra MCU SDK. It describes the SDK structure, build and configuration model, project layout, image generation, flashing tools, and common troubleshooting. It is not a quick start guide and focuses on SDK internals and CLI workflows.

Throughout this guide, <sdk-root> refers to the folder where you extracted or cloned the SDK (for example, C:\Users\<YourName>\ASTRA_MCU_SDK_x.x.x\).

Table of Contents

Scope and Audience

Use this reference if you need to:

  • Understand how the SDK is organized and built.

  • Configure SDK or application features.

  • Build SDK packages and applications with the CLI.

  • Generate images and flash devices.

  • Troubleshoot build, image generation, or flashing issues.

Before using this reference, complete the setup and installation steps:

Supported Platforms and Boards

Boards

  • Astra Machina Micro SR110 (SR110_RDK)

  • Astra Machina SL2610 (SL2610_RDK)

Platform Differences (at a glance)

Feature

SR110

SL2610

MCU core

Cortex-M55

Cortex-M52

NPU

Ethos-U55

None

Flash media

External XSPI

eMMC (via USB boot tool)

Image generation

SRSDK image generator

Image generator + USB boot tool

Debug

OpenOCD + probe

Not supported in this SDK flow

Toolchains

GCC, AC6, LLVM (SR110 only)

GCC

Platform Guides

Host Requirements

Supported Host OS

  • Windows (x64)

  • Linux (Ubuntu 22.04)

  • macOS (Apple Silicon & Intel)

Required Tools

Tool

Version Guidance

Notes

CMake

4.1.2

Build system generator

Ninja

1.13.1

Build executor

Python

3.13.x

Required for configuration tools and image generation

OpenOCD

Host package or xPack

Required for SR110 flashing

Toolchains

  • GCC 13.2.1 (all platforms)

  • Arm Compiler 6.19 (AC6)

  • LLVM Clang 21.x (SR110 only; requires GCC sysroot)

Use only one toolchain per build. Do not mix toolchains across SDK and application builds.

Environment Setup

Use these for host setup and tool installation:

SDK Repository Layout

Top-level directories:

  • arch/ CPU architecture support

  • board/ Board-specific support files

  • bootloader/ Bootloader sources

  • configs/ SDK defconfigs (bootloader, tflite, default package)

  • drivers/ Hardware drivers

  • examples/ Sample applications and example build system

  • kconfig/ SDK-level configuration entry

  • os/ RTOS support (FreeRTOS and related)

  • soc/ SoC-specific sources

  • tools/ Build, image, flashing, and utility tools

  • utilities/ Common utilities

  • third_party/ External dependencies

Examples Layout (in-tree)

examples/
|-- <BOARD>/
|   |-- configs/                 # Application defconfigs
|   |-- kconfig                  # Example Kconfig
|   `-- <example sources>
|-- build/                       # Example build artifacts
|-- install/<BOARD>/             # Installed SDK package
|-- out/                         # Example output binaries and images
`-- Makefile                     # Examples build entry

Out-of-tree custom applications are supported. Point SRSDK_DIR to the SDK root and keep your application repo separate.

Example build scope: examples/tools/cmake/subdirectories.cmake lists which example trees are included (for example add_subdirectory(SR110_RDK)). Edit this file if you need to limit or expand the example build scope.

Project Structure and Module Organization

The SDK is organized as functional modules. Each module typically contains its own CMakeLists.txt and, when configurable, a Kconfig file. The root CMakeLists.txt includes major subsystems, and each subsystem adds its sources and include paths.

Root-Level Build Entry

  • CMakeLists.txt in the SDK root drives inclusion of core subsystems (bootloader, firmware, tflite, drivers, OS).

  • tools/cmake/flags.cmake centralizes compiler flags and warnings.

  • tools/cmake/ contains SDK CMake modules;

  • examples/tools/cmake/ contains application-specific CMake modules.

Module-Level Structure

  • Each module uses target_sources() to add sources and target_include_directories() to expose headers.

  • Modules can be conditionally included based on Kconfig selections.

Kconfig Hierarchy

  • Top-level kconfig sources module Kconfig files (e.g., drivers/Kconfig, soc/*/Kconfig).

  • Selecting options in Kconfig controls which modules and features are built.

Where to Look for Specific Pieces

  • SoC configuration: soc/

  • Board configuration: board/

  • Drivers: drivers/

  • OS abstraction: os/

  • Bootloader: bootloader/

  • TFLite Micro: AI/ and third_party/

  • Tools and scripts: tools/

  • App/Example inclusion logic: examples/<BOARD>/CMakeLists.txt (uses app kconfig symbols)

Build System Overview

The SDK supports two primary build entry points:

  • SDK root (<sdk-root>): build the SDK package, bootloader, or TFLite Micro libraries.

  • Examples folder (<sdk-root>/examples): build applications, either app-only or combined SDK + app.

Out-of-tree builds are supported: keep your custom application in a separate folder and set SRSDK_DIR to the SDK root.

The build system is layered:

  • Make: orchestration and entry points (Makefile in SDK root and examples/).

  • Kconfig: configuration UI and .config generation.

  • CMake: build generation.

  • Ninja: actual compilation and linking.

Key Build Concepts

  • Defconfig: Minimal config snapshot. Applied to produce .config.

  • .config: Full configuration file, used to generate config.h and build flags.

  • config.h: Generated header consumed by C/C++ sources.

  • SDK package: Installed libraries and headers used by application builds.

  • SDK package installation: Produces a reusable SDK package (headers, libraries, toolchain CMake files, and config.h) that application builds link against.

CMake Build Details

This section describes the CMake flow at a practical level.

SDK Root CMake (core SDK builds)

  • Reads build/config.h to load CONFIG_* settings (generated from Kconfig).

  • Uses those settings to select linker scripts and build flags.

  • Builds the SDK libraries and packages them for reuse.

  • Exports a CMake package under examples/install/<BOARD>/lib/cmake/SynapticsSDK/.

Examples CMake (application builds)

  • Builds app targets named ${CONFIG_PROJECT}_${CONFIG_BUILD_TYPE} (for example sr110_cm55_fw).

  • BUILD=SRSDK builds the SDK package and the app together.

  • BUILD=EXAMPLE uses the installed SDK package.

  • Example apps are included when their kconfig symbol is enabled.

  • USE_APP_CACHE=ON (default) uses a small per‑app cache of SDK headers/libs for faster rebuilds.

Configuration Model (Kconfig)

Where Configuration Lives

  • SDK defconfigs: configs/<BOARD>/*_defconfig

  • Application defconfigs: examples/<BOARD>/configs/*_defconfig

Configuration Flow

  1. Apply a defconfig to generate .config.

  2. (Optional) Modify using menuconfig.

  3. Build generates config.h and uses it for compilation.

The Makefiles use Python helpers under tools/scripts/kconfig/:

  • defconfig.py applies defconfigs.

  • menuconfig.py launches the interactive menu.

  • genconfig.py generates config.h.

  • savedefconfig.py writes a minimal defconfig.

Key Defconfig Fields

Common fields you will see in defconfigs:

  • CONFIG_PROJECT: Project family (e.g., sr110, sl2610).

  • CONFIG_BUILD_TYPE: Target type (e.g., cm55_fw, cm52_fw, bootloader, tflite_micro).

  • CONFIG_COMPILER: Toolchain selection (gcc, ac6, llvm).

  • CONFIG_BOARD: Board name (e.g., sr110_rdk, sl2610_rdk).

  • CONFIG_BOARD_REV: Board revision (when applicable).

These values drive the build directory structure and output names. CONFIG_COMPILER must match the active toolchain environment variables; use the same compiler for SDK and app builds.

Build Modes

CONFIG_BUILD_MODE controls optimization and output directories:

  • release: optimized output, minimal logging.

  • debug: debug symbols and extra logging.

Build modes map to output folders: release/ or debug/.

Note: Build types used in defconfigs are cm55_fw, cm52_fw, bootloader, and tflite_micro.

SDK vs Application Menuconfig

  • SDK root menuconfig: changes SDK-level options (drivers, compiler, features).

  • Application menuconfig: app-only options.

  • Advanced menuconfig: combines SDK + example options and requires SRSDK_DIR.

Build Workflows

SDK Root Builds (from <sdk-root>)

Use SDK root for bootloader, tflite, or SDK package builds.

  1. Apply a defconfig:

make default_config BOARD=<BOARD>

  1. Build SDK package:

make astrasdk BOARD=<BOARD>

  1. Build bootloader or tflite:

make <bootloader_defconfig> BOARD=<BOARD>
make build

make <tflite_defconfig> BOARD=<BOARD>
make build

Application Builds (from <sdk-root>/examples)

Use examples to build applications.

Supported boards are defined in the Makefiles: currently SR110_RDK and SL2610_RDK.

Path tips: Use absolute paths for SRSDK_DIR and toolchain variables. On Windows, use escaped backslashes or forward slashes.

Combined SDK + App build

export SRSDK_DIR=<sdk-root>
make <app_defconfig> BOARD=<BOARD> BUILD=SRSDK

App-only build (uses installed SDK package)

export SRSDK_DIR=<sdk-root>
make build BOARD=<BOARD>

Build only the SDK package from examples

make astrasdk BOARD=<BOARD>

If you need to build the SDK package using the default SDK defconfig from the examples tree:

make default_config BOARD=<BOARD>
make astrasdk BOARD=<BOARD>

BUILD Mode (Application only)

  • BUILD=EXAMPLE (default): build the app using the installed SDK package.

  • BUILD=SRSDK: build SDK package and the app in one flow (requires SRSDK_DIR).

  • BUILD=NONE: apply defconfig only (no build).

When to use:

  • Use BUILD=SRSDK for the first build, after SDK source changes, or when switching toolchains.

  • Use BUILD=EXAMPLE for faster iteration when only app code changes and the SDK package is already installed.

Build Multiple Applications with One SDK Package

If you want to build several applications against the same installed SDK:

cd <sdk-root>/examples
export SRSDK_DIR=<sdk-root>
make astrasdk BOARD=<BOARD>
make <app1>_defconfig BOARD=<BOARD>
make build BOARD=<BOARD>
make <app2>_defconfig BOARD=<BOARD>
make build BOARD=<BOARD>

Create a Custom Defconfig (Application)

  1. Start from an existing defconfig:

    make <app>_defconfig BOARD=<BOARD>

  2. Open the configuration UI:

    make advanced_menuconfig BOARD=<BOARD>

  3. Save your new defconfig under <BOARD>/configs/ (for example my_custom_app_defconfig).

    make savedefconfig OUT=my_custom_app BOARD=<BOARD>

    This writes examples/<BOARD>/configs/my_custom_app_defconfig.

The new defconfig can then be used like any other:

make my_custom_app_defconfig BOARD=<BOARD> BUILD=SRSDK

Build Outputs and Artifacts

SDK Root Outputs

  • build/ contains build artifacts and config.h (CMake build tree is build/<project>/<compiler>/).

  • out/<target>/<mode>/ contains SDK root binaries:

    • GCC/LLVM: <target>.elf and <target>.bin

    • AC6: <target>.axf and <target>.bin

  • prebuilt/<PROJECT>/tflite_micro/<mode>/ contains TFLM libs when building tflite_micro.

Application Outputs

  • examples/out/<target>/<mode>/ contains application binaries.

    • GCC/LLVM: <target>.elf and <target>.bin

    • AC6: <target>.axf and <target>.bin

  • examples/build/<project>/<compiler>/ contains the example CMake build tree.

  • examples/build/<project>/<compiler>/srsdk_build/.cache/ is the app-local SDK cache (auto-managed; refreshed when SDK content changes). Disable with USE_APP_CACHE=OFF if needed.

  • examples/install/<BOARD>/ contains the installed SDK package:

    • include/ SDK headers

    • lib/ SDK libraries

    • config.h

    • tools/cmake/ SDK CMake toolchain modules used by the app build

The installed package also provides CMake package files under:

examples/install/<BOARD>/lib/cmake/SynapticsSDK/

Generated Config Headers

  • build/config.h in SDK root: generated from SDK .config.

  • examples/build/config.h: example-local config overrides (if generated).

  • examples/build/example_config.h: example-specific header for overrides.

Target naming:

  • <target> is ${CONFIG_PROJECT}_${CONFIG_BUILD_TYPE} (for example sr110_cm55_fw or sl2610_cm52_fw).

  • <mode> is release or debug, based on CONFIG_BUILD_MODE.

Image Generation

SR110 Image Generation (SRSDK Image Generator)

Tool: tools/srsdk_image_generator/srsdk_image_generator.py

Required: Python 3.13 venv active and tools/srsdk_image_generator/requirements.txt installed.

Typical command (from <sdk-root>/tools/srsdk_image_generator):

cd <sdk-root>/tools/srsdk_image_generator
python srsdk_image_generator.py \
  -B0 \
  -flash_image \
  -sdk_secured \
  -spk "<sdk-root>/tools/srsdk_image_generator/B0_Input_examples/spk_rc4_1_0_secure_otpk.bin" \
  -apbl "<sdk-root>/tools/srsdk_image_generator/B0_Input_examples/sr100_b0_bootloader_ver_0x012F_ASIC.axf" \
  -m55_image "<sdk-root>/examples/out/sr110_cm55_fw/release/sr110_cm55_fw.elf" \
  -flash_type "GD25LE128" \
  -flash_freq "67"

Output (example):

<sdk-root>/tools/srsdk_image_generator/Output/B0_Flash/B0_flash_full_image_GD25LE128_67Mhz_secured.bin

Key flags:

  • -flash_image or -host_image: choose flash or host image output.

  • -sdk_secured / -sdk_non_secured: SDK security mode.

  • -model_secured / -model_non_secured: model security mode.

  • -spk, -apbl, -m55_image: required inputs for SR110.

  • -flash_type, -flash_freq: flash configuration (types: GD25LE128, W25Q128, MX25U128; frequencies: 34, 67, 100, 134 MHz).

  • -m4_image, -npu_c_image, -model: additional payloads for multi-core or model flows.

  • -single_slot: generate a single-slot image layout.

  • -json_attr / -parse_attr: use JSON-based flash attributes.

  • -Q4: flash 4-bit support (1/0).

SL2610 Image Generation (Image Generator)

Tool: tools/image_gen/image_generator.py

Required: Python 3.13 venv active.

Note: SL2610 image generation is not supported on native Windows. Windows users should use WSL for image generation. In the WSL environment, install required tools such as Python, make, and the Arm GNU toolchain. You can use the VS Code extension’s Tools Installer from WSL, or follow Linux Environment guide for CLI setup.

Recommended entry:

cd <sdk-root>/examples
make imagegen

This runs a two-step pipeline:

  • tools/image_gen/image_generator.py to generate raw images using tools/image_gen/inp.json.

  • tools/scripts/image/build_preboot_mcu.py to package sub-images for USB boot and eMMC workflows.

Final outputs:

  • examples/out/image/intermediate/sysmgr.subimg

  • examples/out/image/eMMCimg/

  • examples/out/image/usb_boot/

Intermediate outputs from image generation:

  • examples/out/nexus_bin/

  • examples/out/nexus_loadable/

If you need to change inputs, update tools/image_gen/inp.json. Paths in this file are relative to examples/out/. The preboot packaging step uses signing keys under tools/signingKeys/<soc>/ and SPK assets for USB boot images.

If you see permission errors on Linux/macOS:

cd <sdk-root>/examples
chmod +x tools/scripts/image/bin/gen*

Flashing

SR110 (OpenOCD Flash Script)

Tool: tools/openocd/scripts/flash_xspi_tcl.py OpenOCD config files live under tools/openocd/configs/. For SR110, sr110_m55.cfg is the standard config.

Example (from <sdk-root>):

cd <sdk-root>
python tools/openocd/scripts/flash_xspi_tcl.py \
  --cfg_path tools/openocd/configs/sr110_m55.cfg \
  --image tools/srsdk_image_generator/Output/B0_Flash/B0_flash_full_image_GD25LE128_67Mhz_secured.bin \
  --erase-all

Key options:

  • --cfg_path (required): OpenOCD config file

  • --image: Binary image to program

  • --erase-all: Full chip erase

  • --verify-only: Verify contents without programming

  • --probe: Select probe (default cmsis-dap, use jlink for J-Link)

  • --openocd: Path to OpenOCD binary

  • --flash-offset: Flash offset for programming

  • --file-offset: Offset into image file

  • --erase-only: Erase only, no programming

  • --log-level: DEBUG/INFO/WARN/ERROR

  • --tcl_port, --tcl_host: OpenOCD TCL interface settings

  • Use --probe jlink (or --probe cmsis-dap) to select the adapter driver.

SL2610 (USB Boot Tool)

Tool: tools/usb_boot_python_tool/USB_BOOT_TOOL/usb_boot_tool.py

Required: Python 3.13 venv active and pyserial installed.

Enter USB boot mode first:

  • Press and hold USB_BOOT, then press RESET.

  • Release RESET, then release USB_BOOT.

Run System Manager (from <sdk-root>/tools/usb_boot_python_tool/USB_BOOT_TOOL):

cd <sdk-root>/tools/usb_boot_python_tool/USB_BOOT_TOOL
python usb_boot_tool.py --op run-sm \
  --sm <sdk-root>/examples/out/image/intermediate/sysmgr.subimg \
  --spk <sdk-root>/examples/out/image/usb_boot/spk.bin \
  --keys <sdk-root>/examples/out/image/usb_boot/key.bin \
  --m52bl <sdk-root>/examples/out/image/usb_boot/m52bl.bin

Full eMMC flashing:

python usb_boot_tool.py --op emmc --img-dir <path-to-eMMCimg>

Notes:

  • --op emmc requires a Yocto-generated eMMCimg folder with emmc_part_list and emmc_image_list.

  • If run-sm fails because SM CDC is already running, power-cycle the board and retry.

Where to Run Commands

Use the table below to choose the correct working directory.

Command or Task

Run From

Notes

make default_config BOARD=<BOARD>

<sdk-root>

Applies SDK default defconfig

make <bootloader_defconfig> BOARD=<BOARD>

<sdk-root>

SDK bootloader build (follow with make build)

make <tflite_defconfig> BOARD=<BOARD>

<sdk-root>

SDK TFLite build (follow with make build)

make astrasdk BOARD=<BOARD>

<sdk-root> or <sdk-root>/examples

Builds and installs SDK package

make <app_defconfig> BOARD=<BOARD> BUILD=SRSDK

<sdk-root>/examples

Combined SDK + app build

make build BOARD=<BOARD>

<sdk-root>/examples

App-only build (requires SRSDK_DIR)

make imagegen

<sdk-root>/examples

SL2610 image generation pipeline

srsdk_image_generator.py

<sdk-root>/tools/srsdk_image_generator

SR110 image generation

flash_xspi_tcl.py

<sdk-root>

SR110 flashing (OpenOCD)

usb_boot_tool.py

<sdk-root>/tools/usb_boot_python_tool/USB_BOOT_TOOL

SL2610 USB boot flashing

Applications (Modify or Create)

Modify an existing app

  • Update sources under examples/<BOARD>/<app>/.

  • If you change configuration options, re-run the app defconfig and rebuild:

cd <sdk-root>/examples
export SRSDK_DIR=<sdk-root>
make <app>_defconfig BOARD=<BOARD>
make build BOARD=<BOARD>

Create a new app (minimal checklist)

  1. Create examples/<BOARD>/<app>/ with your sources under src/.

  2. Add examples/<BOARD>/<app>/kconfig with a config symbol.

  3. Add examples/<BOARD>/configs/<app>_defconfig and enable the app symbol (CONFIG_<APP_SYMBOL>=y).

  4. Add examples/<BOARD>/<app>/CMakeLists.txt to add sources to ${TARGET}.

  5. Build from examples/:

cd <sdk-root>/examples
export SRSDK_DIR=<sdk-root>
make <app>_defconfig BOARD=<BOARD> BUILD=SRSDK
make build BOARD=<BOARD>

Minimal kconfig:

config <APP_SYMBOL>
    bool "Enable <app>"
    default y

Minimal CMakeLists.txt (pattern used by existing examples):

if(CONFIG_<APP_SYMBOL>)
    if(${BUILD} STREQUAL "EXAMPLE")
        target_sources(${TARGET} PRIVATE
            ${CMAKE_CURRENT_LIST_DIR}/src/main.c
        )
        target_include_directories(${TARGET} PUBLIC
            ${CMAKE_CURRENT_LIST_DIR}
        )
    else()
        target_include_directories(sdk_includes INTERFACE
            $<BUILD_INTERFACE:${CMAKE_CURRENT_LIST_DIR}>
        )
    endif()
endif()

Notes:

  • Use cm55_<app>_defconfig (SR110) or cm52_<app>_defconfig (SL2610).

  • The board-level examples/<BOARD>/CMakeLists.txt auto-includes apps whose kconfig symbol is enabled.

Common mistakes:

  • Defconfig not found: confirm examples/<BOARD>/configs/ and BOARD match.

  • App not built: ensure CONFIG_<APP_SYMBOL>=y is set in the app defconfig.

  • App directory skipped: ensure the app folder has a kconfig file with a config symbol.

  • Missing sources: ensure CMakeLists.txt lists all files under src/.

  • Wrong output target: check CONFIG_PROJECT and CONFIG_BUILD_TYPE.

Command Reference

SDK Root (<sdk-root>)

Command

Purpose

Result

make help

Show available targets

Prints target list

make list_defconfigs BOARD=<BOARD>

List SDK defconfigs

Console list

make default_config BOARD=<BOARD>

Apply default SDK defconfig

.config updated

make <name>_defconfig BOARD=<BOARD>

Apply specific SDK defconfig

.config updated

make menuconfig BOARD=<BOARD>

Edit SDK config

.config updated

make genconfig

Generate build/config.h

build/config.h created

make build

Build current SDK target (bootloader/TFLM/firmware)

Use when you need the target binary only; outputs in out/

make astrasdk BOARD=<BOARD>

Build and install SDK package

Use when you need the SDK package for app builds; updates examples/install/<BOARD>/

make savedefconfig OUT=name BOARD=<BOARD>

Save minimal SDK defconfig

configs/<BOARD>/name_defconfig

make clean

Remove build artifacts

build/ cleaned

make cpp_check

Run cppcheck

Console output

Applications (<sdk-root>/examples)

Command

Purpose

Result

make help

Show available targets

Prints target list

make list_boards

List valid boards

Console list

make list_defconfigs BOARD=<BOARD>

List example defconfigs

Console list

make <app>_defconfig BOARD=<BOARD>

Apply app defconfig

.config updated

make <app>_defconfig BOARD=<BOARD> BUILD=SRSDK

Combined SDK + app build

SDK installed + app built

make <app>_defconfig BOARD=<BOARD> BUILD=NONE

Apply defconfig only

.config updated

make build BOARD=<BOARD>

App-only build

Use for fast iteration with installed SDK; app binary in out/

make build_sdk BOARD=<BOARD>

Build SDK for example (combined flow)

Internal step used by build_all; builds SDK from source

make build_advanced BOARD=<BOARD>

Build app with advanced config

Internal step used by build_all; app binary in out/

make build_all BOARD=<BOARD>

SDK build + app build

Runs build_sdk, installs SDK, then build_advanced

make menuconfig BOARD=<BOARD>

Edit example-only config

.config updated

make advanced_menuconfig BOARD=<BOARD>

SDK + example config

.config updated (requires SRSDK_DIR)

make advanced_genconfig

Generate SDK + example config headers

build/config.h and build/example_config.h

make genconfig

Generate example config headers

build/config.h and build/example_config.h

make default_config BOARD=<BOARD>

Apply default SDK defconfig

.config updated

make astrasdk BOARD=<BOARD>

Build and install SDK package

install/<BOARD>/ updated

make custom_astrasdk

Build and install SDK package using current example config

Use when you need an app-tailored SDK without building the app

make imagegen

Generate SL2610 images

Image outputs in examples/out/image/

make apply_defconfig DEFCONFIG=<name> BOARD=<BOARD>

Apply defconfig without building

.config updated

make savedefconfig OUT=name BOARD=<BOARD>

Save minimal defconfig

examples/<BOARD>/configs/name_defconfig

make cpp_check

Run cppcheck

Console output

make clean

Remove example build outputs

build/ and out/ cleaned

make clean_package BOARD=<BOARD>

Remove installed SDK package

install/<BOARD>/ removed

make all

Alias for clean_package

install/<BOARD>/ removed

Notes:

  • build_sdk and build_advanced are typically invoked by the defconfig flow and require SRSDK_DIR to be set.

  • BUILD=NONE can be used to apply defconfig without building.

Python Tools

Tool

Location

Purpose

srsdk_image_generator.py

tools/srsdk_image_generator/

SR110 image generation

image_generator.py

tools/image_gen/

SL2610 image generation

build_preboot_mcu.py

examples/tools/scripts/image/

SL2610 sub-image packaging

flash_xspi_tcl.py

tools/openocd/scripts/

SR110 flashing (OpenOCD)

usb_boot_tool.py

tools/usb_boot_python_tool/USB_BOOT_TOOL/

SL2610 USB boot flashing

tools/scripts/kconfig/*

tools/scripts/kconfig/

Defconfig/menuconfig/genconfig helpers

Tools Overview (Non-VS Code)

  • tools/openocd/: OpenOCD configs and flashing scripts for SR110.

  • tools/usb_boot_python_tool/: USB boot flashing tool for SL2610.

  • tools/image_gen/: SL2610 image generator and inp.json configuration.

  • tools/srsdk_image_generator/: SR110 image generator and input examples.

  • tools/Inference/: Model conversion and inference helpers (see its README).

  • tools/JLink_Scripts/: J-Link scripts for debugging/programming.

  • tools/Debug_IC_FW/: Debug firmware support assets.

  • examples/tools/signingKeys/: Signing keys used by SL2610 preboot packaging.

  • tools/SPK/: SPK assets used by secure image flows.

Note: Some tools have their own dependency requirements (for example tools/Inference/). Follow the tool-specific README when using them.

Troubleshooting

Build and Configuration Issues

  • SRSDK_DIR not set (examples + SDK combined build fails)

    • Fix: export SRSDK_DIR=<sdk-root> before BUILD=SRSDK or advanced_menuconfig.

  • Build and Deploy button disabled in VS Code

    • Cause: Examples directory not imported or SRSDK_DIR not set.

    • Fix: import the SDK examples/ folder, set SRSDK_DIR via Import SDK, then refresh the workspace (close and reopen VS Code).

  • App-only build fails because SDK package is missing

    • Fix: build and install the SDK first with make astrasdk BOARD=<BOARD> (from SDK root or examples).

  • Toolchain not found

    • Fix: ensure the correct toolchain env variable is set and the toolchain is on PATH.

    • Example: GCC_TOOLCHAIN_13_2_1=/opt/gcc-arm-none-eabi/bin.

  • LLVM build fails due to missing sysroot

    • Fix: set GCC_TOOLCHAIN_ROOT to the GCC toolchain root.

  • menuconfig fails on Linux

    • Fix: install libncurses5-dev and related packages per the Linux build_env guide.

  • defconfig not found

    • Fix: verify the BOARD matches the directory under configs/ or examples/<BOARD>/configs/.

  • config.h missing or stale

    • Fix: run make genconfig (SDK root) or rebuild from examples to regenerate.

  • TFLite Micro library not found

    • Fix: ensure prebuilt/<PROJECT>/tflite_micro/<mode>/ contains the lib, or rebuild tflite_micro.

    • If NPU is enabled, TFLM library is required.

Python / Image Generation Issues

  • Python version mismatch

    • Fix: activate the SDK virtual environment and verify python --version is 3.13.x.

  • Missing Python packages

    • Fix: pip install -r tools/srsdk_image_generator/requirements.txt.

  • Imagegen permission errors (Linux/macOS)

    • Fix: chmod +x tools/scripts/image/bin/gen*.

Flashing Issues

  • OpenOCD not found

    • Fix: install OpenOCD and ensure it is in PATH.

  • OpenOCD cannot connect to target

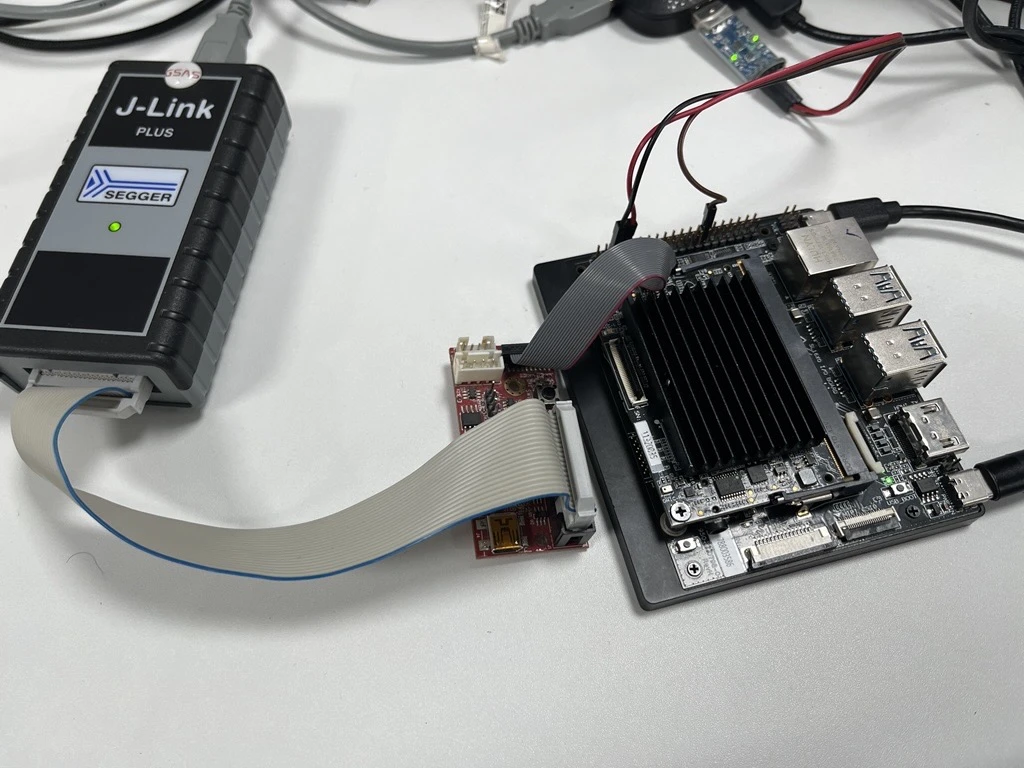

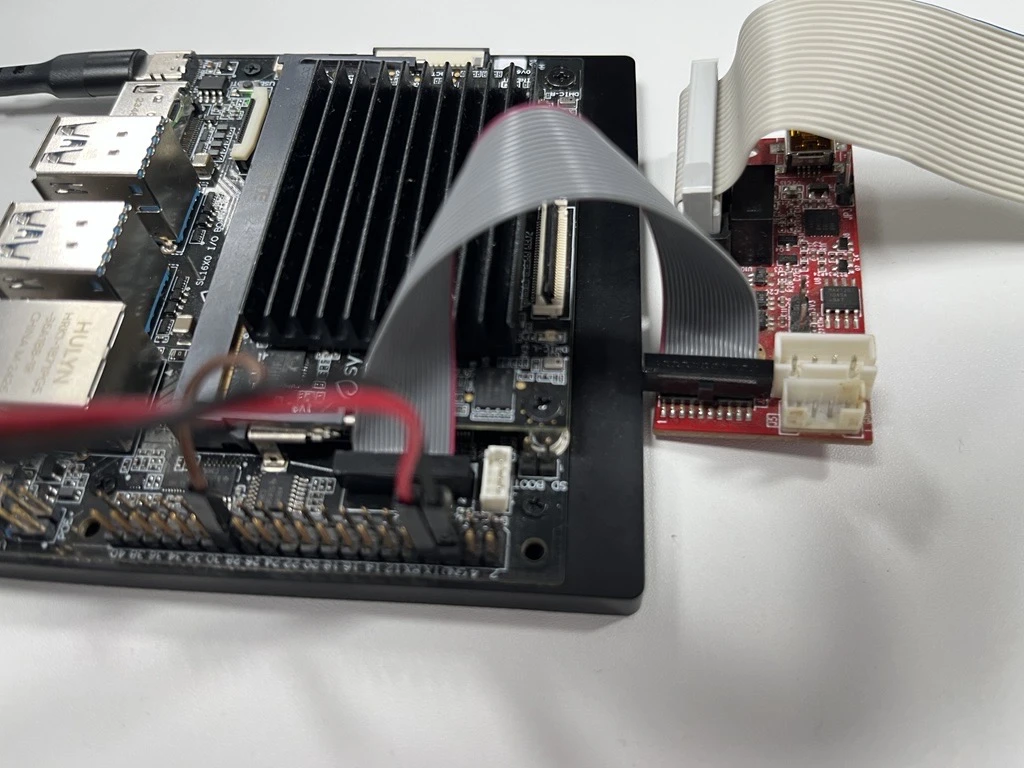

    • Fix: check cable, power, and probe selection (--probe cmsis-dap or --probe jlink).

  • WSL USB device not visible

  • SL2610 USB boot fails

    • Fix: re-enter USB boot mode (USB_BOOT + RESET), then retry.

Build Output Issues

  • App builds but image generation fails

    • Fix: confirm output .elf exists in examples/out/ and update image generator input paths.

  • App/Example build does not pick up new SDK headers/libs

    • Fix: clean the app cache (rm -rf examples/build/<target>/<compiler>/srsdk_build/.cache) or disable it by configuring with USE_APP_CACHE=OFF.

  • Link errors from mixed toolchains

    • Fix: ensure SDK and app are both built with the same compiler (GCC, AC6, or LLVM).
