Hand Gesture HID Mouse Application

Description

This application extends the SR110 hand-gesture pipeline to control a host PC mouse over USB HID. The runtime path is:

Camera -> FE/NN/PP hand-gesture pipeline -> gesture interpreter -> USB HID mouse report

USB runs in composite mode (CDC + HID) so logs remain available while cursor control is active. Use case auto-run is enabled in the provided defconfig, so Video Streamer “create usecase” is not required. This app intentionally does not provide Video Streamer image/metadata output paths.

Prerequisites

• Choose one setup path:

  • CLI: Setup and Install SDK using CLI

  • VS Code: Setup and Install SDK using VS Code

Hardware Requirements

• SR110 Rev C

• Sensor Adapter (included with the Astra Machina Micro kit)

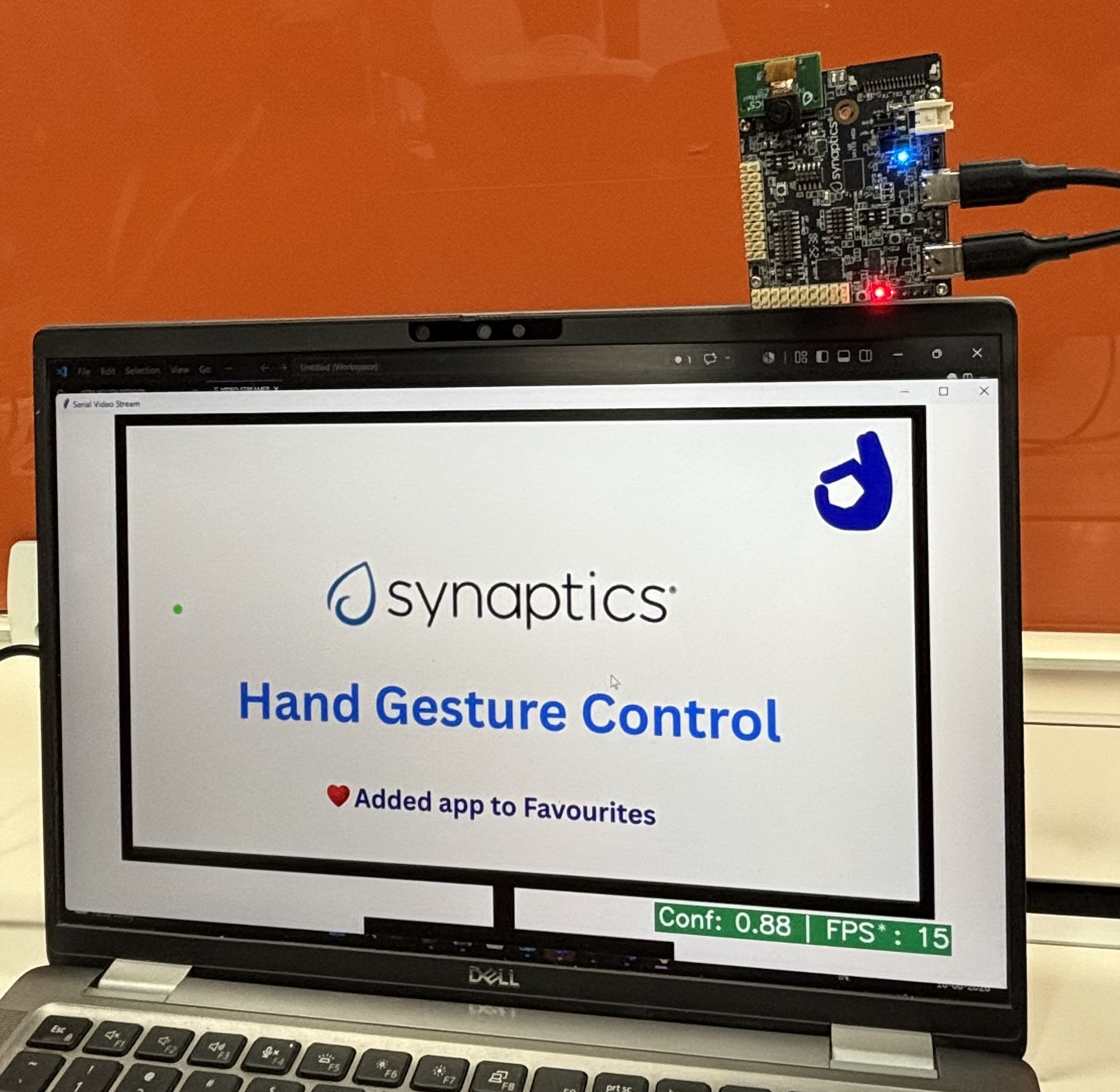

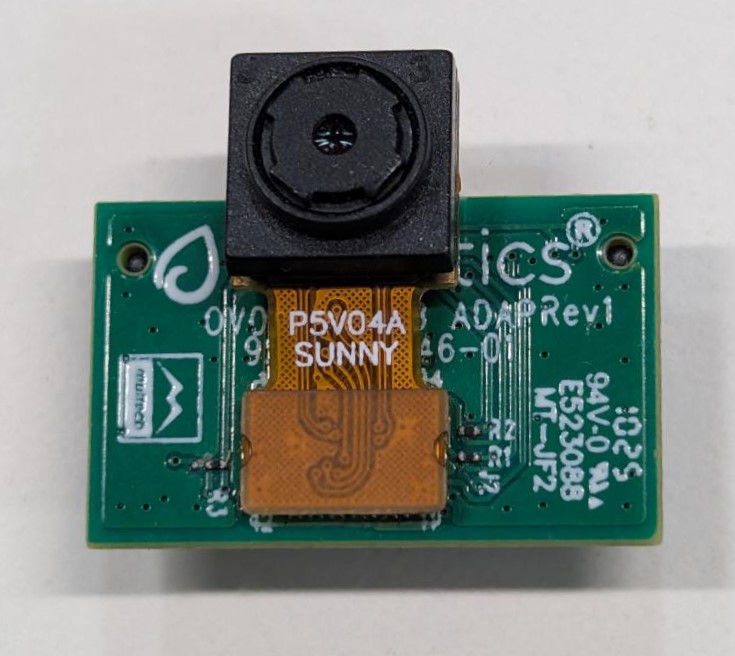

• OV5647 Camera Sensor

Building and Flashing the Example using VS Code

Use the VS Code flow described in the SR110 guide and the VS Code Extension guide:

• SR110 Build and Flash with VS Code

• Astra MCU SDK VS Code Extension User Guide

Build (VS Code):

1. Open Build and Deploy -> Build Configurations.

2. Select hand_gesture_hid_mouse in the Application dropdown.

3. Build with Build (SDK + App) for the first build, or Build App for rebuilds.



Flash (VS Code):

1. Use Image Conversion to generate the flash image.



2. In Image Conversion, open Advanced Configurations and edit NVM_data.json.

3. Set model flash offsets in NVM_data.json:

   • image_offset_Model_A_offset: 00607000

   • image_offset_Model_B_offset: 00737000

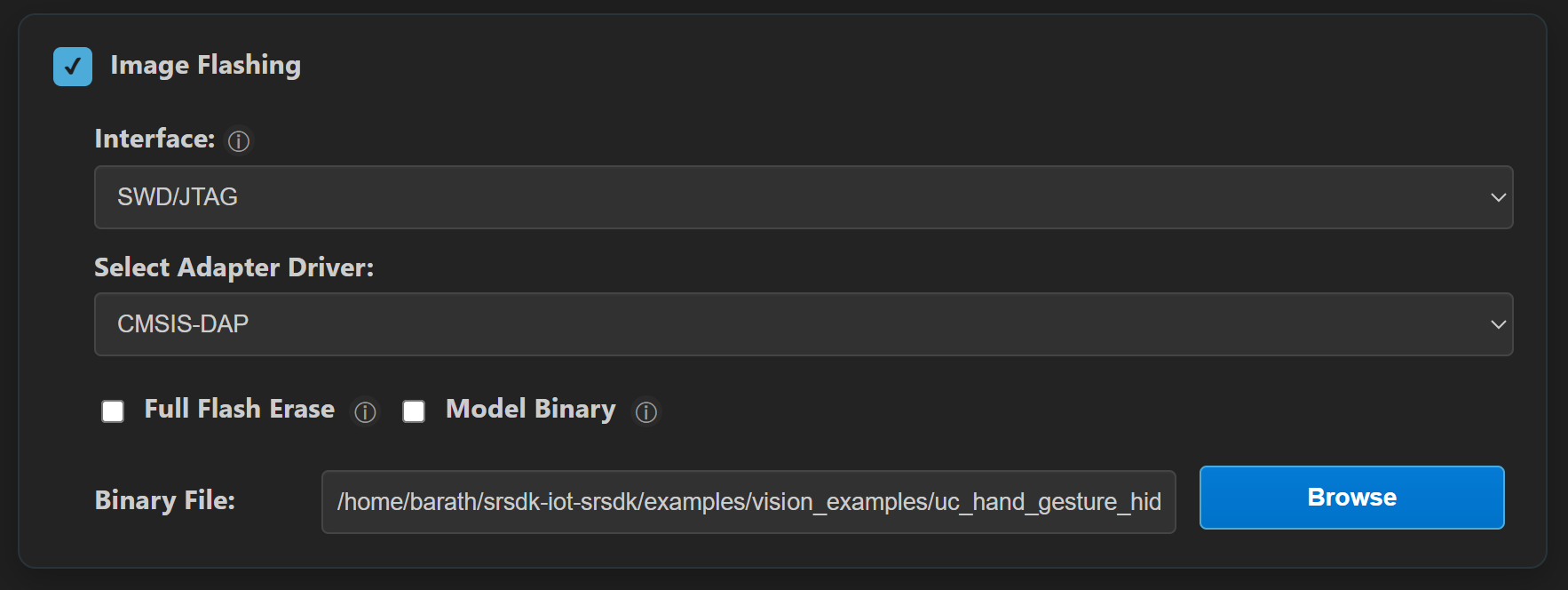

4. In Image Flashing (SWD/JTAG), flash the model binaries first:

   • hand_gesture_detection_flash(1280x704).bin at 0x607000

   • hand_gesture_detection_flash(320x320).bin at 0x737000





5. Flash the generated firmware image (B0_flash_full_image_GD25LE128_67Mhz_secured.bin).



---

Building and Flashing the Example using CLI

Use the CLI flow described in the SR110 guide:

• SR110 Build and Flash with CLI

Build (CLI):

1. From app directory, build the example:

   cd <sdk-root>/examples/vision_examples/uc_hand_gesture_hid_mouse
   export SRSDK_DIR=<sdk-root>
   make sr110_rdk_cm55_hand_gesture_hid_mouse_defconfig BUILD=SRSDK
   make build BUILD=SRSDK


Flash (CLI):

1. Activate the SDK venv (required for image generation tools):

   # Linux/macOS
   source <sdk-root>/.venv/bin/activate
   # Windows PowerShell
   .\.venv\Scripts\Activate.ps1


2. Generate the flash image:

   cd <sdk-root>/tools/srsdk_image_generator
   python srsdk_image_generator.py \
     -B0 \
     -flash_image \
     -sdk_secured \
     -spk "<sdk-root>/tools/srsdk_image_generator/B0_Input_examples/spk_rc4_1_0_secure_otpk.bin" \
     -apbl "<sdk-root>/tools/srsdk_image_generator/B0_Input_examples/sr100_b0_bootloader_ver_0x012F_ASIC.axf" \
     -m55_image "<sdk-root>/examples/out/sr110_cm55_fw/release/sr110_cm55_fw.elf" \
     -flash_type "GD25LE128" \
     -flash_freq "67"


3. Flash model binaries first:

   cd <sdk-root>
   python tools/openocd/scripts/flash_xspi_tcl.py \
     --cfg_path tools/openocd/configs/sr110_m55.cfg \
     --image examples/vision_examples/uc_hand_gesture_hid_mouse/models/hand_gesture_detection_flash(1280x704).bin \
     --flash-offset 0x607000

   python tools/openocd/scripts/flash_xspi_tcl.py \
     --cfg_path tools/openocd/configs/sr110_m55.cfg \
     --image examples/vision_examples/uc_hand_gesture_hid_mouse/models/hand_gesture_detection_flash(320x320).bin \
     --flash-offset 0x737000


4. Flash the firmware image:

   cd <sdk-root>
   python tools/openocd/scripts/flash_xspi_tcl.py \
     --cfg_path tools/openocd/configs/sr110_m55.cfg \
     --image tools/srsdk_image_generator/Output/B0_Flash/B0_flash_full_image_GD25LE128_67Mhz_secured.bin \
     --erase-all


---

Gesture Mapping (v1)

Gesture	HID Action
Palm	Cursor movement
Four	Left click
Pinch	Right click
Fist (short)	Double click
Fist (hold for 3s)	Toggle drag mode (left button hold/release)

Notes:

• Drag mode ON: moving palm drags with left button held.

• Drag mode OFF: moving palm only moves cursor.

• No-hand and low-confidence cases are handled as safe fallback (no movement/click trigger).

Run

1. Connect Application SR110 USB to host.

2. Reset the board.

3. The use case starts automatically after boot (no host command required).

Verification Checklist

1. Host enumerates both CDC and HID mouse interfaces.

2. Logger shows normal app startup (no USB init errors).

3. No Video Streamer interaction is required to start the app.

4. Palm movement moves host cursor.

5. Four fingers performs left click.

6. Pinch gesture performs right click.

7. Fist gesture performs double click.

8. Holding fist for 3 seconds toggles drag mode ON/OFF.

9. With drag mode ON, palm movement drags (left button held).

10. With no hand in frame, cursor does not drift and no click is generated.

Tunable Parameters

The following are app-local Kconfig parameters in this app:

• CONFIG_APP_GM_ACTION_CONFIDENCE_THRESHOLD_X100

• CONFIG_APP_GM_STABLE_FRAME_COUNT

• CONFIG_APP_GM_CURSOR_DEADZONE

• CONFIG_APP_GM_CURSOR_SPEED_PERCENT

• CONFIG_APP_GM_CURSOR_SMOOTHING_ALPHA_X100

• CONFIG_APP_GM_MAX_DELTA_PER_REPORT

• CONFIG_APP_GM_REPORT_INTERVAL_MS

• CONFIG_APP_GM_CLICK_COOLDOWN_MS

• CONFIG_APP_GM_DOUBLE_CLICK_GAP_MS

• CONFIG_APP_GM_NO_HAND_TIMEOUT_MS
